Removal and Installation

REMOVAL







1. REMOVE THESE PARTS:
a. Center console cover
b. Center cluster finish panel
c. A/C control knobs
d. A/C switch
e. A/C control panel
f. Glove compartment parts
g. Instrument lower finish panel

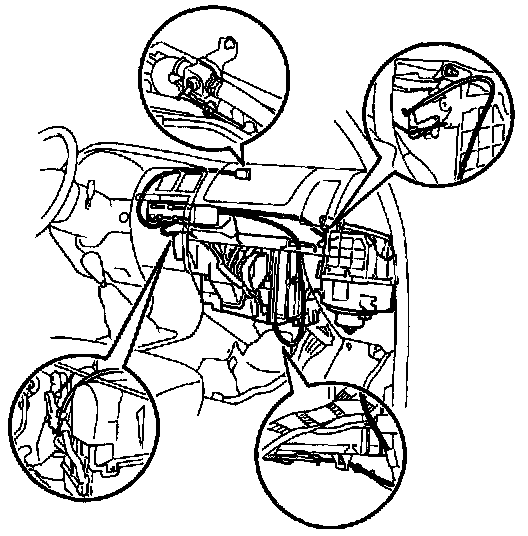

2. DISCONNECT A/C CONTROL CABLES
a. Disconnect the air inlet control cable from blower unit.
b. Disconnect the air mix control cable from heater unit.
c. Disconnect the mode control cable from heater unit.
d. Disconnect the water valve control cable from water valve.

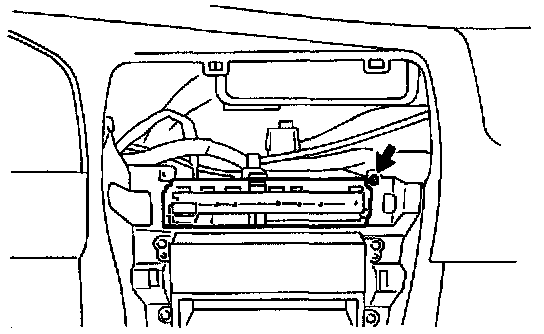

3. REMOVE A/C CONTROL ASSEMBLY
Remove the screw and pull out the A/C control assembly, then disconnect the connector.

INSTALLATION
Installation is in the reverse order of removal.

HINT: If cable's adjustment is in need, refer to "ADJUSTMENT". A/C Control Assembly
