Keyless Entry - Programming Remote Transmitters: Overview

ELECTRICAL
EL003-99

Title:
PROGRAMMING OEM WIRELESS DOOR LOCK REMOTE TRANSMITTERS

Models:
'95 - '99 Avalon XLS

April 30, 1999

Introduction

This bulletin describes procedures that are used to program the three or four button remote transmitter to Avalons that are equipped with Wireless Door Lock Control.

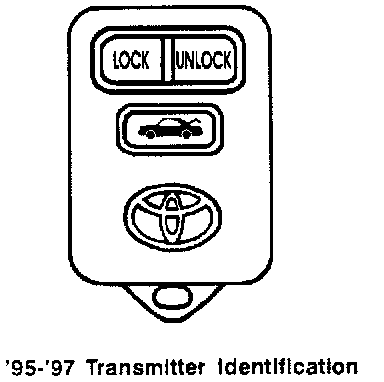

^ The 1995-97 Transmitter has LOCK, UNLOCK, and TRUNK features.

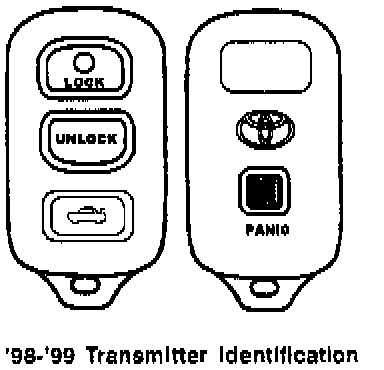

^ The 1998-99 Transmitter has LOCK, UNLOCK, TRUNK and PANIC features.

NOTE:
When a new remote is programmed, all previous codes are erased. Because of this, all remotes should be entered during the same programming session, otherwise a remote may no longer be registered and operate the vehicle.

For Customer Satisfaction, request that any existing remote(s) be furnished when programming a new or replacement unit.

Affected Vehicles
^ 1995 - 1999 Avalon XLS

NOTE:
Wireless Door Lock Control is standard on the XLS and not available on the LE.





Warranty Information
