Programming Procedure For '95-'97 Models

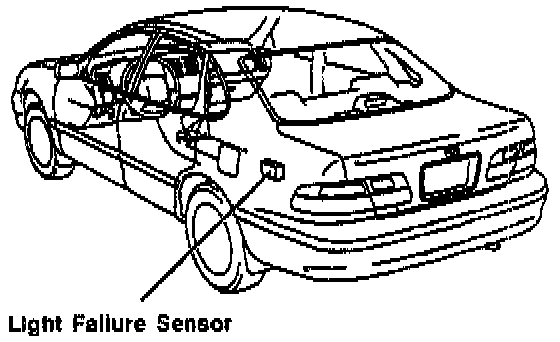

The PRG (Program) circuit of the Wireless Door Lock ECU is grounded to perform programming. This can be accomplished at a satellite location, the Light Failure Sensor, located in the trunk near the left hinge.

NOTE:
Up to two remotes can be programmed to operate each vehicle.





1. With the key OUT of the ignition switch, locate and disconnect the Light Failure Sensor from the vehicle harness.

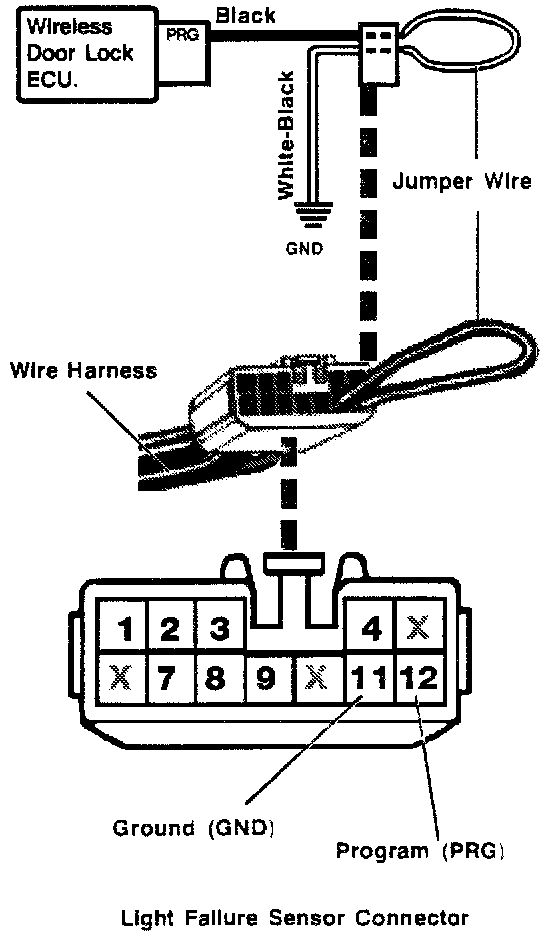

2. Using a suitable jumper wire, connect terminal number 12, PRG (black) to terminal number 11, GND (white/black) of the 12 cavity Light Failure Sensor connector (illustrated). The vehicle confirms programming mode by cycling the power door locks (lock-unlock) once in addition to activating the trunk opener motor to unlock.

3. Depress, then release, any button on the remote. The vehicle confirms registration by cycling the power door locks (lock-unlock) once again.

4. To program an additional remote, repeat step 3.

5. Disconnect the jumper wire to exit programming mode.
