Seat

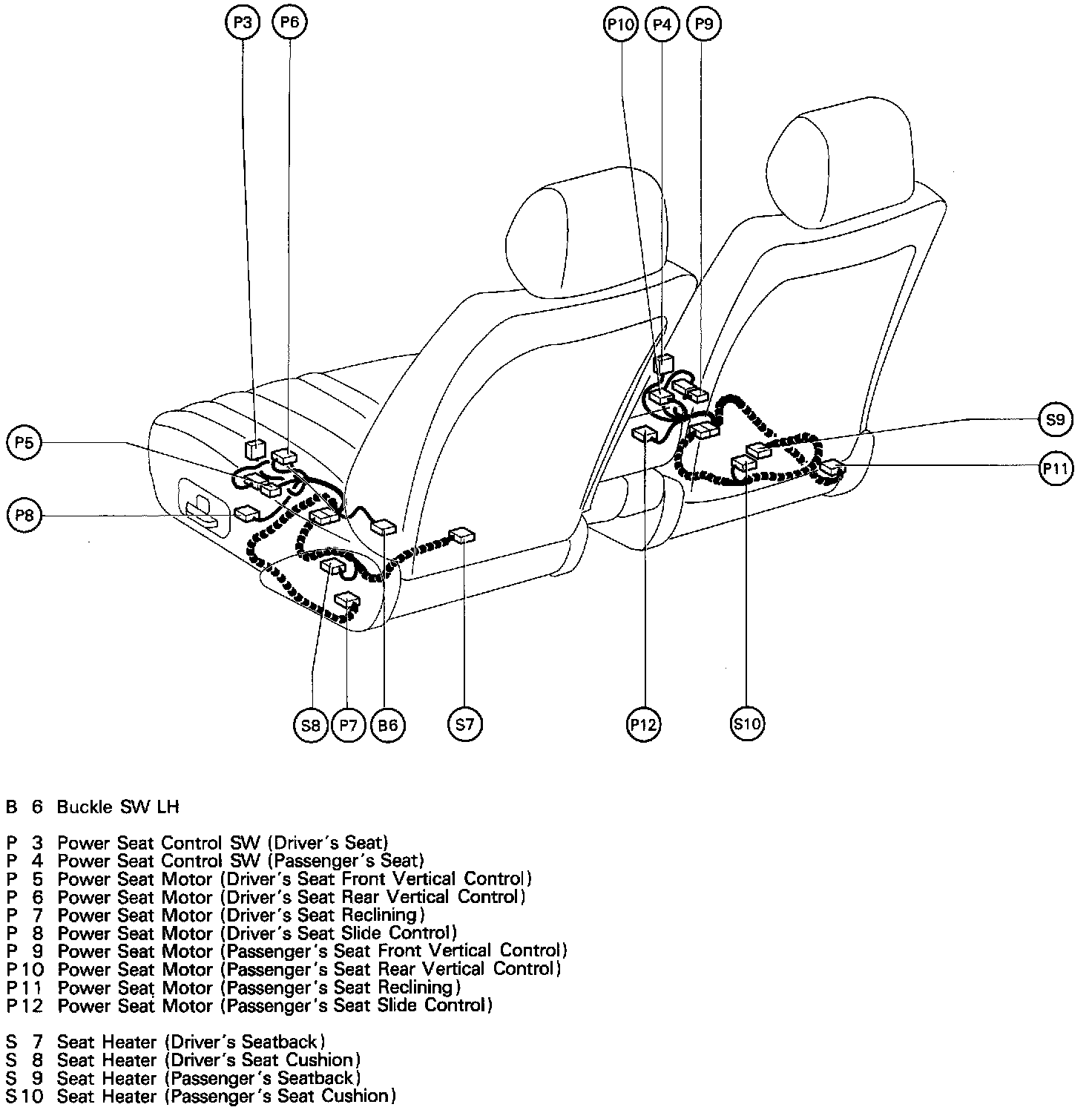

Position Of Parts In Seat (Fig 38):

B 6 Buckle SW LH

P 3 Power Seat Control SW (Driver's Seat)
P 4 Power Seat Control SW (Passenger's Seat)
P 5 Power Seat Motor (Driver's Seat Front Vertical Control)
P 6 Power Seat Motor (Driver's Seat Rear Vertical Control)
P 7 Power Seat Motor (Driver's Seat Reclining)
P 8 Power Seat Motor (Driver's Seat Slide Control)
P 9 Power Seat Motor (Passenger's Seat Front Vertical Control)
P10 Power Seat Motor (Passenger's Seat Rear Vertical Control)
P11 Power Seat Motor (Passenger's Seat Reclining)
P12 Power Seat Motor (Passenger's Seat Slide Control)

S 7 Seat Heater (Driver's Seatback)
S 8 Seat Heater (Driver's Seat Cushion)
S 9 Seat Heater (Passenger's Seatback)
S10 Seat Heater (Passenger's Seat Cushion)
