Air Flow Meter/Sensor: Service and Repair
MAF METER REMOVAL 1.

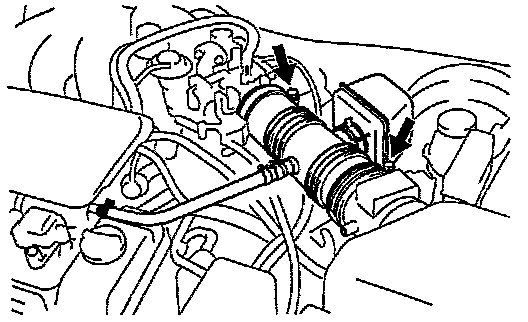

REMOVE AIR CLEANER HOSE
-
Disconnect the PCV hose.
-
Loosen the 2 hose clamps, and remove the air cleaner hose.
2.

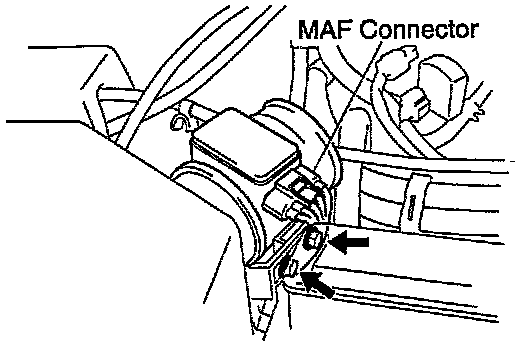

REMOVE MAF METER
-
Disconnect the MAF meter connector.
-
Remove the 2 bolts and MAF meter.
Torque: 6.9 Nm (61 in.lb) INSTALLATION HINT: Installation is in the reverse order of removal.
