O/D Cancel Signal Circuit
O/D CANCEL SIGNAL CIRCUIT DESCRIPTION While driving uphill with cruise control activated, in order to minimize gear shifting and provide smooth cruising, overdrive may be prohibited temporarily in some conditions.
The Cruise control ECU sends O/D cut signals to ECM as necessary and ECM cancels overdrive shifting until these signals are discontinued.

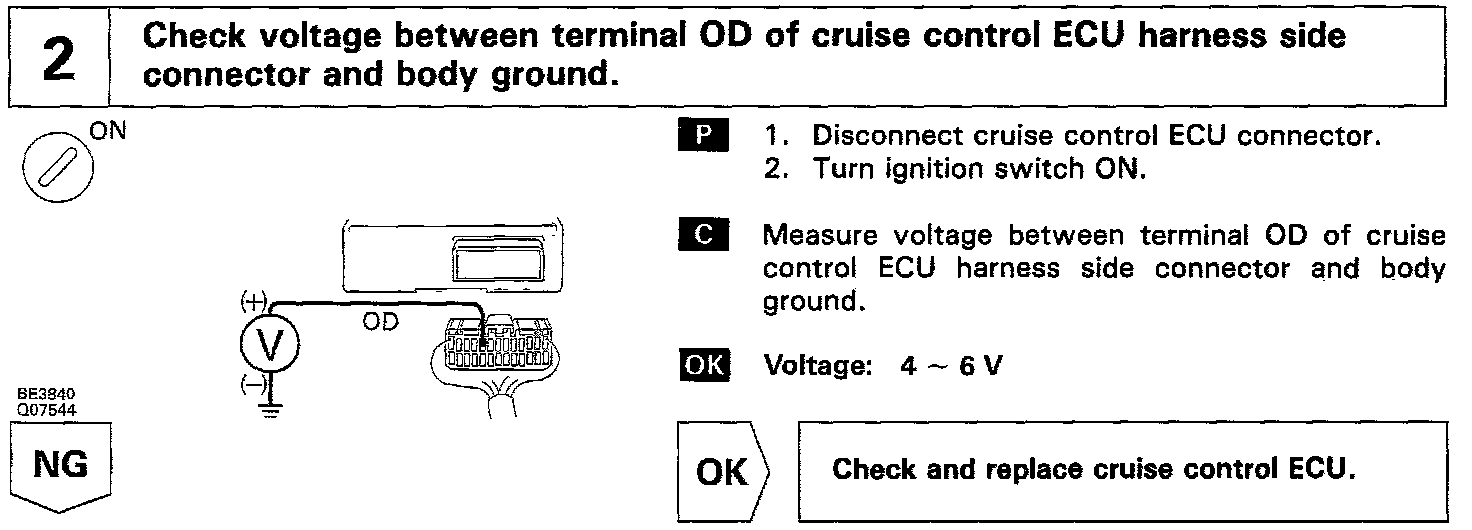

WIRING DIAGRAM INSPECTION PROCEDURE
