System Specifications

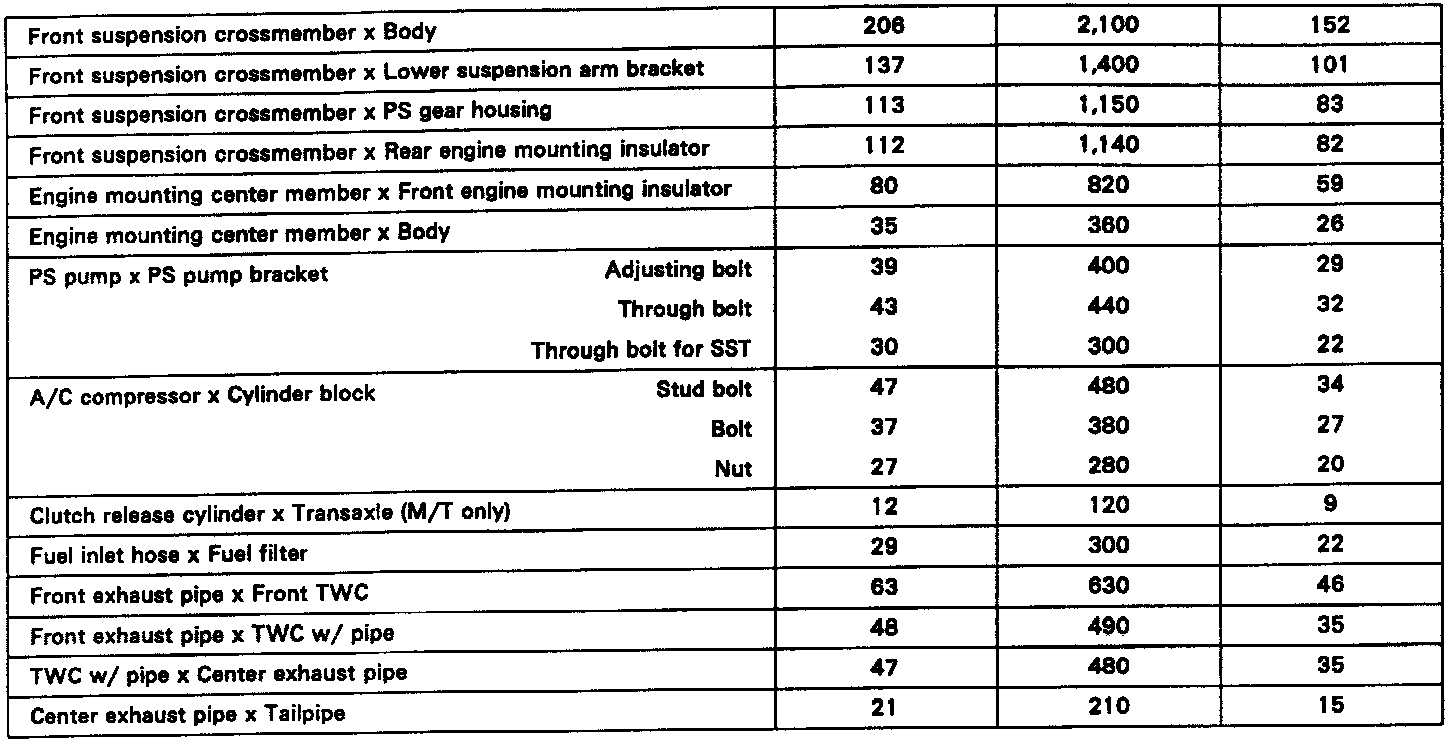

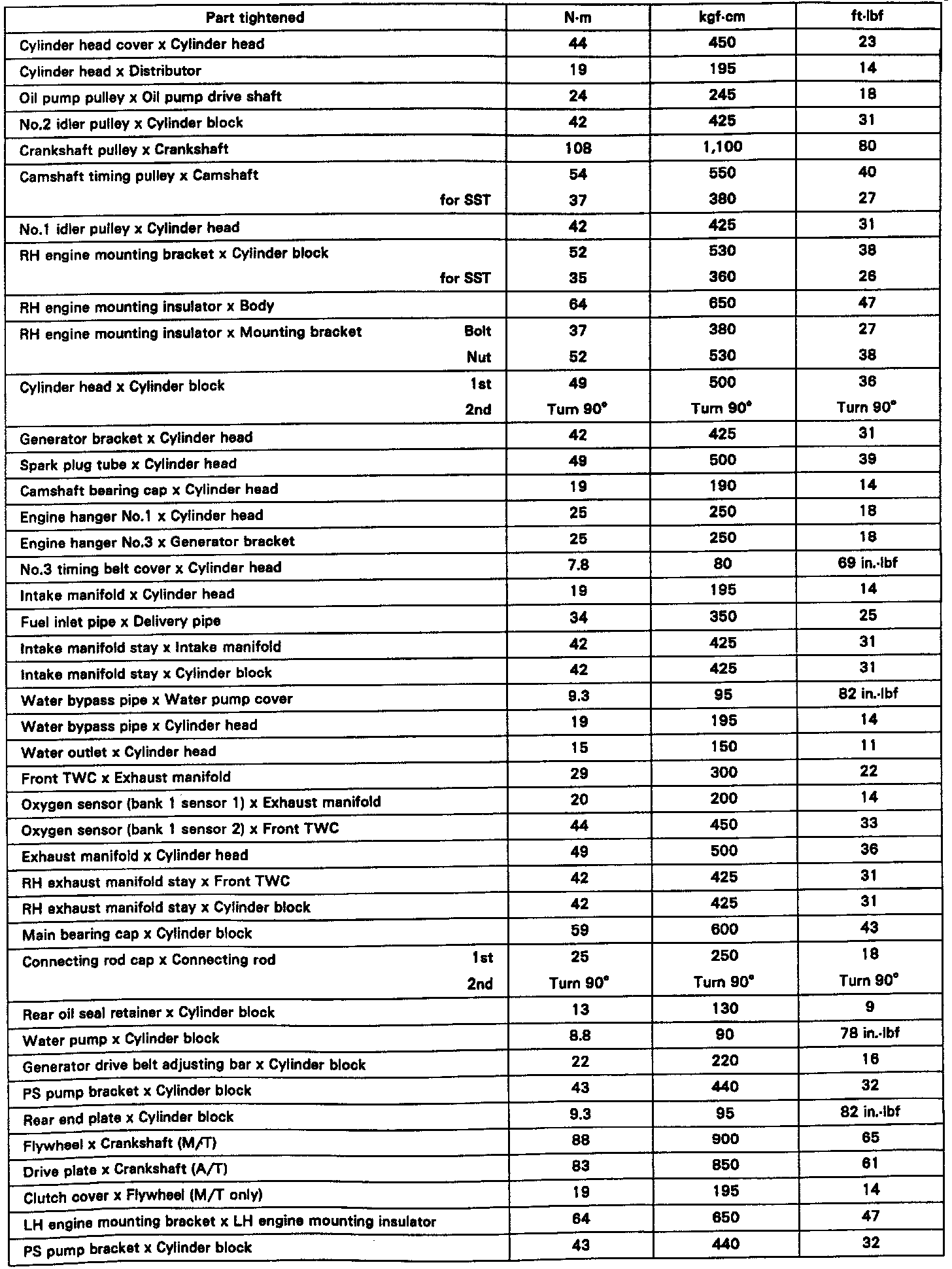

TORQUE CHART

TORQUE SEQUENCES

Camshaft Bearing Cap Removal and Installation Sequences
Proper removal and installation procedures are essential to camshaft durability and to avoid damage. Refer to Cylinder Head Assembly; Service and Repair for detailed camshaft removal and installation procedures.

Cylinder Head Bolt Removal Sequence

Cylinder Head Bolt Tightening Sequence

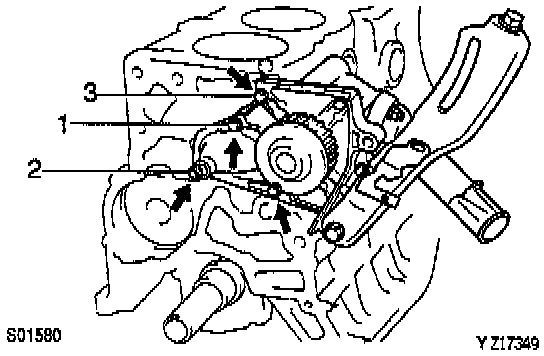

Water Pump Bolts Removal Sequence

Water Pump Bolts Tightening Sequence

Main Bearing Cap Bolts Removal Sequence

Main Bearing Cap Bolts Tightening Sequence

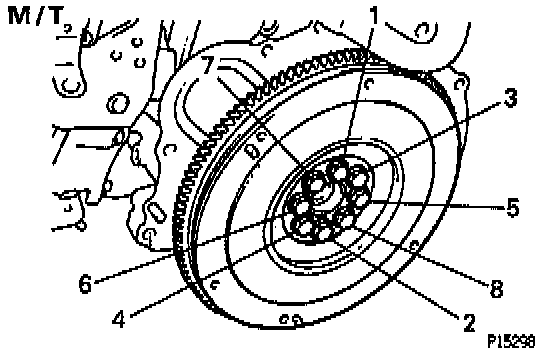

Flywheel Bolt Tightening Sequence

Manual Transmission, Flywheel Bolt Installation:

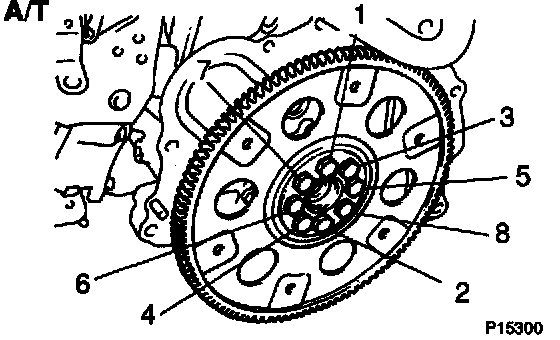

Drive Plate Bolt Tightening Sequence

Sequence:

See also: Refer to Diagrams/Exploded Views at component level.
