Body

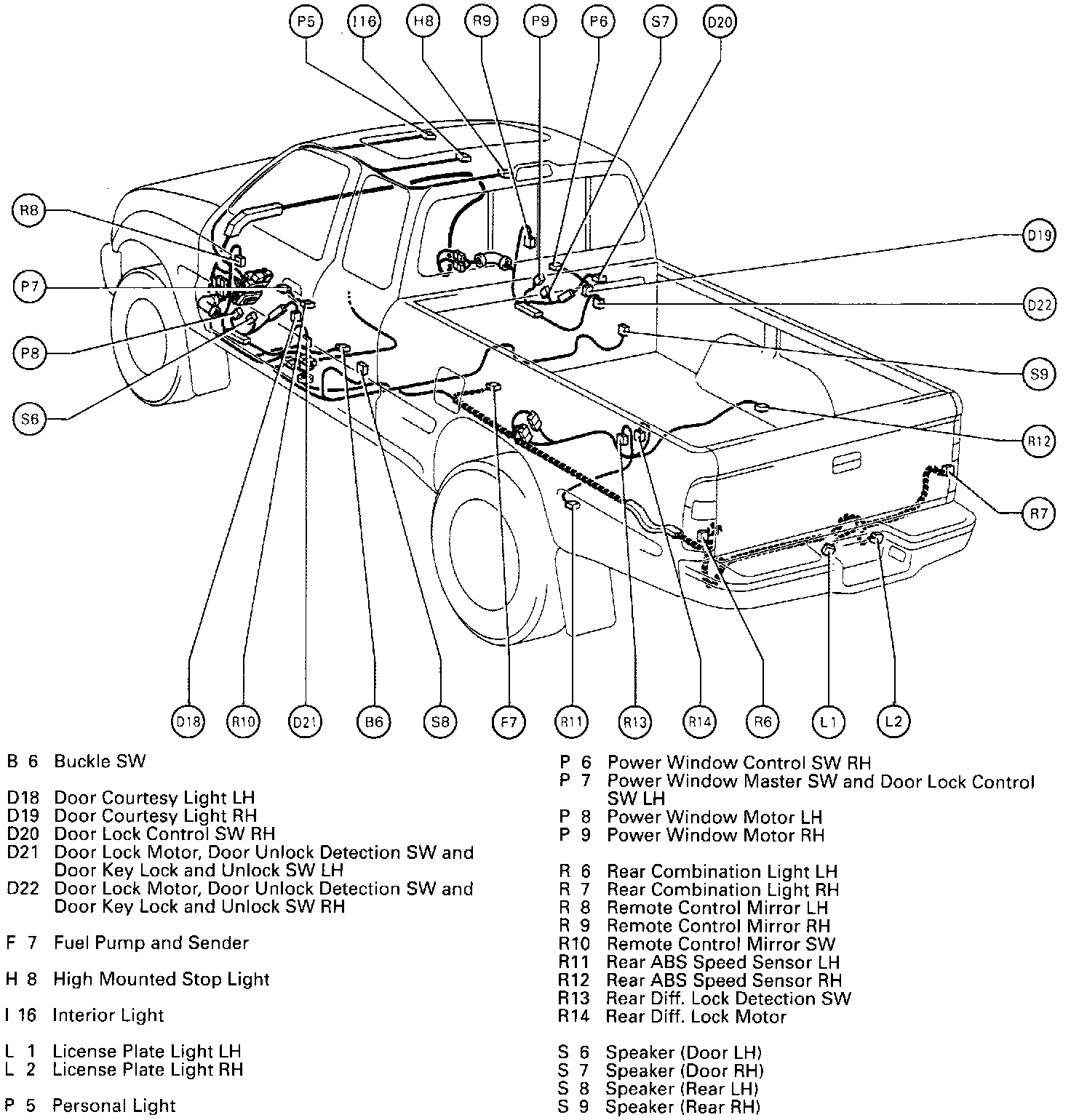

Position Of Parts In Body (Fig 30):

B 6 Buckle SW

D18 Door Courtesy Light LH
D19 Door Courtesy Light RH
D20 Door Lock Control SW RH
D21 Door Lock Motor, Door Unlock Detection SW and Door Key Lock and Unlock SW LH
D22 Door Lock Motor, Door Unlock Detection SW and Door Key Lock and Unlock SW RH

F 7 Fuel Pump and Sender

H 8 High Mounted Stop Light

I16 Interior Light

L 1 License Plate Light LH
L 2 License Plate Light RH

P 5 Personal Light
P 6 Power Window Control SW RH
P 7 Power Window Master SW and Door Lock Control SW LH
P 8 Power Window Motor LH
P 9 Power Window Motor RH

R 6 Rear Combination Light LH
R 7 Rear Combination Light RH
R 8 Remote Control Mirror LH
R 9 Remote Control Mirror RH
R10 Remote Control Mirror SW
R11 Rear ABS Speed Sensor LH
R12 Rear ABS Speed Sensor RH
R13 Rear Diff. Lock Detection SW
R14 Rear Diff. Lock Motor

S 6 Speaker (Door LH)
S 7 Speaker (Door RH)
S 8 Speaker (Rear LH)
S 9 Speaker (Rear RH)
