Crankshaft Position Sensor: Service and Repair
REMOVAL1. REMOVE ENGINE UNDER COVER.
2. REMOVE GENERATOR.
3. REMOVE GENERATOR BRACKET.

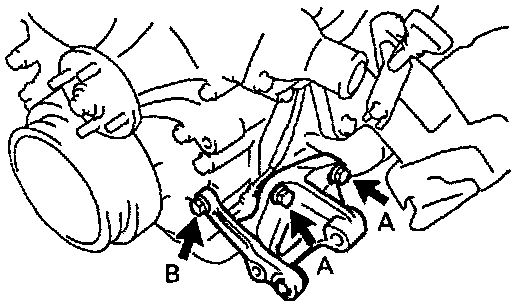

- Remove the 3 bolts and bracket.
Torque:
Bolt A: 74.5 Nm (55 ft lb)
Bolt B: 18 Nm (13 ft lb)
4. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR.

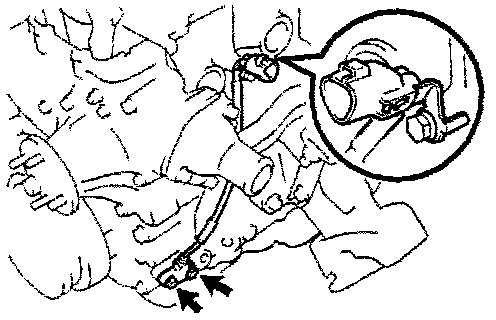

5. REMOVE CRANKSHAFT POSITION SENSOR.
- Remove the 2 bolts and crankshaft position sensor.
Torque: 8.5 Nm (74 in lb)
- Remove the O-ring.
CRANK SHAFT POSITION SENSOR INSTALLATION
INSTALLATION HINT: Installation is in the reverse order of removal.
