Engine Control Module: Service and Repair
1.
REMOVE GLOVE COMPARTMENT DOOR.
2.
REMOVE LOWER FINISH NO.2 PANEL.
3.

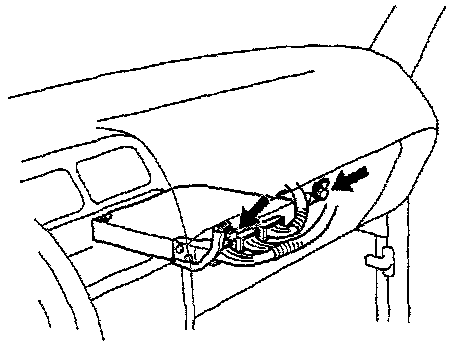

REMOVE ECM.
-
2RZ-FE, 3RZ-FE M/T:
Disconnect the 3 ECM connectors.
-
3RZ-FE A/T:
Disconnect the 4 ECM connectors.
-
Remove the 2 bolts and ECM.
INSTALLATION HINT: Installation is in the reverse order of removal.
