Tightening Specifications

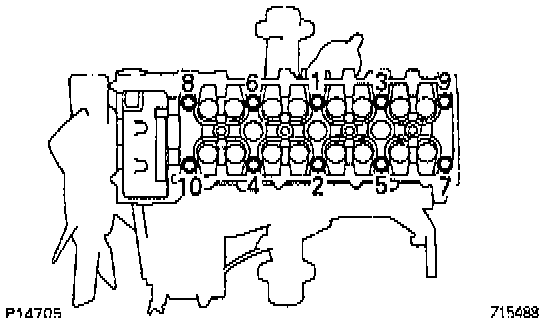

Cylinder Head Bolt Tightening Sequence
Tightening Specifications
1st Pass 39 Nm (29 ft. lbs.)
2nd Pass + 90°
3rd Pass + 90°

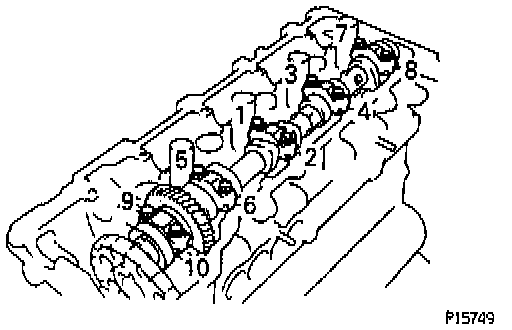

Intake Camshaft Bearing Cap Tightening Sequence
Torque 15.5 Nm (12 ft. lbs.)

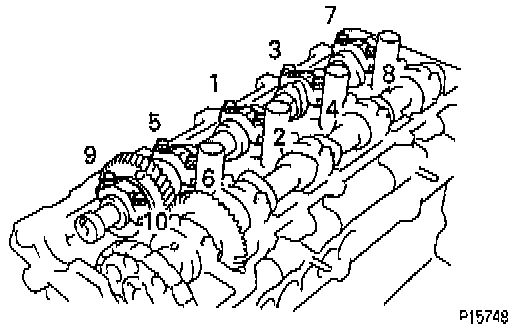

Exhaust Camshaft Bearing Cap Tightening Sequence
Torque 15.5 Nm (12 ft. lbs.)
Exhaust Manifold
Torque 48 N-m (500 kgf-cm, 36ft-lbf)
Intake Manifold
Torque 29 N-m (300 kgf-cm, 22 ft-lbf)
Camshaft Timing Gear Bolt
Torque 73.5 N-m (750 kgf
