Ground Locations

Ground Points:

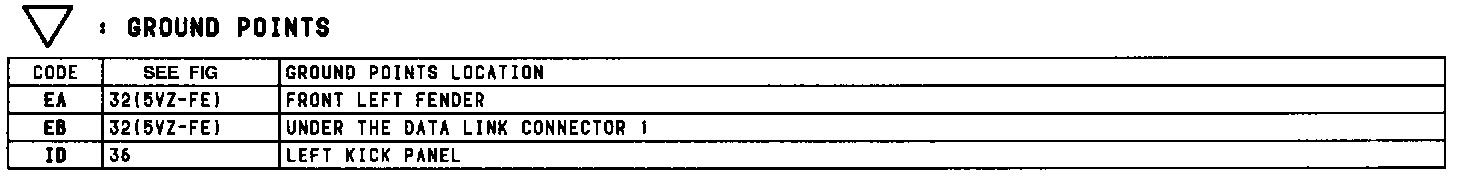

GROUND POINTS

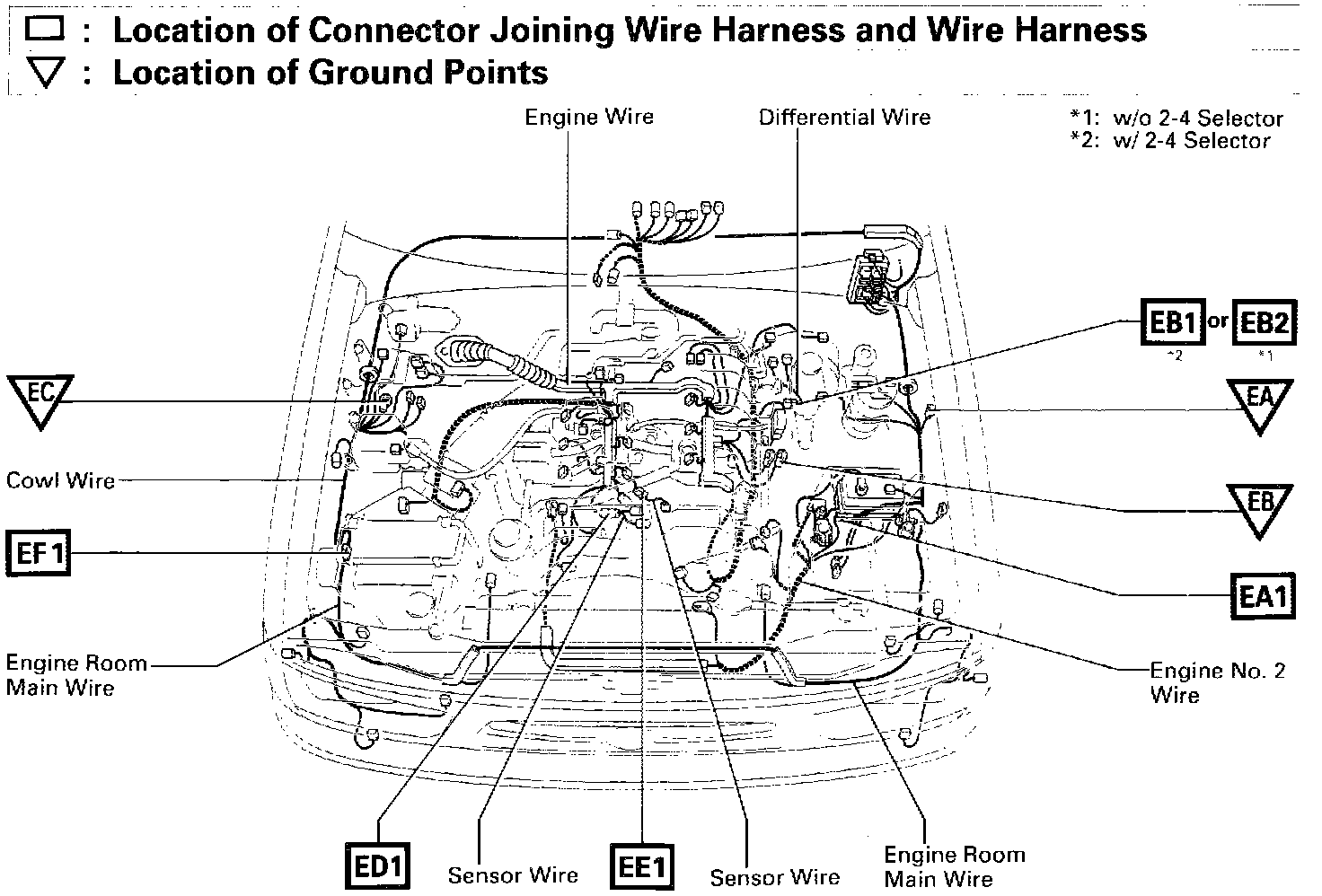

Location Of Connector Joining Wire Harness And Wire Harness, Ground Points (Fig 32):

FIG 32

Location Of Connector Joining Wire Harness And Wire Harness, Ground Points (Fig 36):

FIG 36
