Control Assembly: Adjustments

A/C CONTROL ASSEMBLY ADJUSTMENT (Manual A/C)

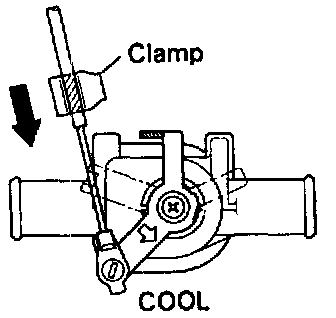

1. ADJUST WATER VALVE CONTROL CABLE
a. Set the temperature control dial to "COOL".







b. Set the water valve lever to "COOL", install the control cable and lock the clamp.

HINT: Lock the clamp while lightly pushing the outer cable in the direction shown by arrow.

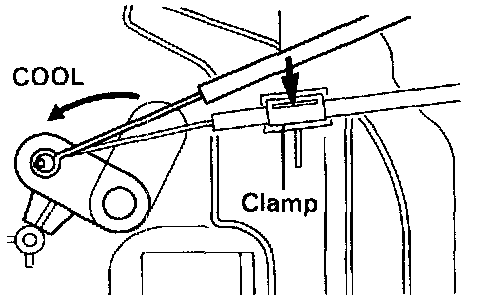

2. ADJUST AIR MIX DAMPER CONTROL CABLE
Set the air mix damper and control dial to COOL posit ion. install the control cable and lock the clamp. After installing the control cable, when setting the temperature control dial to "MAX HOT", check that there is a damper sound.
