Manual A/C

A/C CONTROL ASSEMBLY REMOVAL (Manual A/C)


1. REMOVE THESE PARTS:
a. Instrument lower finish panel.
b. Instrument center cluster panel.

2. REMOVE A/C CONTROL ASSEMBLY

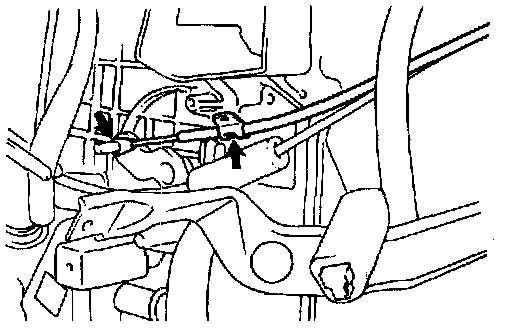

a. Disconnect the water valve control cable.







b. Disconnect the air mix damper control cable.
c. Disconnect the connectors.







d. Remove the 4 screws and A/C control lower panel.
e. Remove the 4 screws and A/C control upper panel with the radio.







3. REMOVE A/C CONTROL UPPER PANEL
Remove the 6 bolts and the A/C control upper panel from the radio.

A/C CONTROL ASSEMBLY INSTALLATION
Installation is in the reverse order of removal.
