CONTROL ASSEMBLY INSPECTION (Manual A/C)

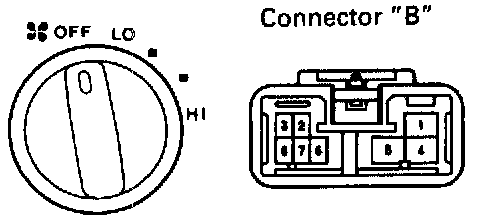

1. INSPECT BLOWER SPEED CONTROL SWITCH CONTINUITY

If continuity is not as specified. replace the switch.

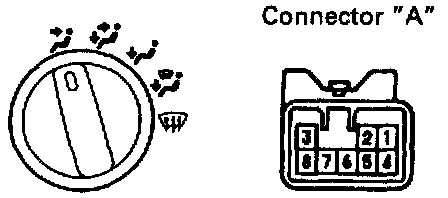

2. INSPECT MODE CONTROL SWITCH CONTINUITY

If continuity is not as specified. replace the switch.

3. INSPECT A/C INDICATOR







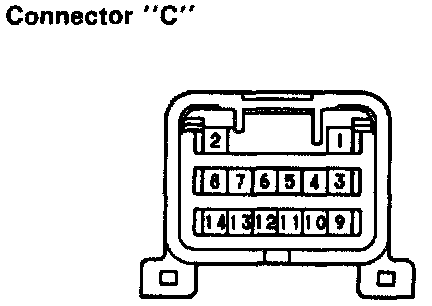

a. Connect the positive (+) lead from the battery to terminal C-1 and the negative (-) lead to terminal C-2.
b. Push the A/C button in and check that the indicator light up.

If operation is not as specified, replace the A/C control upper panel.

4. INSPECT AIR INLET INDICATOR

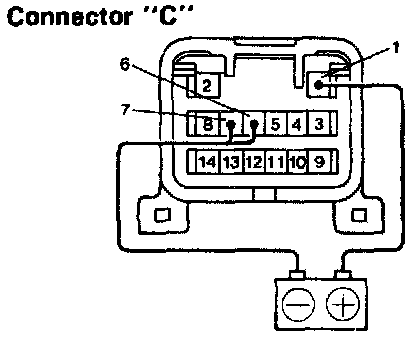

a. Connect the positive (+) lead from the battery to terminal C-1 and the negative (-) lead to terminal C-6 and C-7.
b. Check that the FRESH and RECIRC indicators lights up alternately each time the air inlet control switch button is pressed.

If operation is not as specified, replace the A/C control upper panel.










5. INSPECT A/C SWITCH CONTINUITY

If continuity is not as specified, replace the A/C control upper panel.

6. INSPECT INDICATOR DIMMING OPERATION

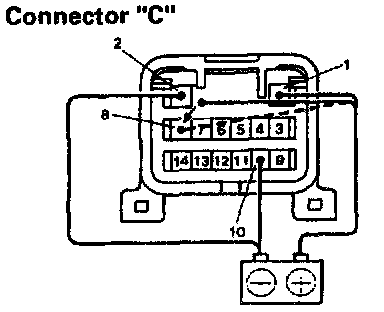

a. Connect the positive (+) lead from the battery to terminal C-1 and the negative (-) lead to terminal C-2 and C-10.
b. Connect the positive (+) lead from the battery terminal C-8 and check that the mode indicator dims. If operation is not as specified, replace the A/C control upper panel.
