EGR Control Solenoid: Service and Repair

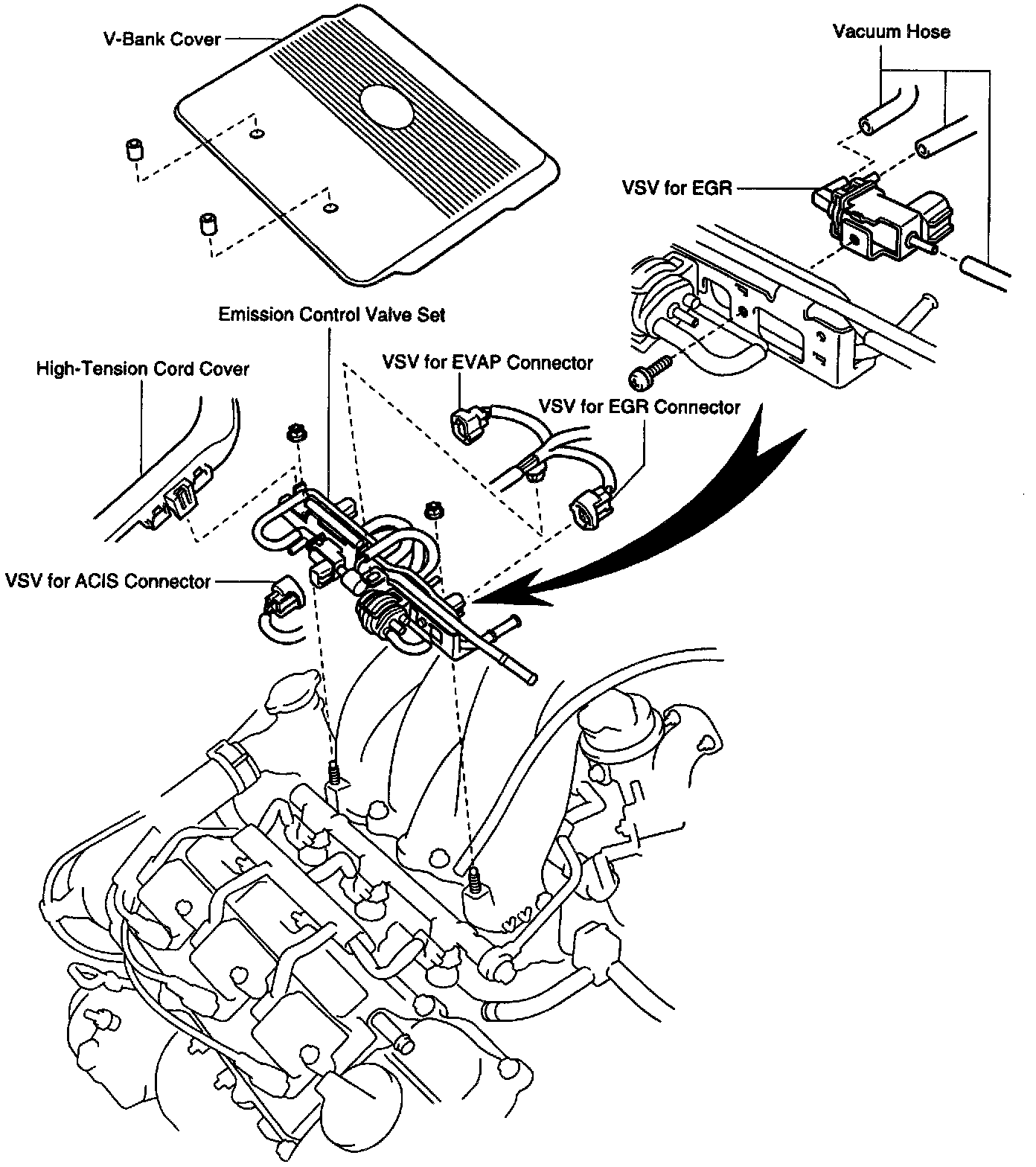

COMPONENTS FOR REMOVAL AND INSTALLATION

EGR CONTROL SOLENOID (VSV FOR EGR) REMOVAL

1. REMOVE V-BANK COVER AND EMISSION CONTROL VALVE SET AND HIGH-TENSION CORD COVER
2. REMOVE VSV
(a) Disconnect the 3 vacuum hoses from the VSV.
(b) Remove the screw and VSV.

EGR CONTROL SOLENOID (VSV FOR EGR) INSTALLATION

1. REINSTALL VSV
(a) Install the VSV with the screw.
(b) Connect the 3 vacuum hoses to the VSV.
2. REINSTALL EMISSION CONTROL VALVE SET
3. REINSTALL HIGH-TENSION CORD COVER
4. REINSTALL V-BANK COVER
