Ignition Lock: Service and Repair

STEERING COLUMN KEY CYLINDER

INSPECTION

1. Inspect steering lock operation. Check that the steering lock mechanism operates properly.

2. If necessary, replace key cylinder.

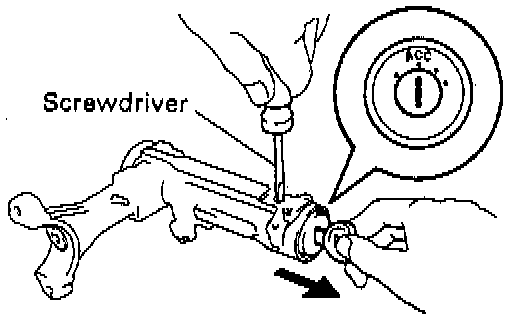

a. Place the ignition key at the ACC position.
b. Push down the stop pin with a thin rod, and pull out the key cylinder.
c. Install a new key cylinder.

For Steering Column disassembly, Refer to Steering and Suspension / Steering / Steering Column / Steering Column
