Neutral Safety Switch: Testing and Inspection

PARK / NEUTRAL POSITION SWITCH

CIRCUIT DESCRIPTION
When the shift position is put in except D position, a signal is sent from the park/neutral position switch to the ECU. When this signal is input during cruise control driving, the ECU cancels the cruise control.

Park / Neutral Position Switch Circuit:

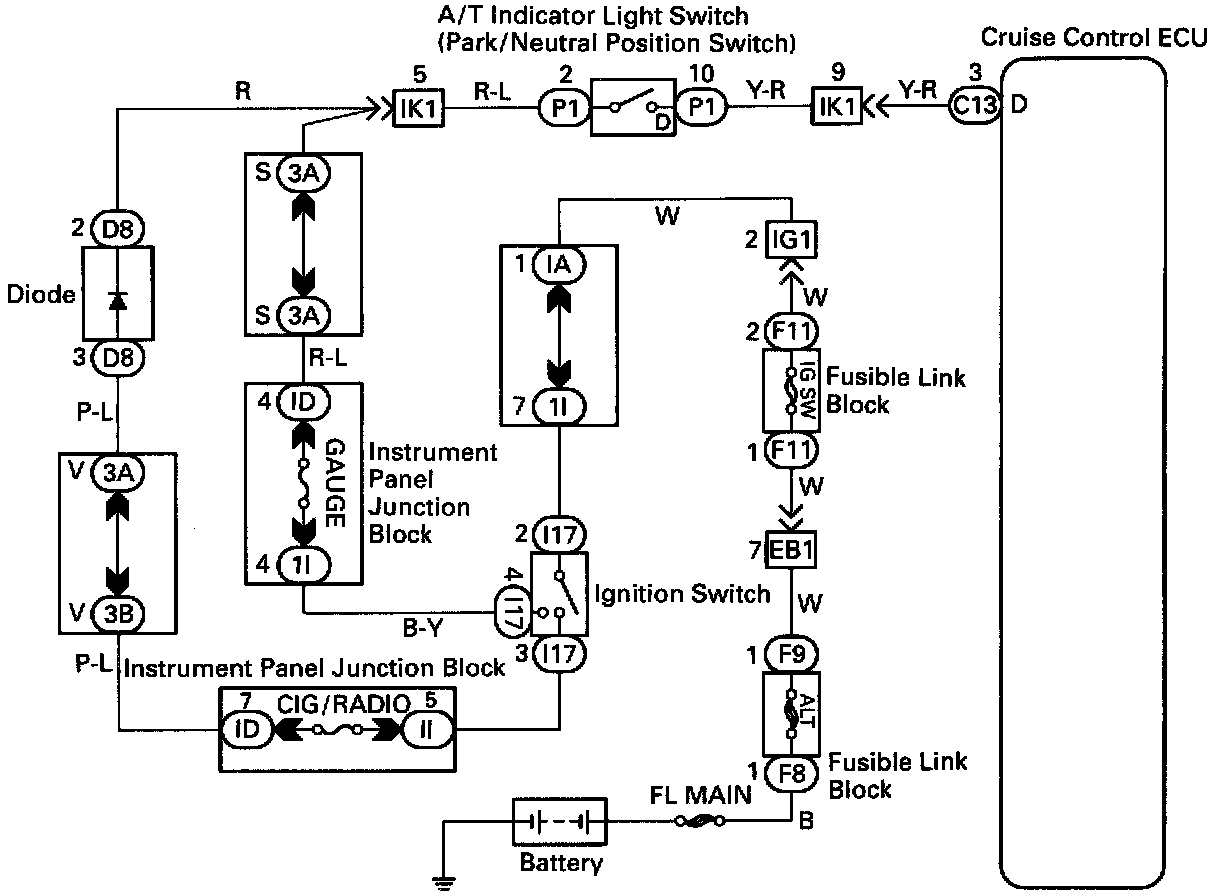

WIRING DIAGRAM

Inspection Procedure / Park / Neutral Position Switch Circuit (1 Of 4):

Inspection Procedure / Park / Neutral Position Switch Circuit (2 Of 4):

Inspection Procedure / Park / Neutral Position Switch Circuit (3 Of 4):

Inspection Procedure / Park / Neutral Position Switch Circuit (4 Of 4):

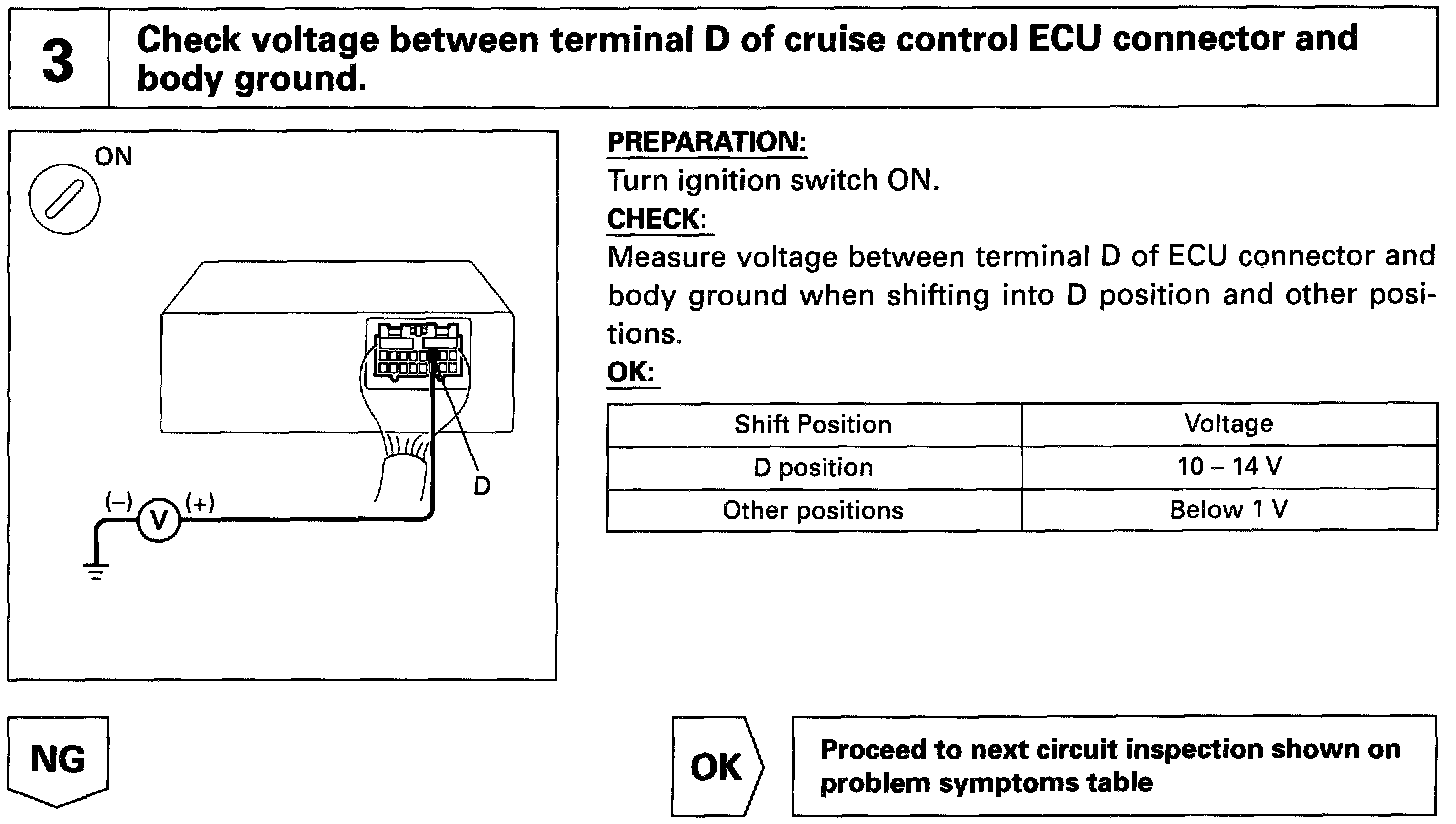

INSPECTION PROCEDURE
