Engine Control Module

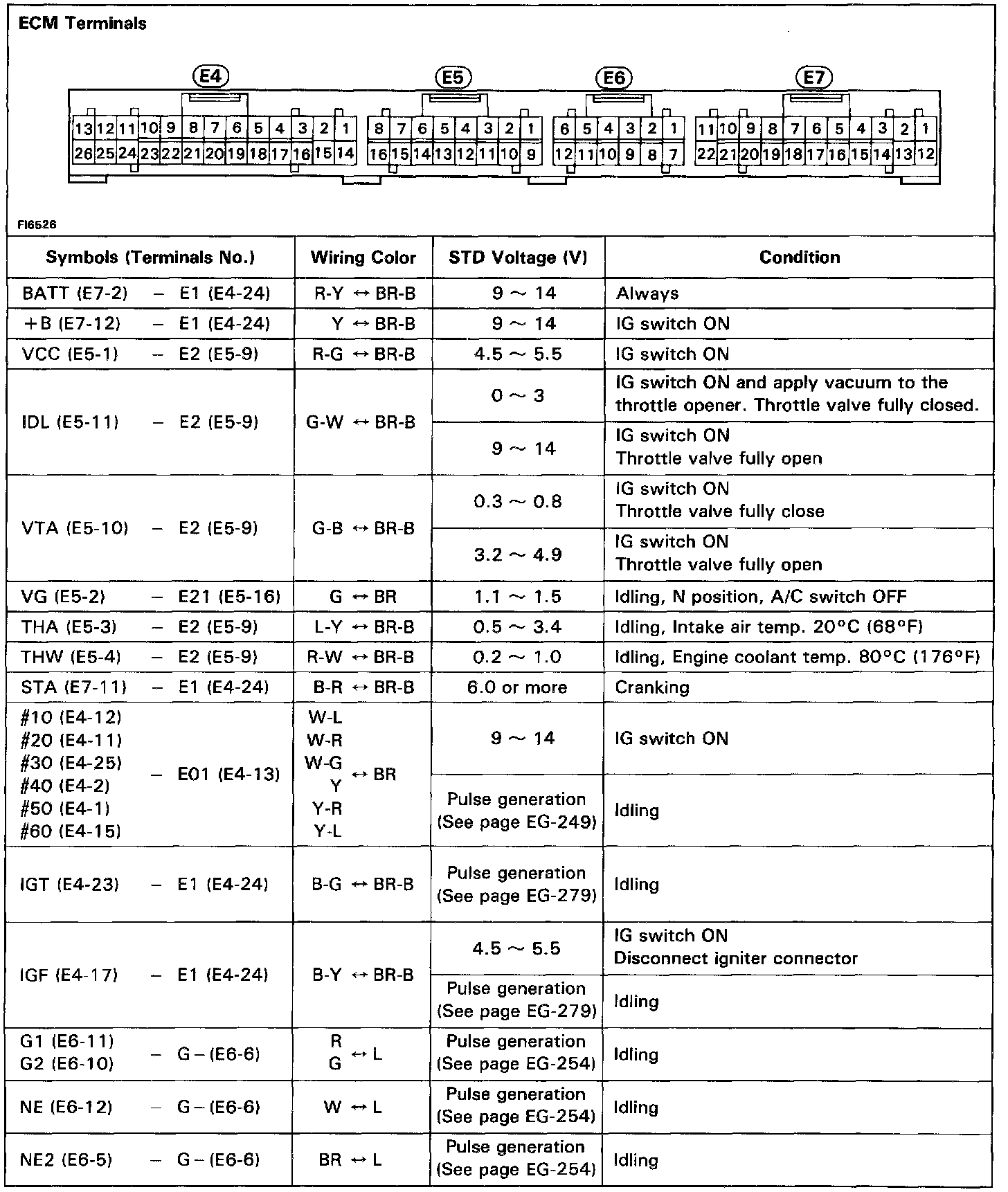

ECM Terminal Values Chart 1 Of 2:

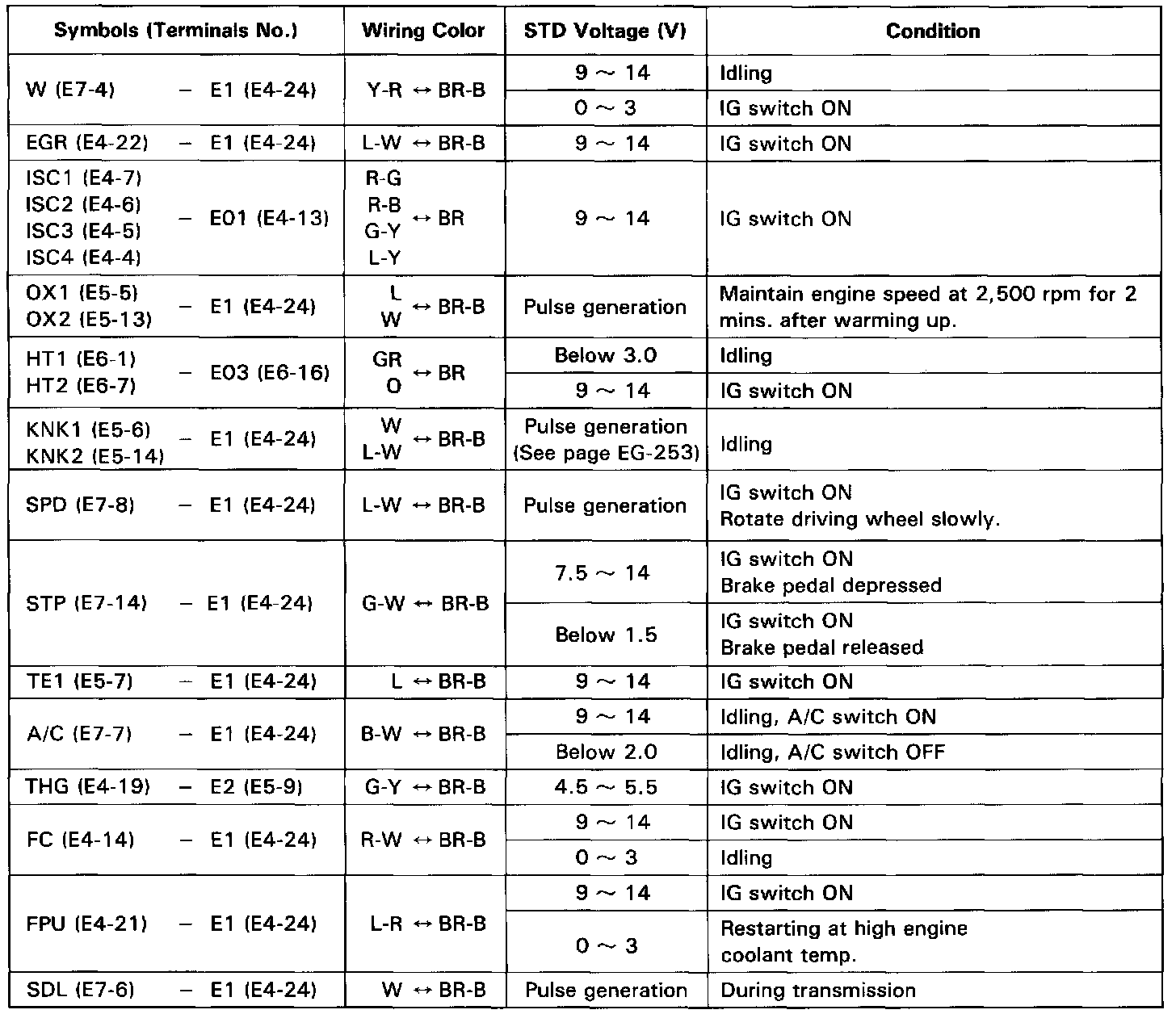

ECM Terminal Values Chart Part 2 Of 2:
ECM TERMINAL STANDARD VALUESWhen measuring the voltage or resistance of the connector part of the ECM, always insert the test probe into the connector from the wire harness side.
