Air Flow Meter/Sensor: Service and Repair






COMPONENTS FOR REMOVAL AND INSTALLATION

MASS AIR FLOW (MAF) METER REMOVAL

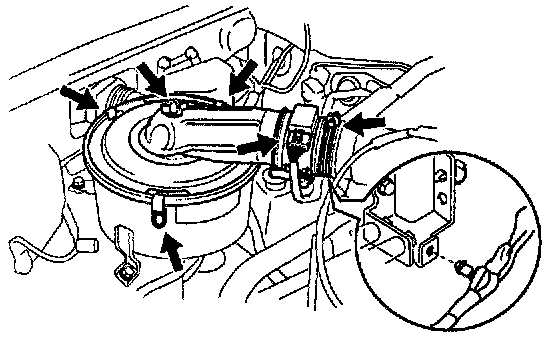

1. Remove air cleaner cap and MAF meter.
(a) Disconnect the MAF meter connector and wire clamp.
(b) Disconnect the cruise control actuator cable.
(c) Loosen the air cleaner hose clamp.
(d) Disconnect the 3 clips and remove the wing nut, air cleaner cap and MAF meter.

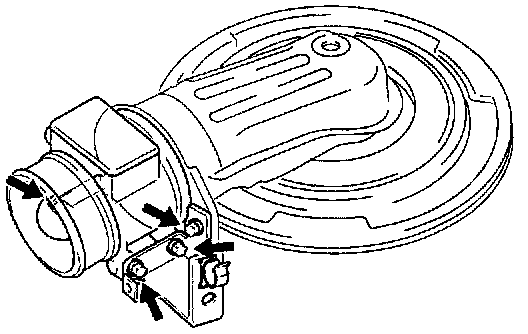

2. Remove MAF meter.
Remove the 4 bolts. bracket and MAF meter.

Torque: 6.9 N.m (70 kgf.cm, 61 in..lbf)

MASS AIR FLOW METER (MAF) METER INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
