O/D Main Switch & O/D Off Indicator Light Circuit

O/D Main Switch & O/D Off Indicator Light Circuit

CIRCUIT DESCRIPTION
The O/D main switch contacts go off when the switch is pushed in and come on when it is pushed once again.
In O/D main switch OFF position, the O/D OFF indicator lights up, and the ECM prohibits shifting to over-drive.

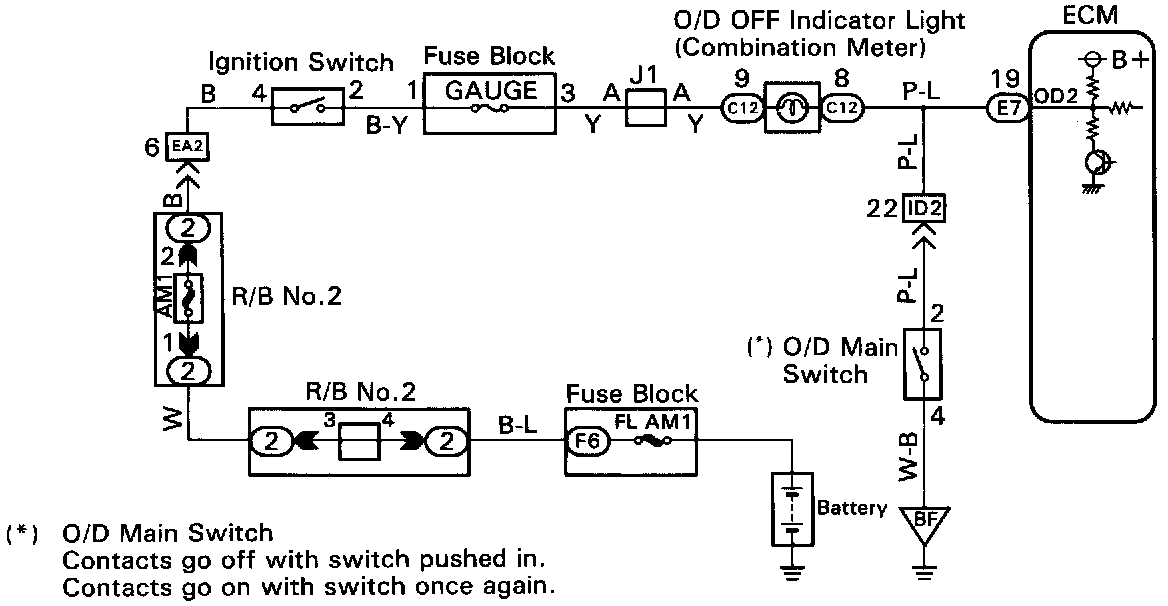

WIRING DIAGRAM

INSPECTION PROCEDURE

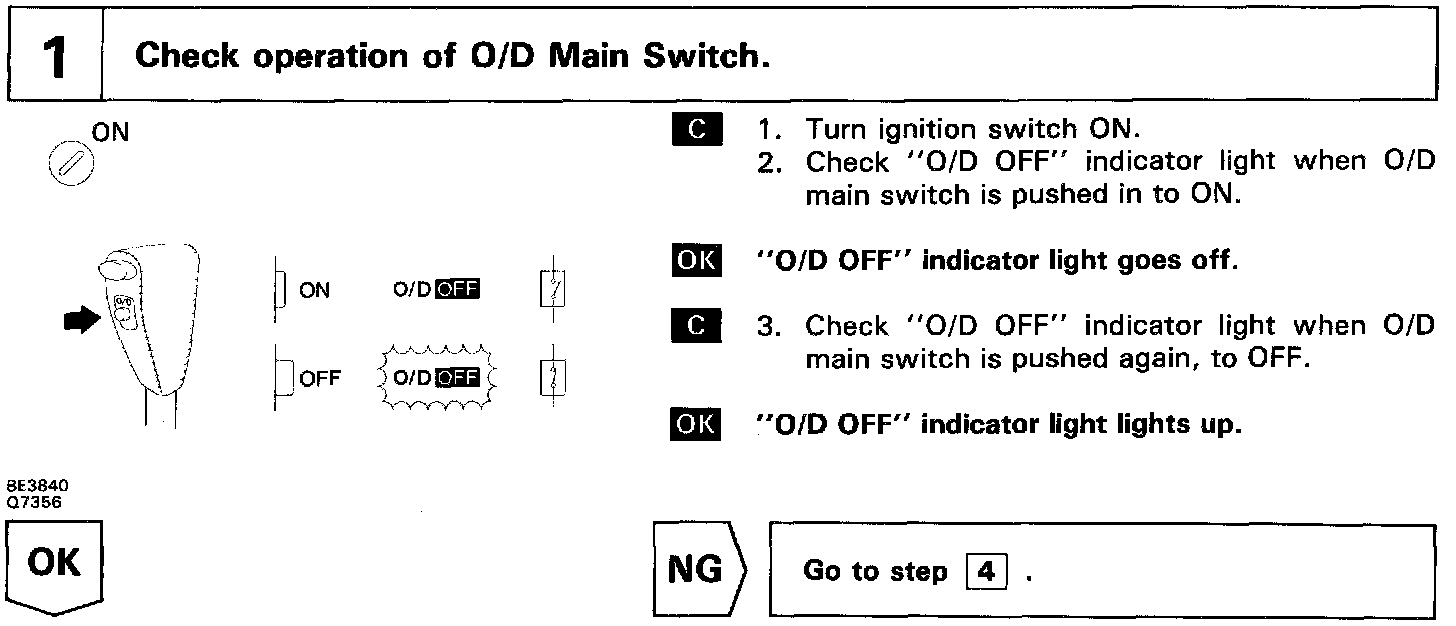

Step 1:

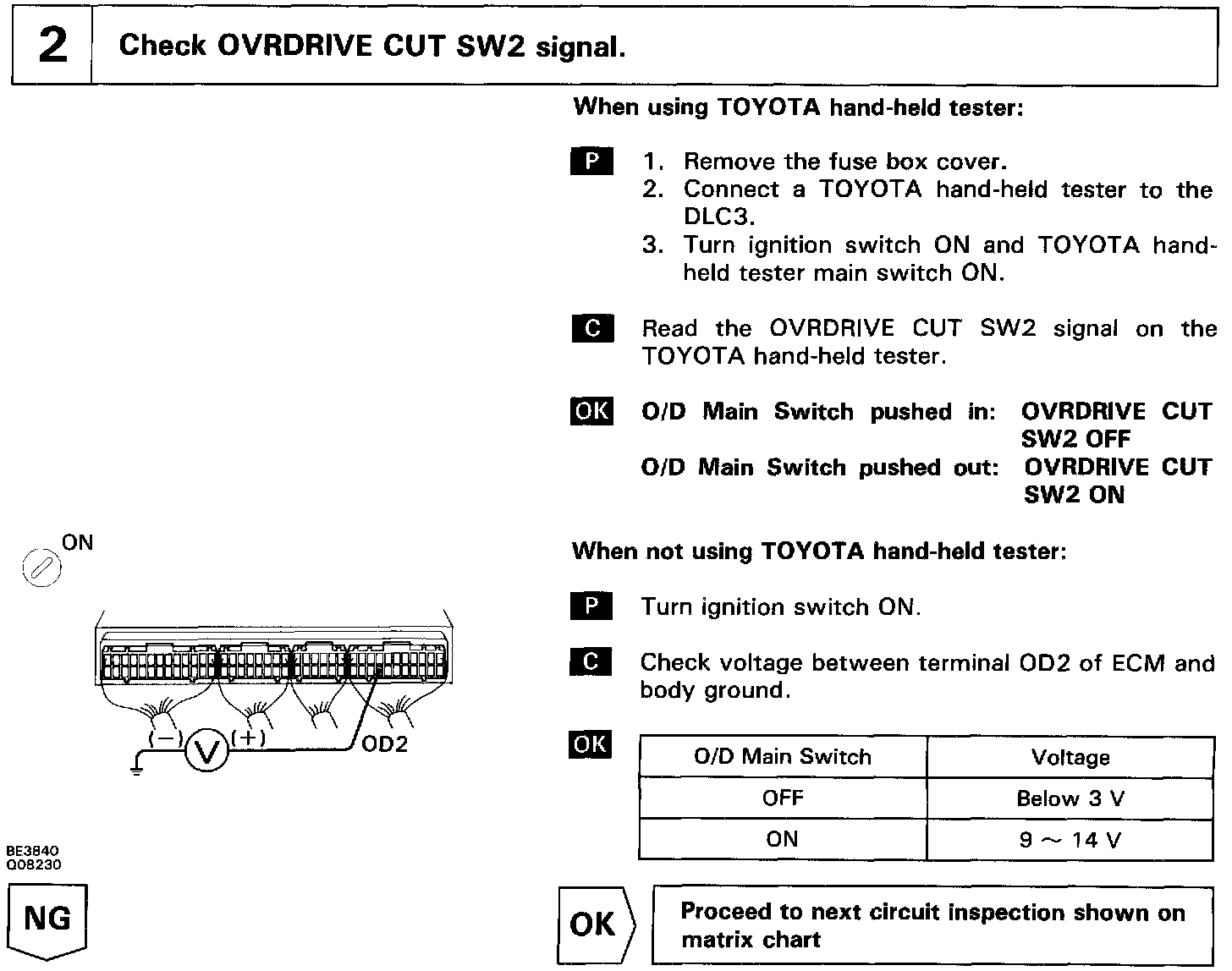

Step 2:

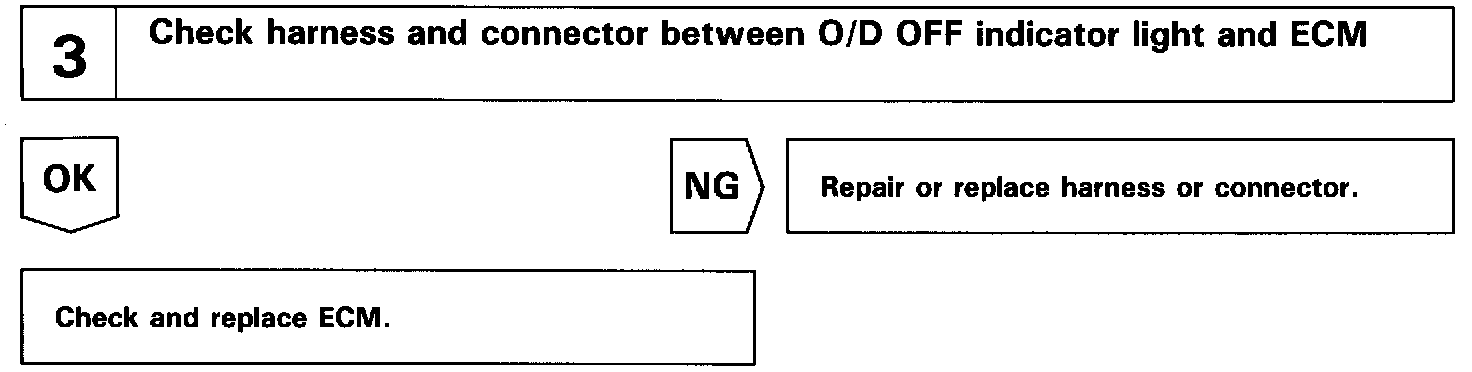

Step 3:

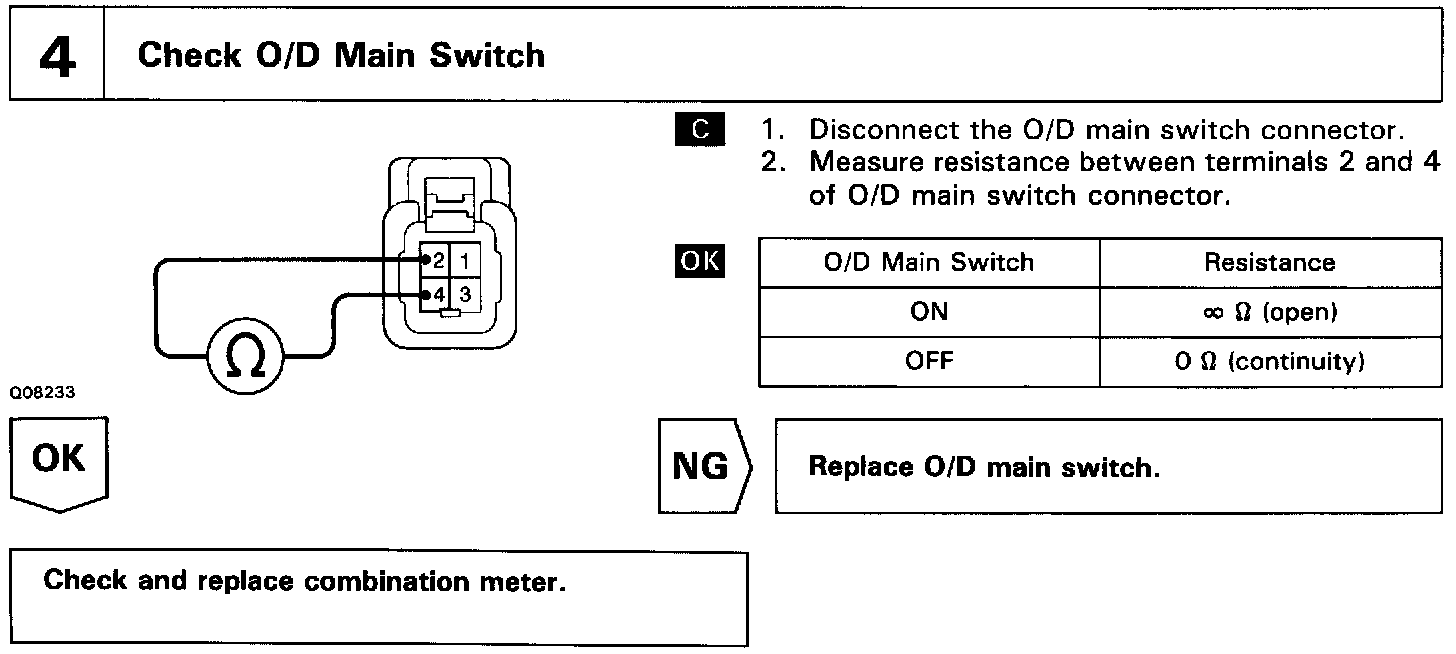

Step 4:

O/D OFF indicator light does not light up.

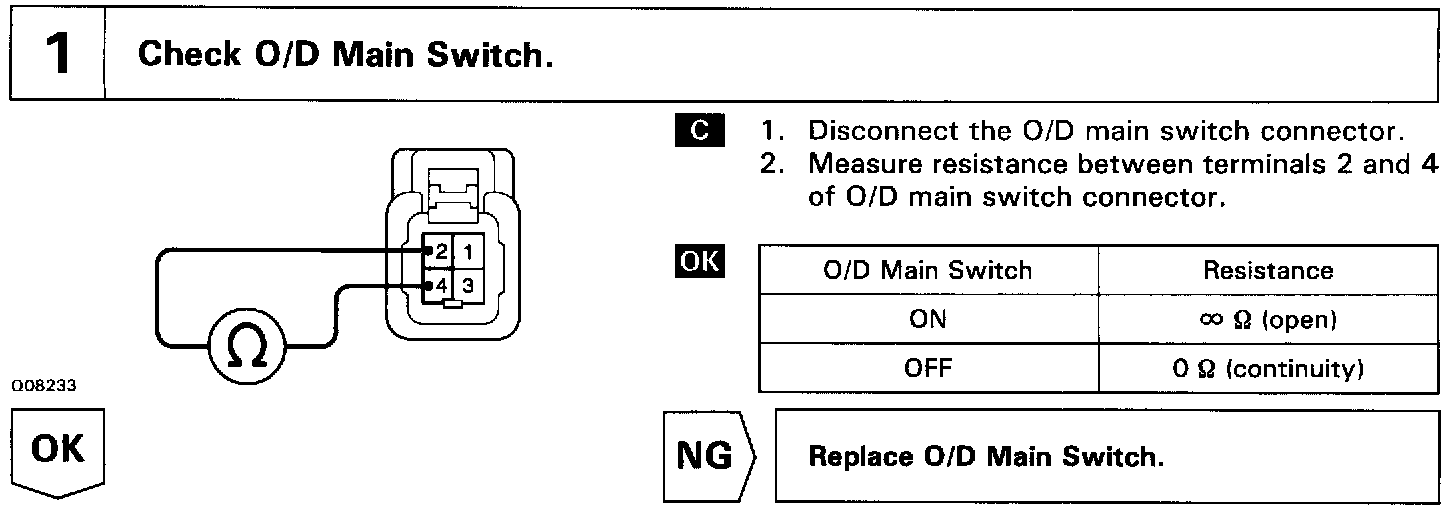

Step 1:

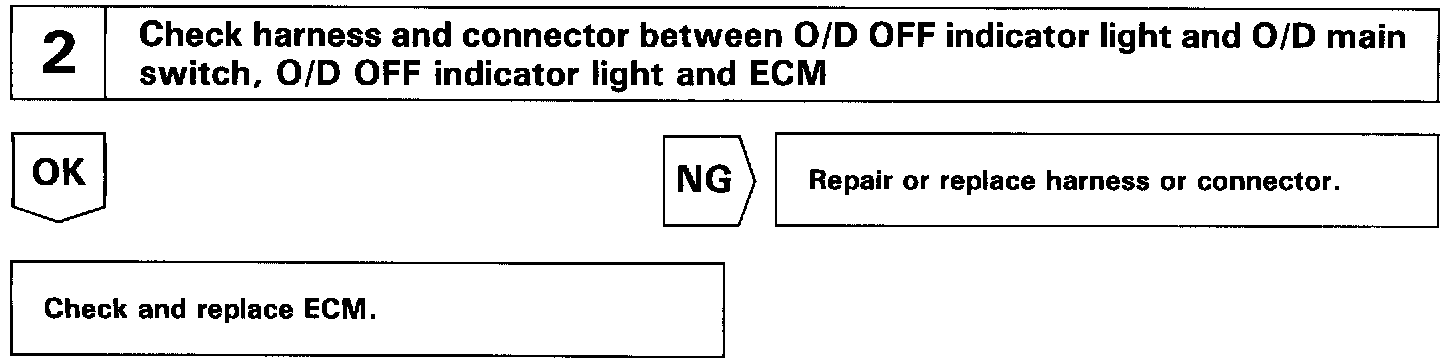

Step 2:

O/D OFF indicator light remains ON
