Rear Defogger: Service and Repair

DEFOGGER WIRE REPAIR

1. Clean the broken wire tips with a grease, wax and silicone remover.

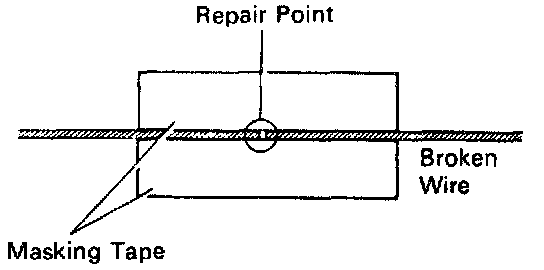

2. Place the masking tape along both sides of the wire to be repaired.

3. Thoroughly mix the repair agent (DuPont paste No. 4817 or equivalent).

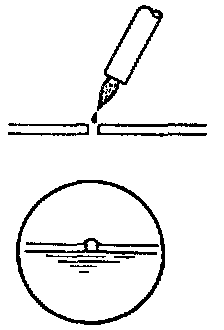

4. Using a fine tip brush, apply a small amount to the wire.
5. After a few minutes, remove the masking tape.
6. Do not repair the defogger wire for at least 24 hours.
