Power Window Switch / Master Switch

POWER WINDOW MASTER SWITCH INSPECTION

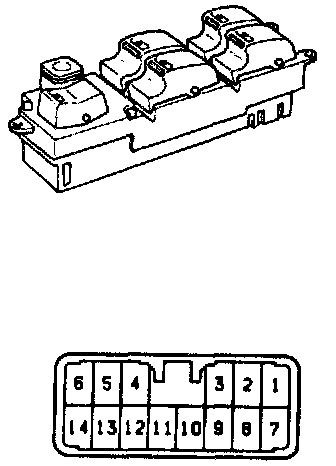

1. INSPECT SWITCH CONTINUITY

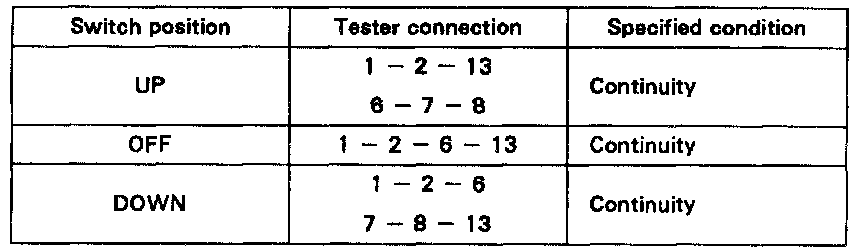

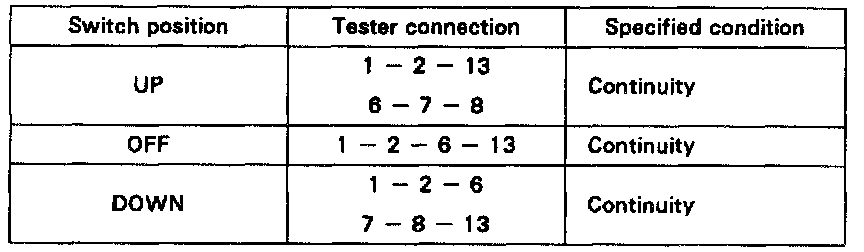

Front Driver's Switch (Window unlock)

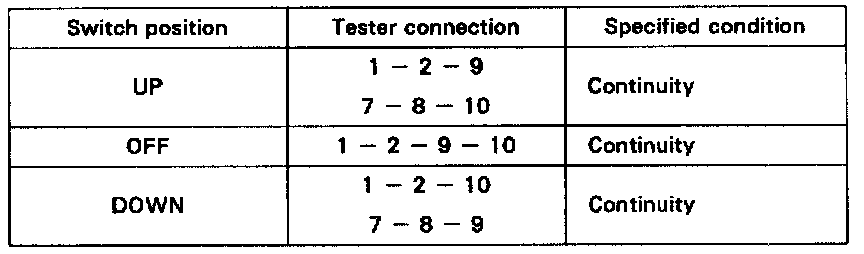

Front Driver's Switch (Window lock)

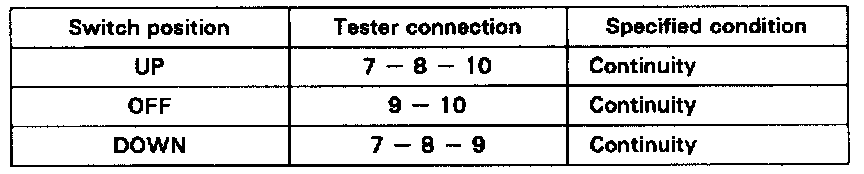

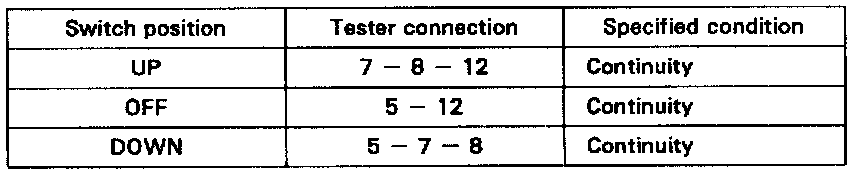

Front Passengers' Switch (Window unlock)

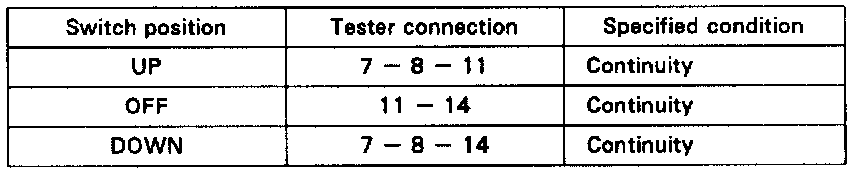

Front Passengers' Switch (Window lock)

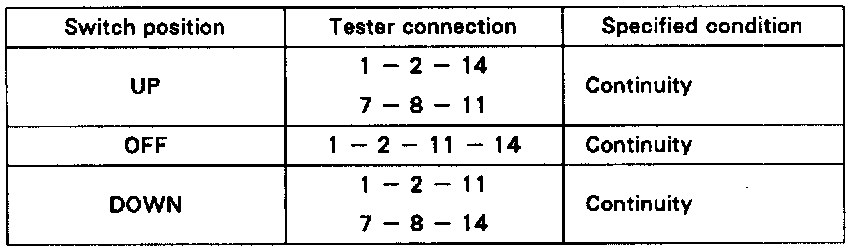

Rear Left Switch (Window unlock)










Rear Left Switch (Window lock)

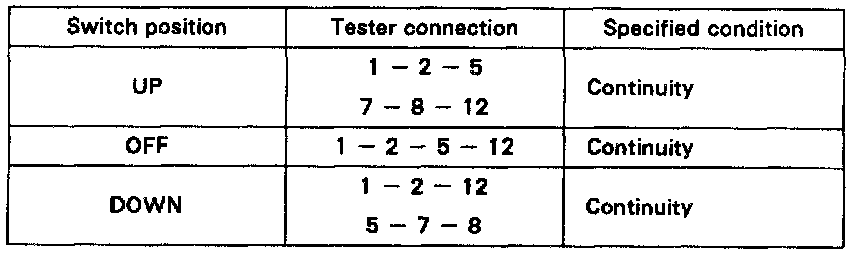

Rear Right Switch (Window unlock)










Rear Right Switch (Window lock)

If continuity is not as specified, replace the master switch.


2. INSPECT SWITCH ILLUMINATION







a. Set the window lock switch to the unlock position.

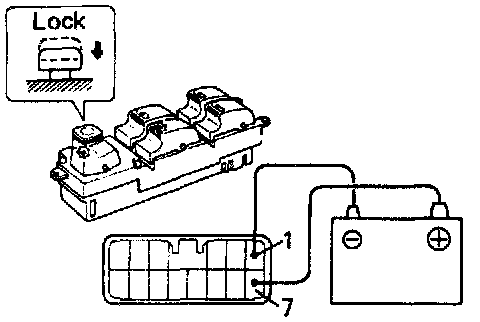

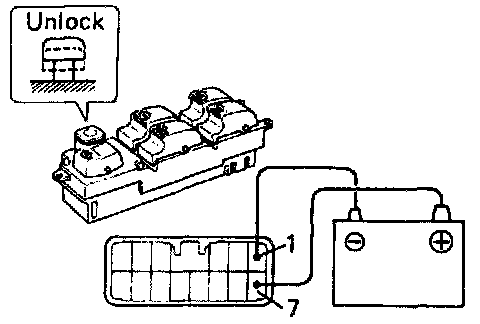

b. Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 1, and check that all the illuminations light up.







c. Set the window lock switch to the lock position, and check that all the passenger's power window switch illuminations go out.

If operation is not as specified, replace the master switch.
