Bank 1 Sensor 2

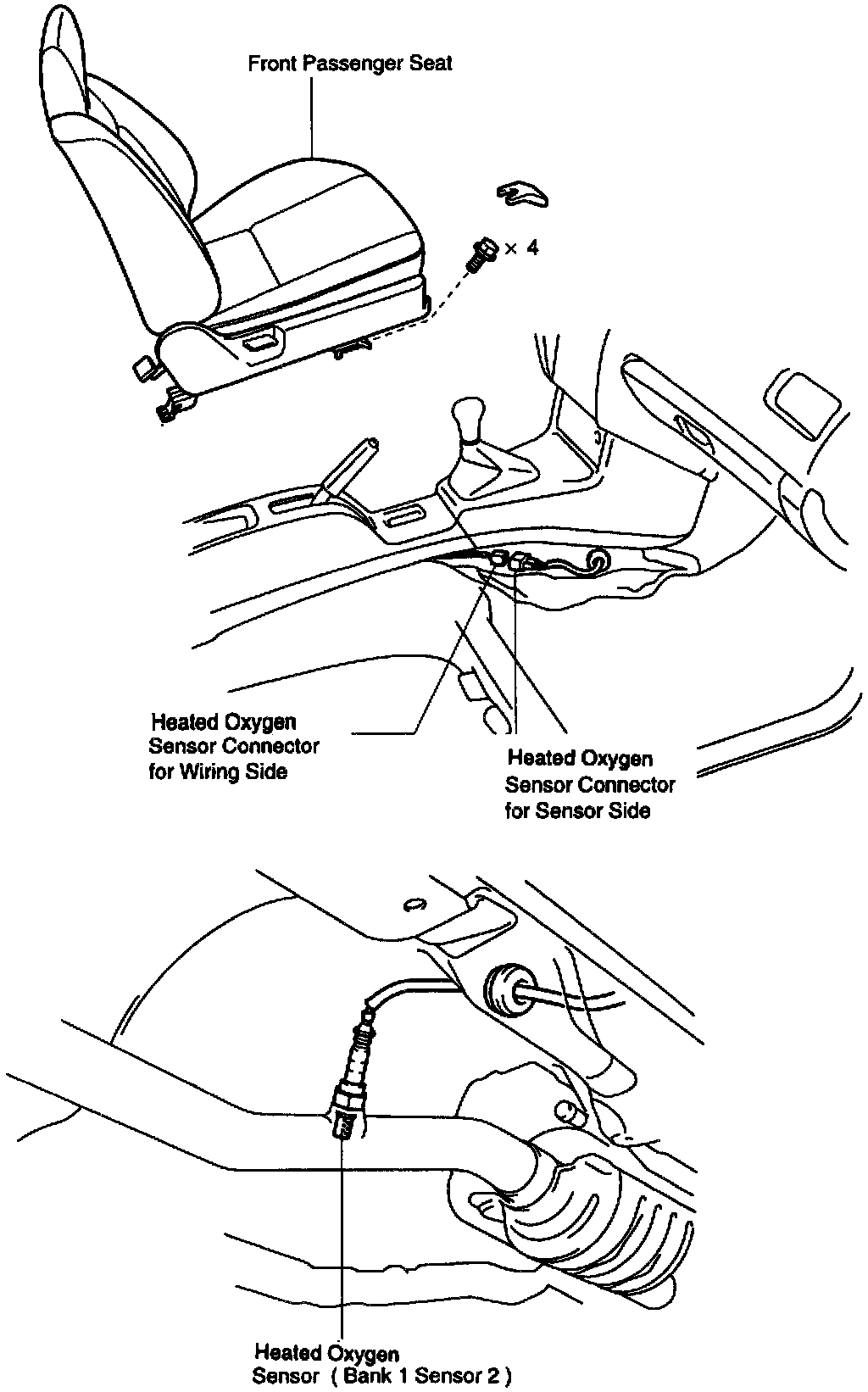

INSPECT HEATER RESISTANCE OF HEATED OXYGEN SENSOR (BANK 1 SENSOR 2)
(a) Remove the passenger's seat.
(b) Take out the console box side of the floor carpet.
(c) Disconnect the oxygen sensor connector.
(d) Using an ohmmeter, measure the resistance between the terminals +B and HT.
Resistance: 11 - 16 ohms at 20°C (68°F)
If the resistance is not as specified, replace the sensor.
Torque: 44 N.m (440 kgf.cm, 32 ft.lbf)
(e) Reconnect the oxygen sensor connector.
(f) Reinstall the floor carpet.
(g) Reinstall the passenger's seat.
