General Torque Specifications

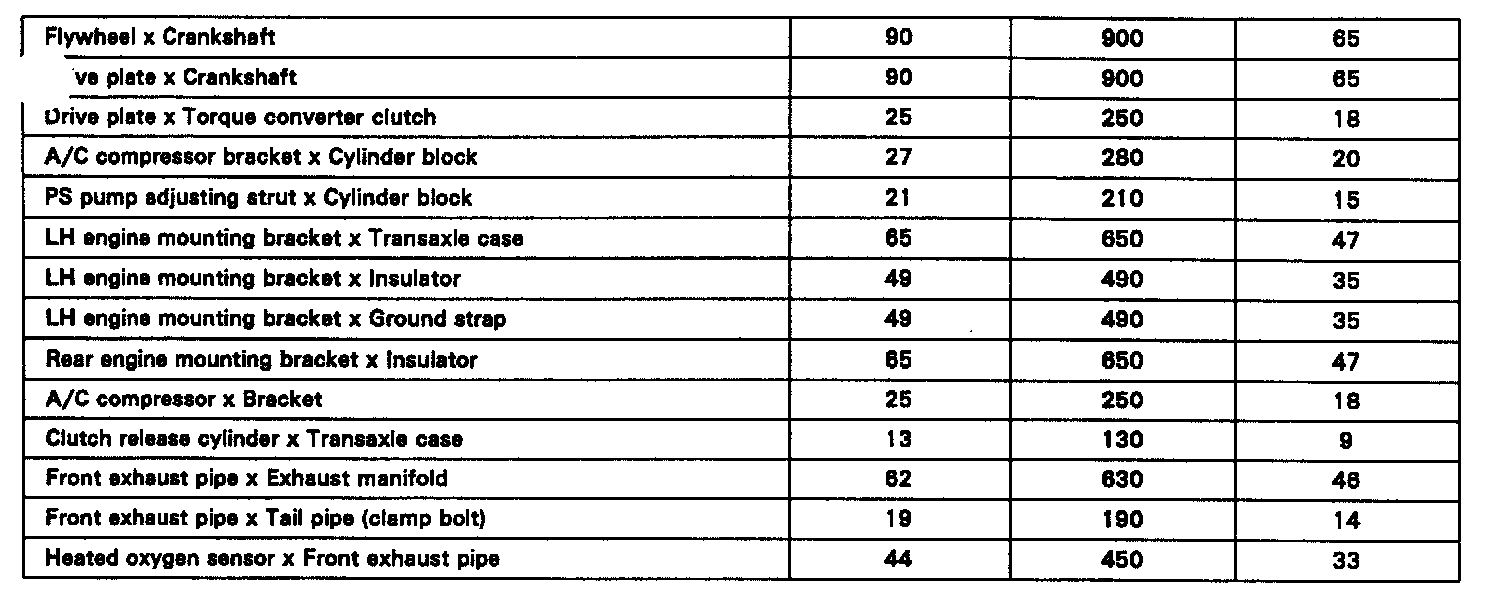

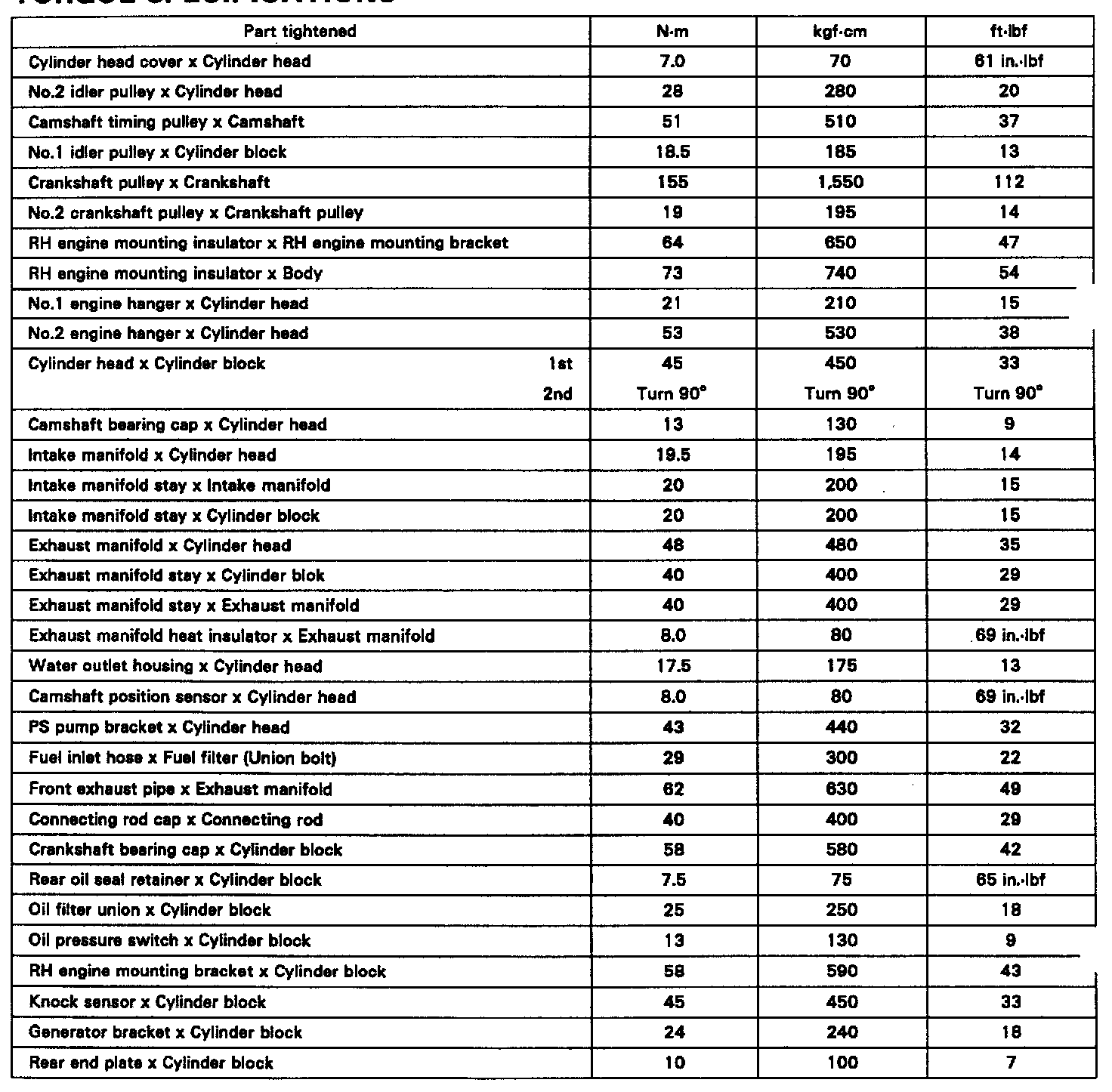

TORQUE CHART








TORQUE SEQUENCES

Camshaft Removal and Installation Sequences
Proper installation procedures are essential to camshaft durability and to avoid damage. Refer to Camshaft, Engine; Service and Repair for detailed camshaft installation procedures.


Cylinder Head Bolt Removal Sequence





Cylinder Head Bolt Tightening Sequence

Cylinder Head Bolts Torque Sequence:






Main Bearing Cap Bolts Removal Sequence





Main Bearing Cap Bolts Tightening Sequence





Flywheel/Drive Plate Bolt Tightening Sequence





See also: Refer to Diagrams/Exploded Views at component level.
