Crankshaft Position Sensor: Testing and Inspection


CRANKSHAFT POSITION SENSOR INSPECTION

NOTICE: Cold and Hot in the following sentences express the temperature of the sensor itself. Cold is from -10°C (14°F) to 50°C (122°F) and Hot is from 50°C (122°F) to 100°C (212°F).

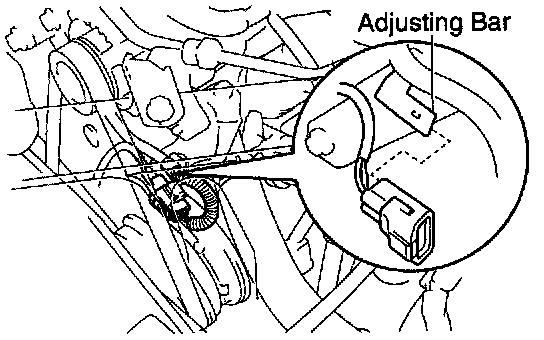

1. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR FROM GENERATOR DRIVE BELT ADJUSTING BAR





2. INSPECT CRANKSHAFT POSITION SENSOR RESISTANCE

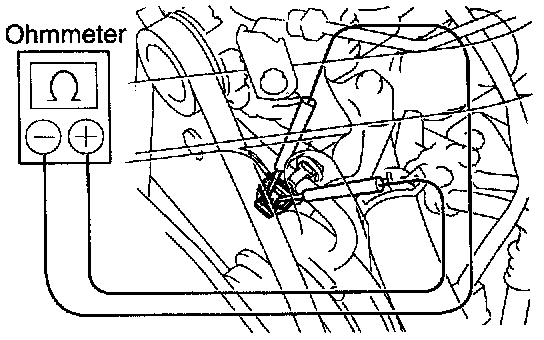

Using an ohmmeter, measure the resistance between terminals.

Resistance:
Cold: 985 - 1,600 Ohms
Hot: 1,265 - 1,890 Ohms

If the resistance is not as specified, replace the crankshaft position sensor.
3. RECONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
