Power Window Switch / Master Switch

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY

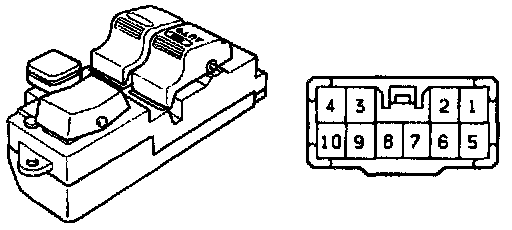

2 DOOR

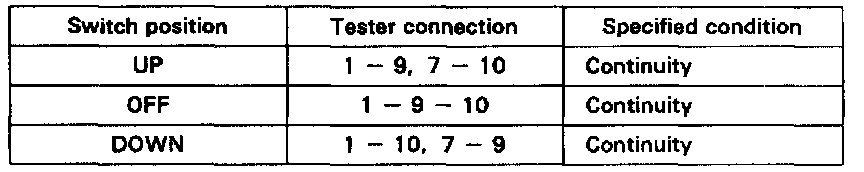

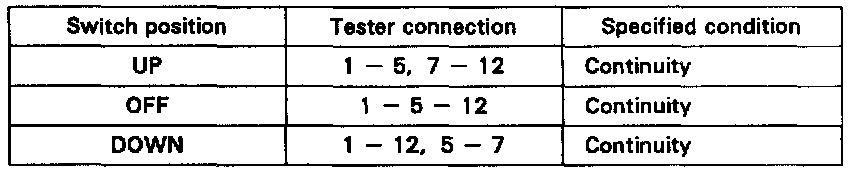

Driver's Switch

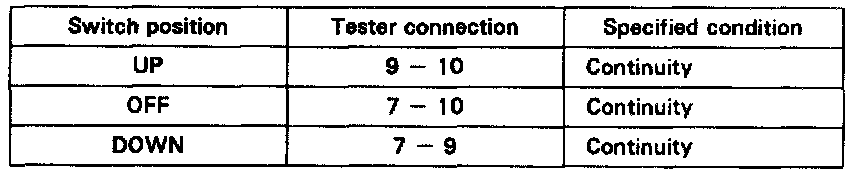

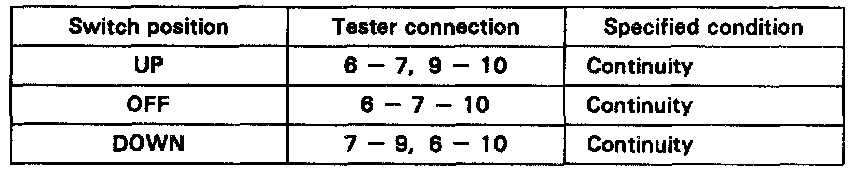

Passenger's Switch: Window unlock

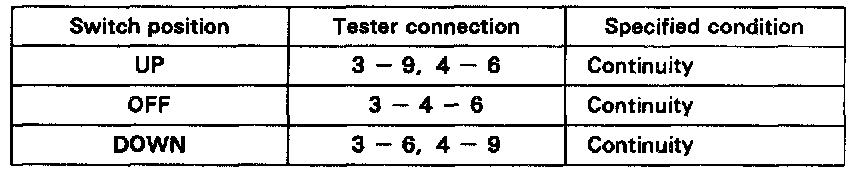

Passenger's Switch: Window lock

If continuity is not as specified, replace the switch.

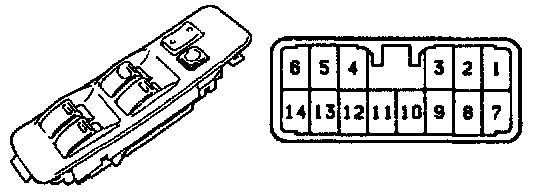

4 DOOR

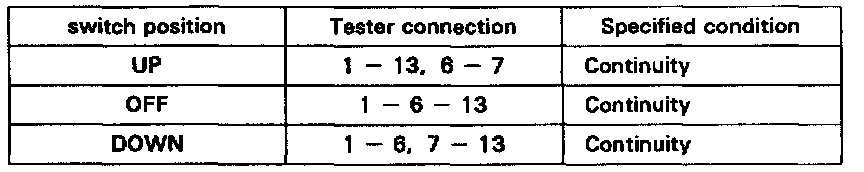

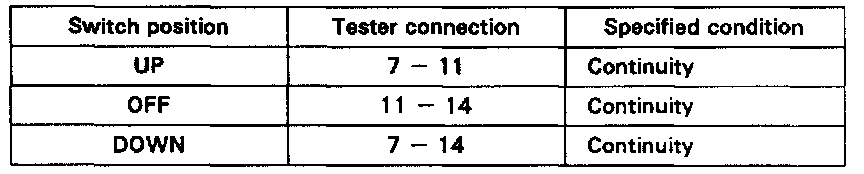

Driver's switch

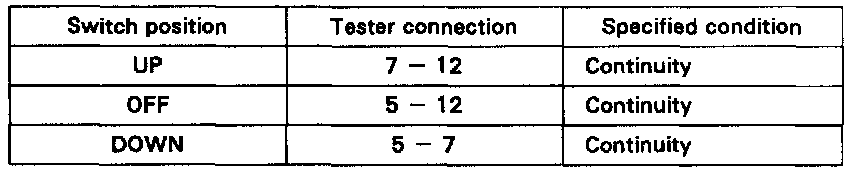

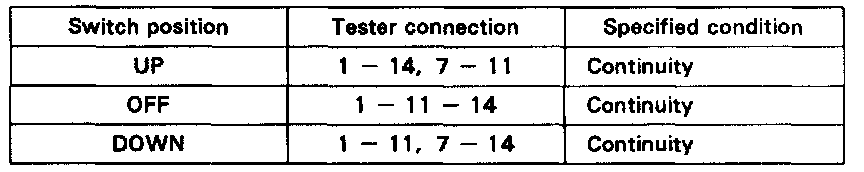

Passenger side switch: Window unlock

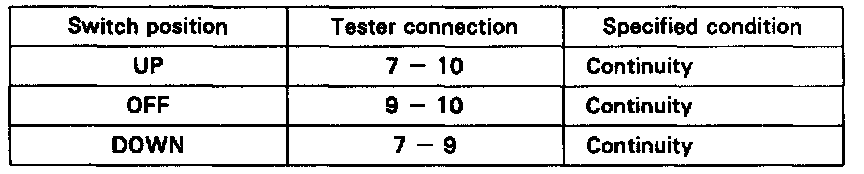

Passenger side switch: Window lock









Rear LH side switch: Window unlock









Rear LH side switch: Window lock









Rear RH side switch: Window unlock









Rear RH side switch: Window lock

If continuity is not as specified, replace the switch.


INSPECT POWER WINDOW MASTER SWITCH ILLUMINATION







2 DOOR

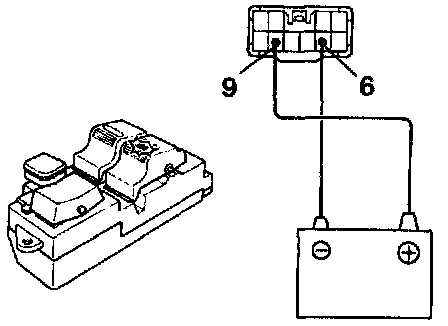

Connect the positive (+) lead from the battery to terminal 9 and the negative (-) lead to terminal 6 check that all the illuminations light up.

If operation is not as specified, replace the master switch.







4 DOOR

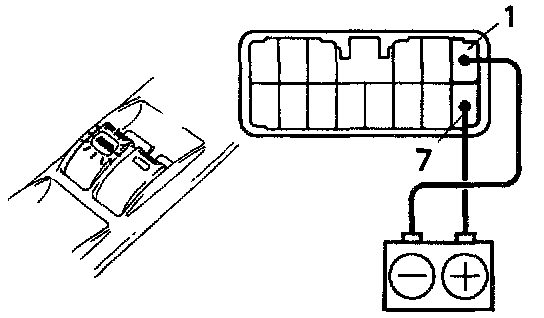

Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 1 check that all the illuminations light up.

If operation is not as specified, replace the master switch.
