A/C Control Assembly

A/C Control Assembly


CIRCUIT DESCRIPTION
This circuit includes the control switch circuit and the LED circuit in the A/C control Assembly. The A/C amplifier always searches which switch is operated and drives the LED according to A/C control operation or diagnostic sensor check operation.


A/C Control Assembly:

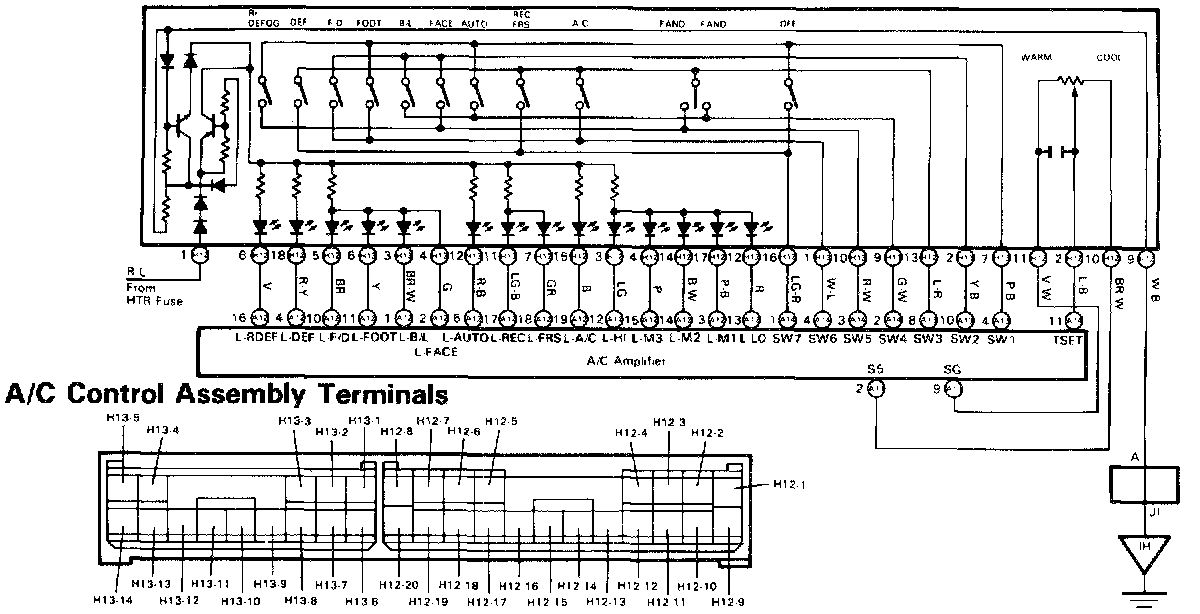

WIRING DIAGRAM

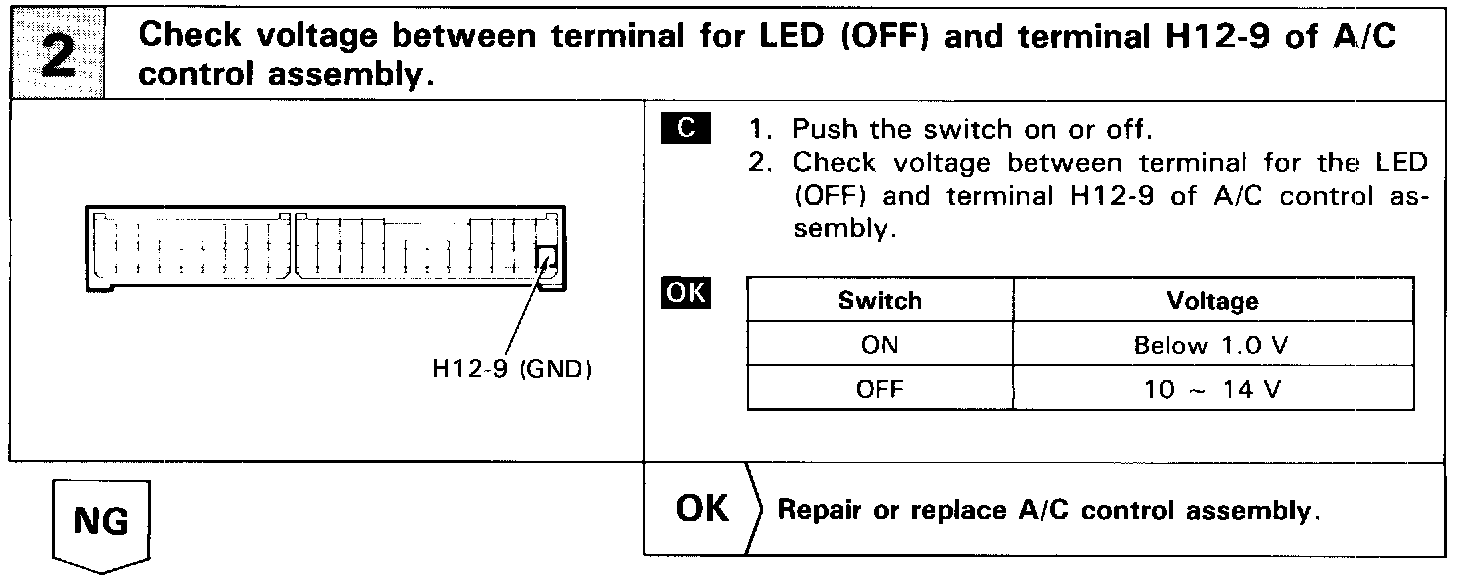

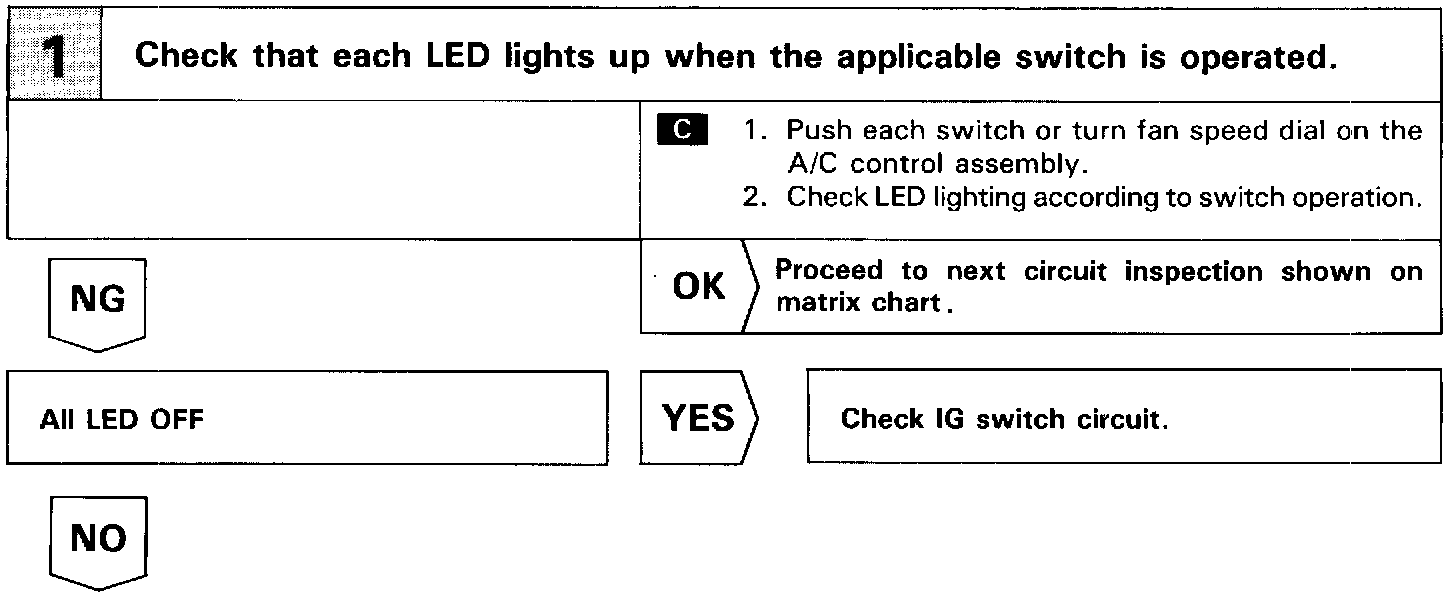

Inspection Procedures / A/C Control Assembly (1 Of 4):

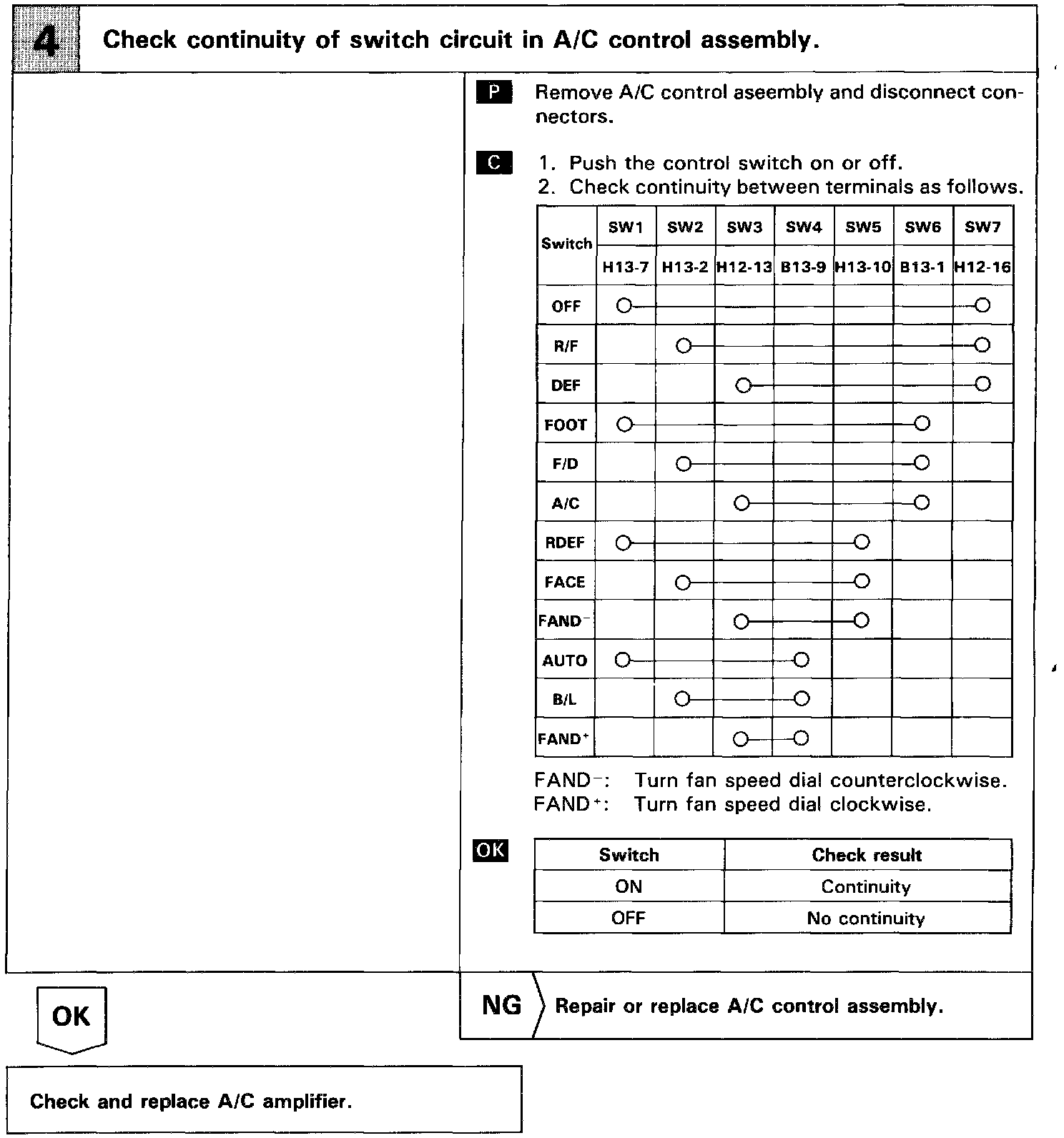

Inspection Procedures / A/C Control Assembly (4 Of 4):

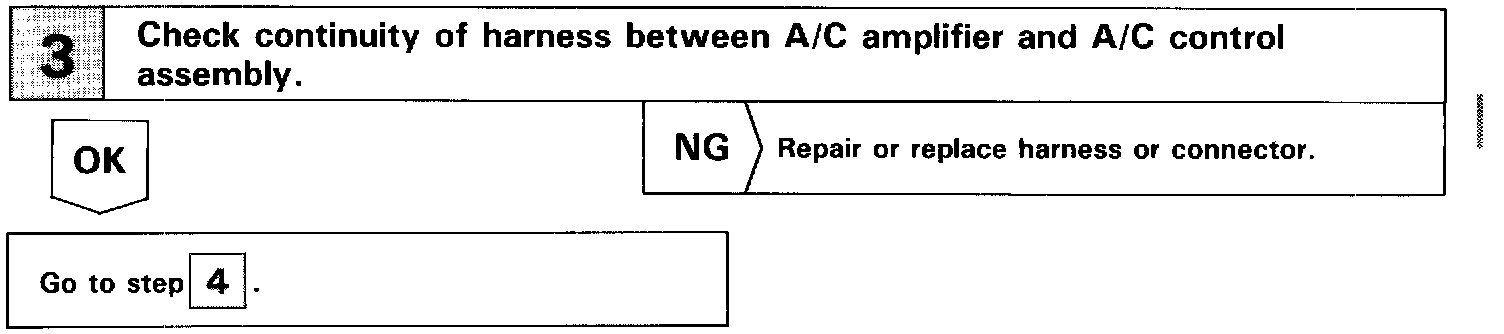

Inspection Procedures / A/C Control Assembly (3 Of 4):




Inspection Procedures / A/C Control Assembly (4 Of 4):






INSPECTION PROCEDURE
