Temperature Set Dial Circuit

Temperature Set Dial Circuit

CIRCUIT DESCRIPTION
When temperature set dial is turned, the voltage of TSET terminal will change. A/C amplifier searches for this change and controls the room temperature according to the temperature set.

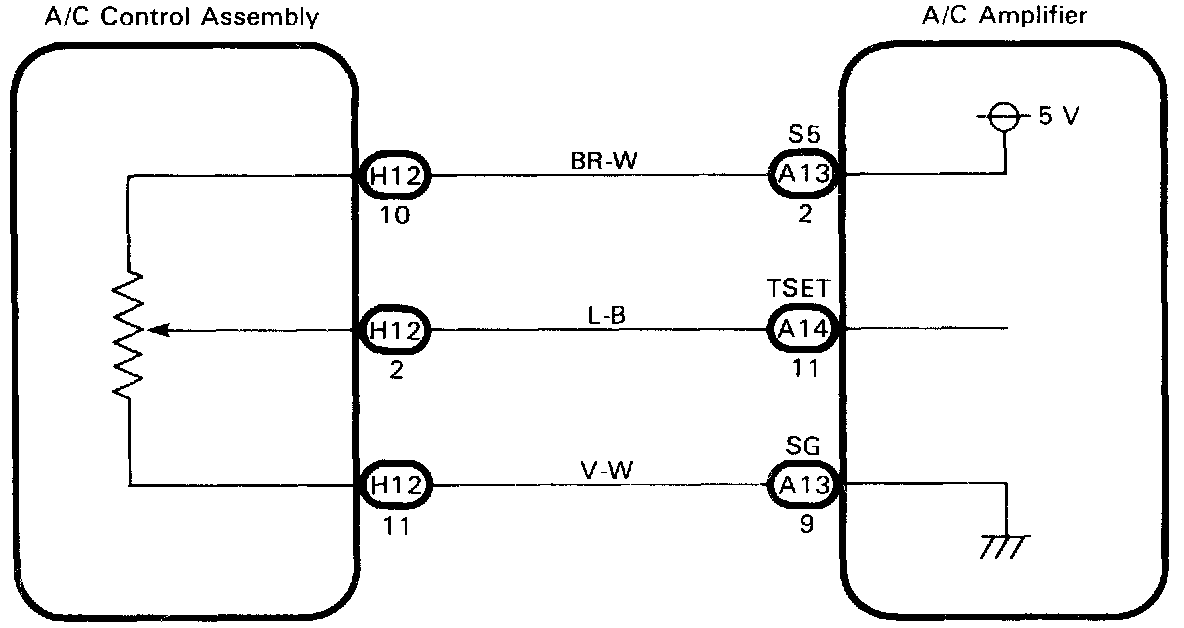

Temperature Set Dial Circuit:

WIRING DIAGRAM

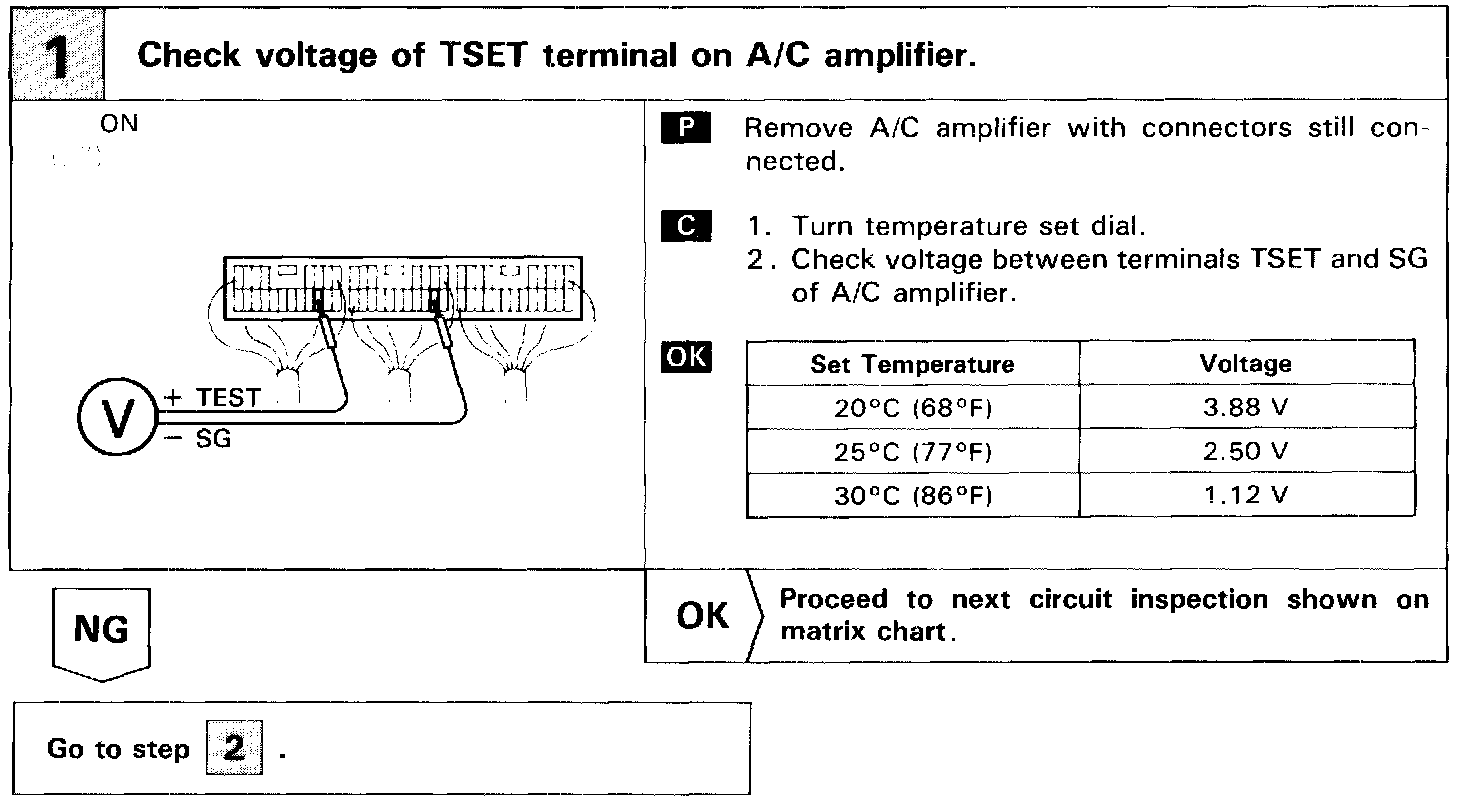

Inspection Procedure / Temperature Set Dial Circuit (1 Of 3):

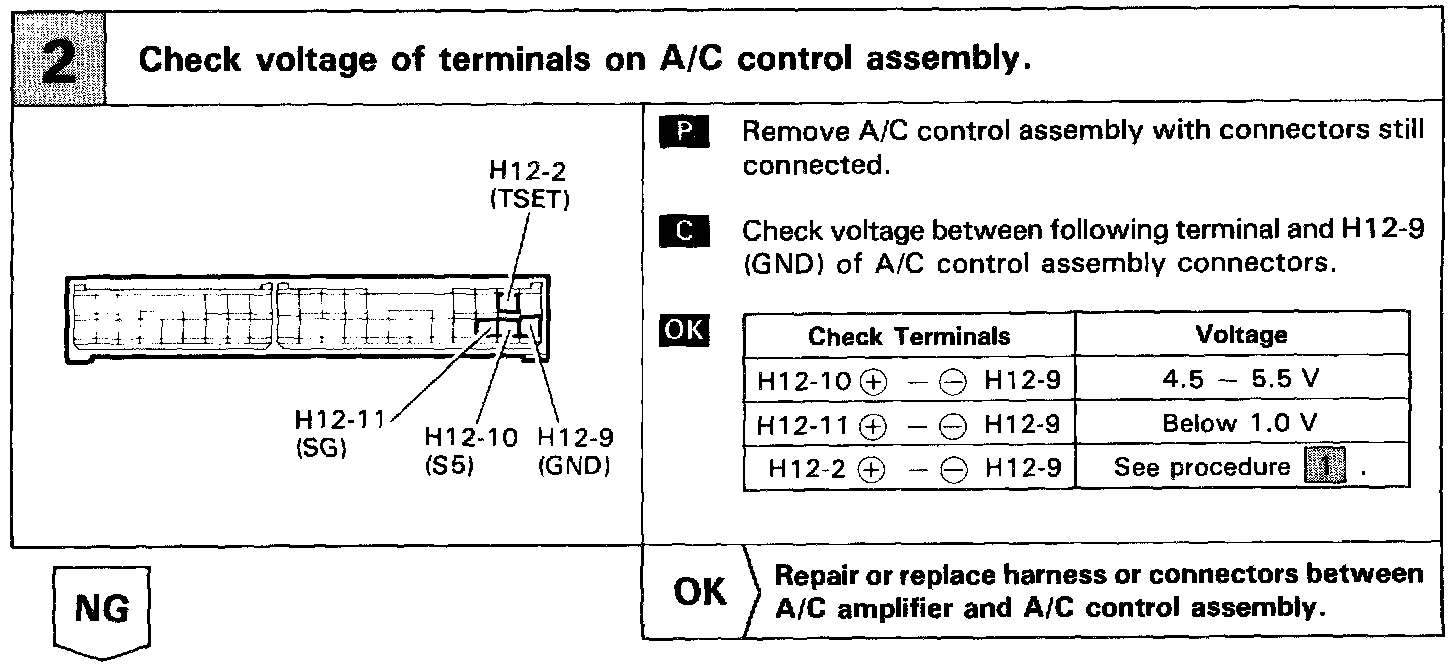

Inspection Procedure / Temperature Set Dial Circuit (2 Of 3):

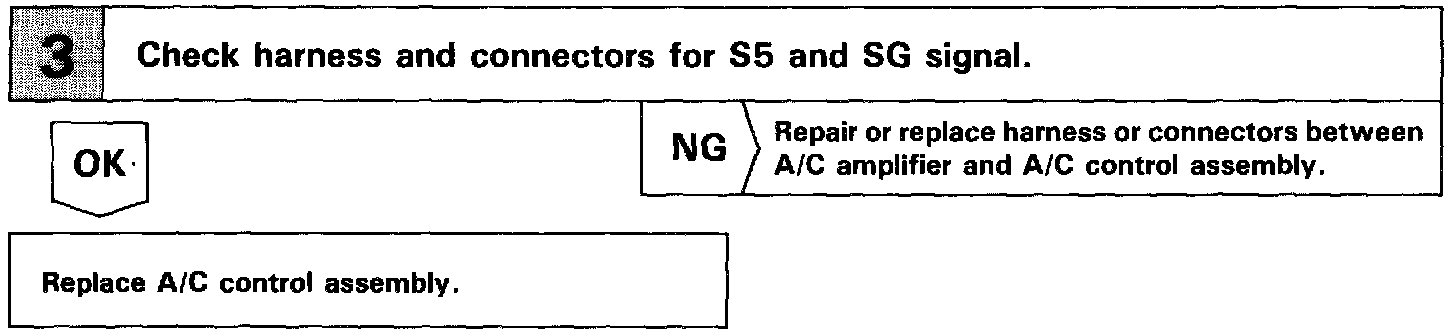

Inspection Procedure / Temperature Set Dial Circuit (3 Of 3):

INSPECTION PROCEDURE
