Heater Relay Circuit

Heater Relay Circuit


CIRCUIT DESCRIPTION
The heater relay is switched on by signals from the A/C amplifier and switches power to the blower motor.


Heater Relay Circuit:






WIRING DIAGRAM

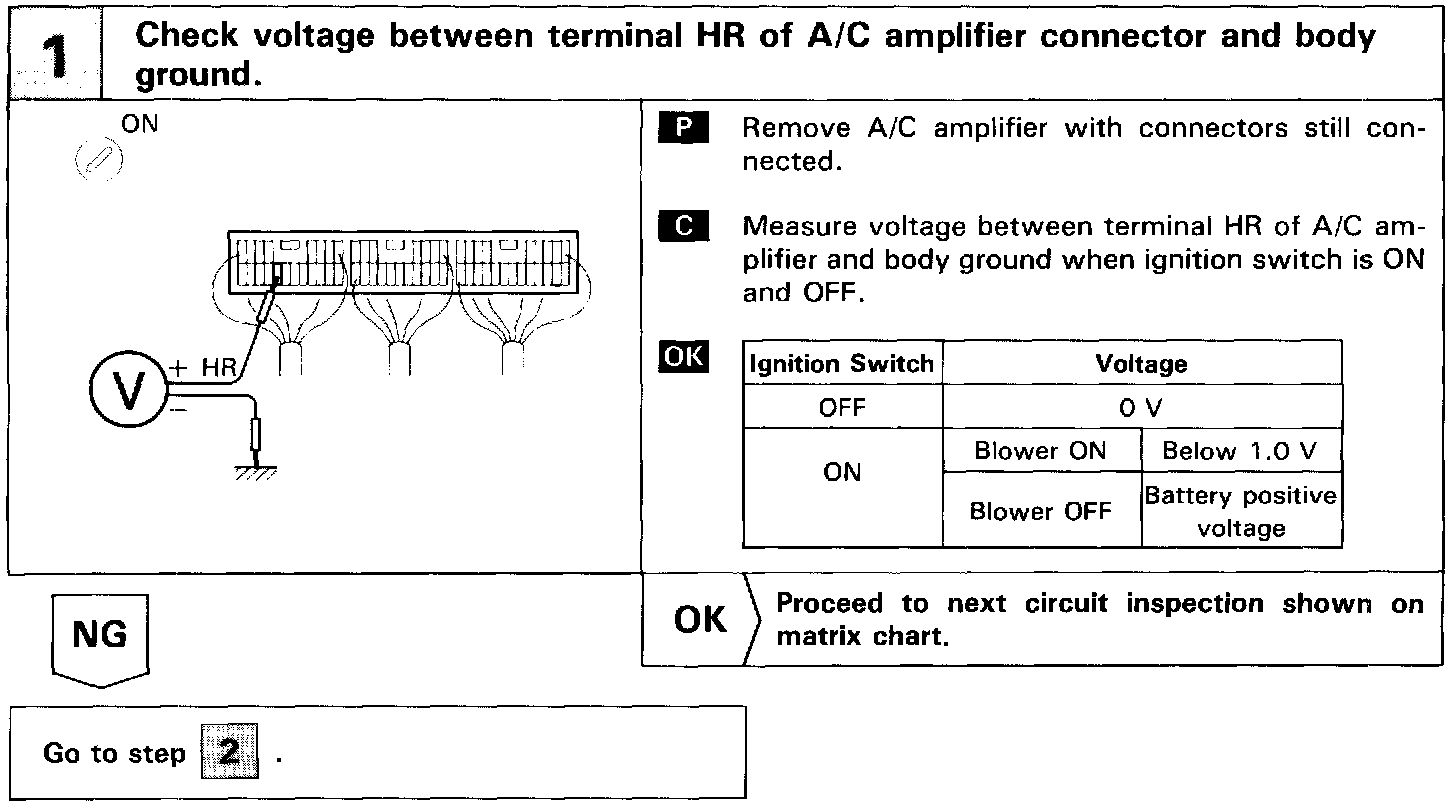

Inspection Procedure / Heater Relay Circuit (1 Of 3):




Inspection Procedure / Heater Relay Circuit (2 Of 3):

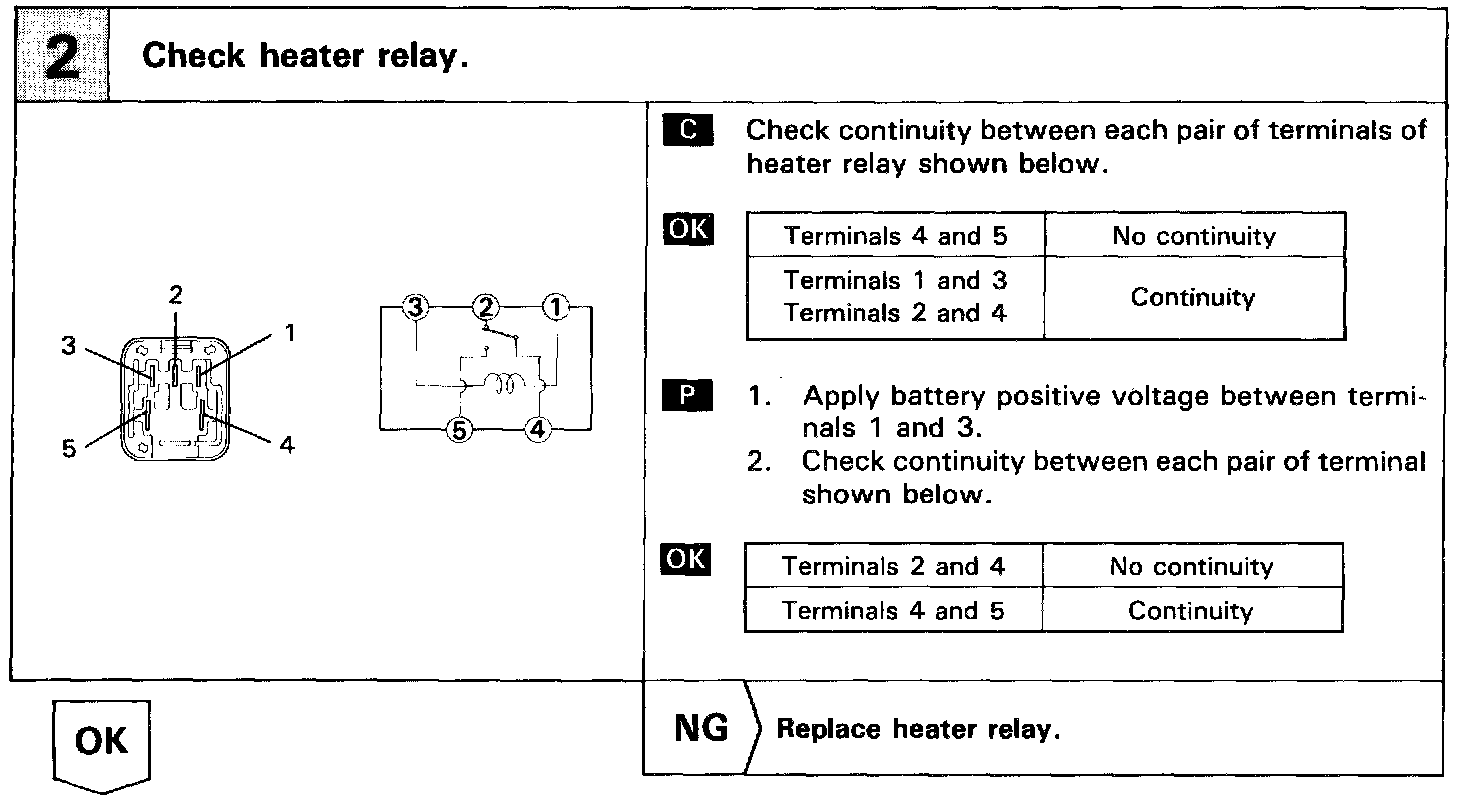

Inspection Procedure / Heater Relay Circuit (3 Of 3):






INSPECTION PROCEDURE
