How to Read Adjustment Chart

Adjustment Chart:

ADJUSTMENT CHART
1. How to read the adjustment chart.

a. Mark on the graph the measurements taken from the vehicle.

Example:
Camber: +0°10' (+0.16°).
Caster: +4°20' (+4.33°).

Example of turbo:
Camber (LH): -1°00' (-1°).
Camber (RH): -1°30'(-1.5°).
Toe-in: OUT 9 mm (0.35 inch).

Adjustment Chart / 2JZ-GE:

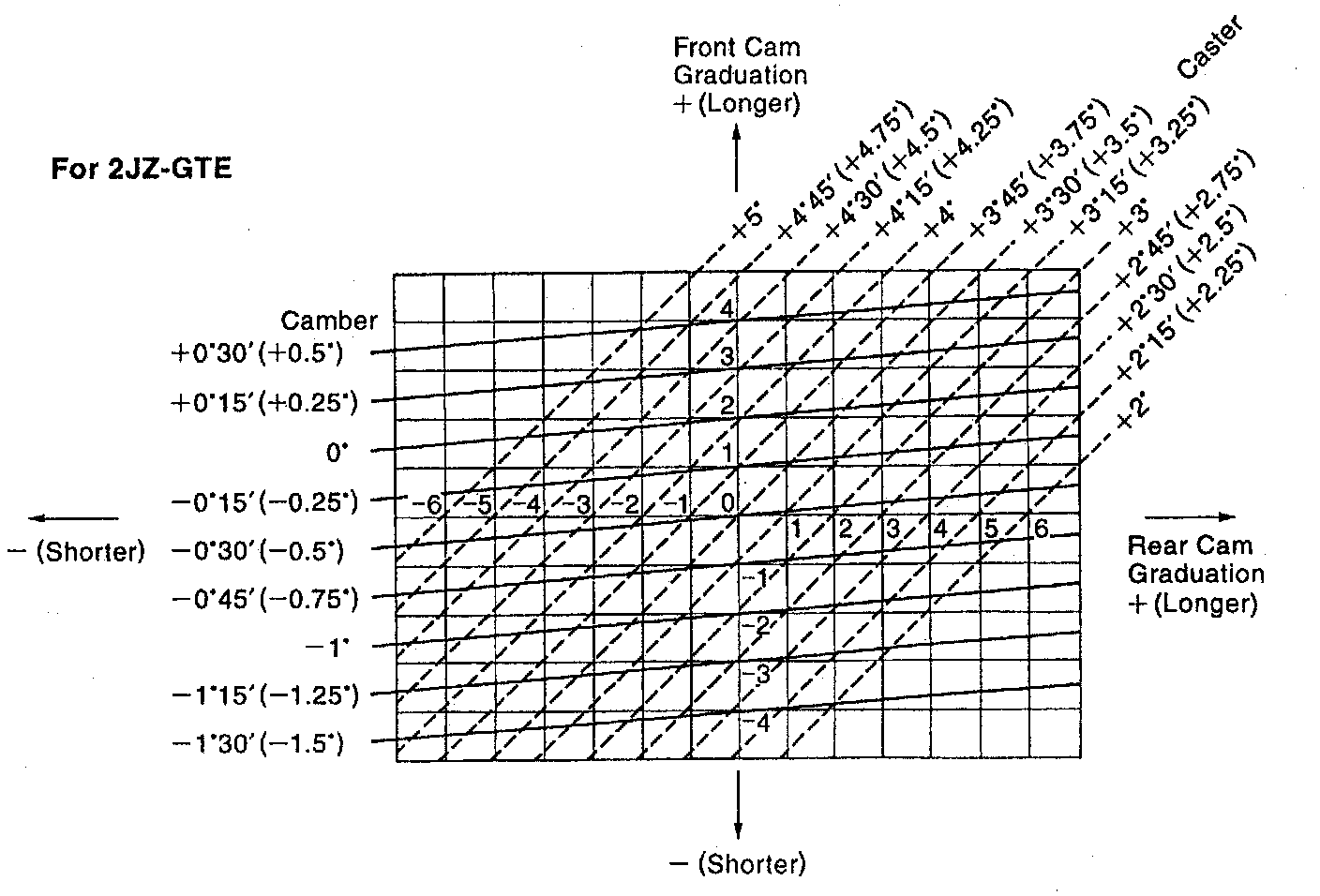

Adjustment Chart / 2JZ-GTE:

b. Read from the graph the amounts of the front and/or rear cams to be adjusted.
Amount to turn adjusting cam (by graduation):
Front Cam: + (Longer) 1.8.
Rear Cam: - (Shorter) 2.2.
