Control Module HVAC: Service and Repair

AIR CONDITIONING AMPLIFIER REMOVAL

1. REMOVE CENTER CLUSTER PANEL

2. REMOVE RADIO WITH AIR CONDITIONING AMPLIFIER

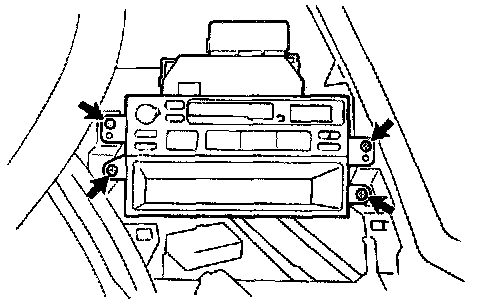

a. Remove the 4 screws and radio with the air conditioning amplifier.
b. Disconnect the connectors.

3. REMOVE AIR CONDITIONING AMPLIFIER FROM RADIO

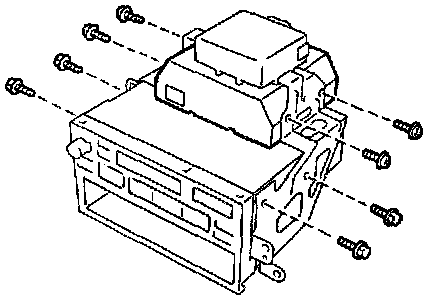

a. Remove the 4 screws and the 4 bolts.
b. Remove the air conditioning amplifier from radio.

INSTALLATION
Installation is in the reverse order of removal.
