General Torque Specifications

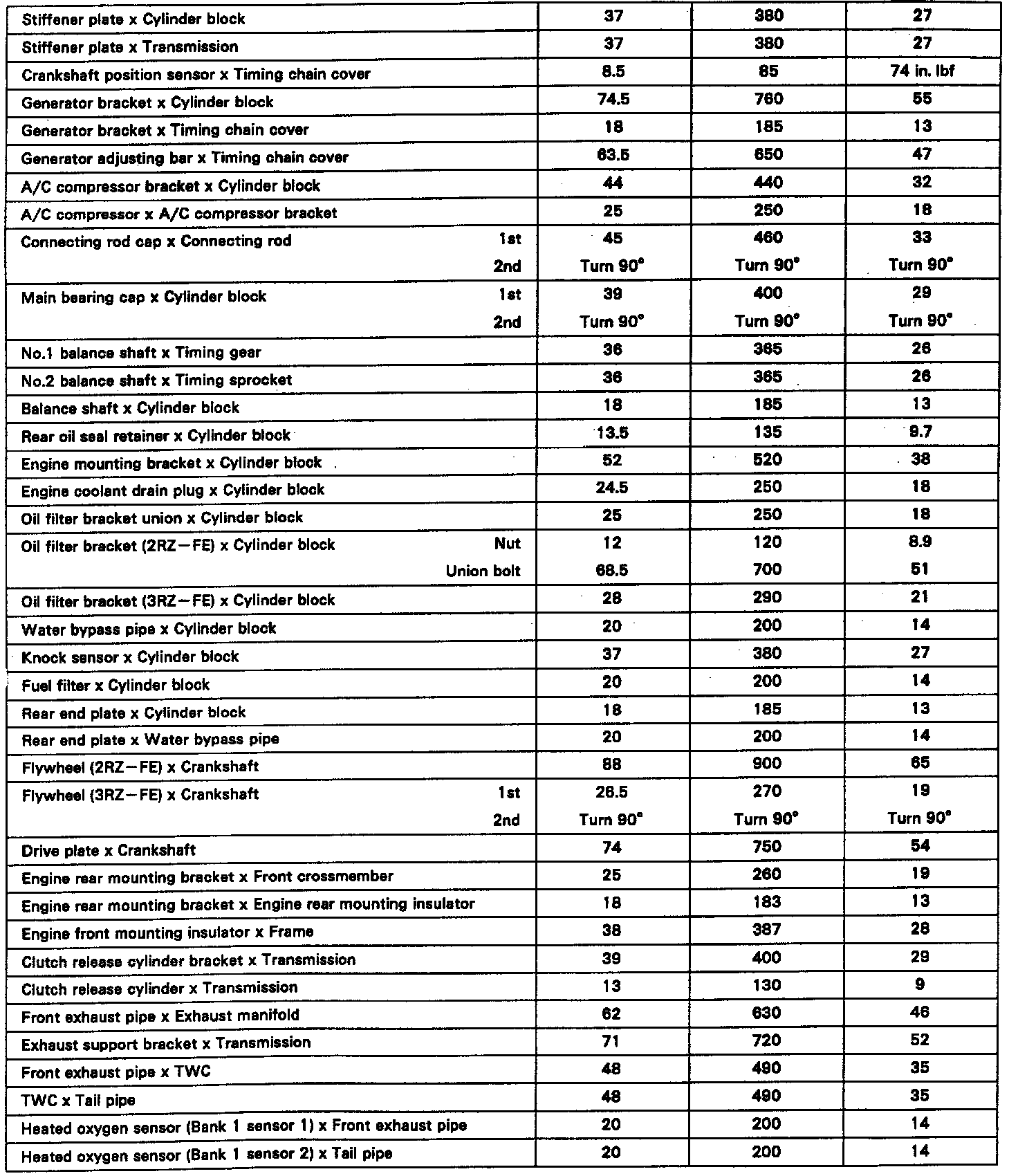

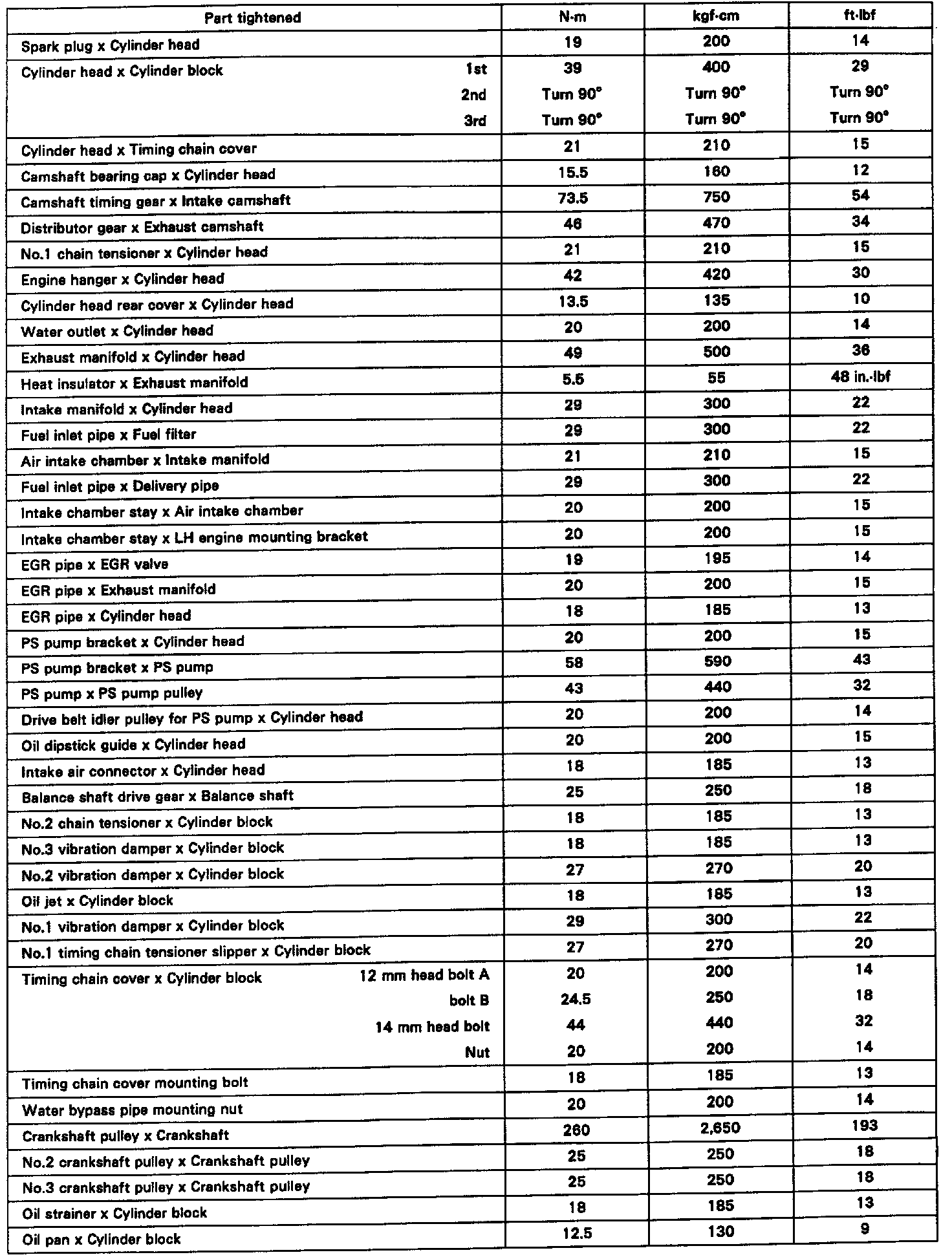

TORQUE CHART








TORQUE SEQUENCES

Camshaft Bearing Cap Removal and Installation Sequences
Proper removal and installation procedures are essential to camshaft durability and to avoid damage. Refer to Camshaft, Engine; Service and Repair for detailed camshaft removal and installation procedures.

Cylinder Head Bolt Removal Sequence

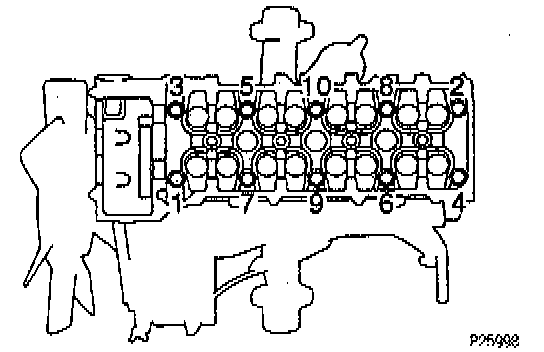

Cylinder Head Bolt Tightening Sequence





Main Bearing Cap Bolts Removal Sequence





Main Bearing Cap Bolts Tightening Sequence





Flywheel/Drive Plate Bolt Tightening Sequence

Sequence:
