General Torque Specifications

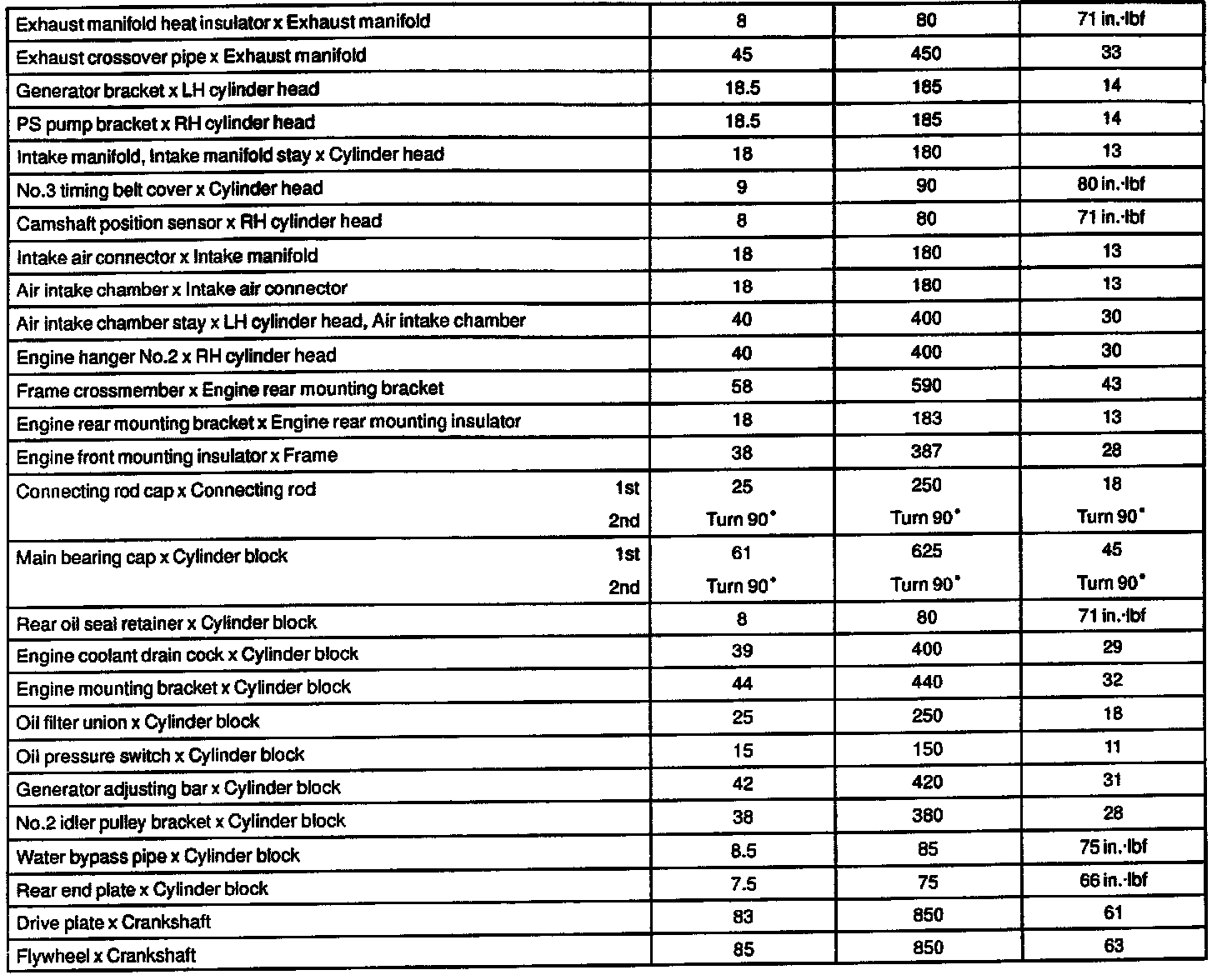

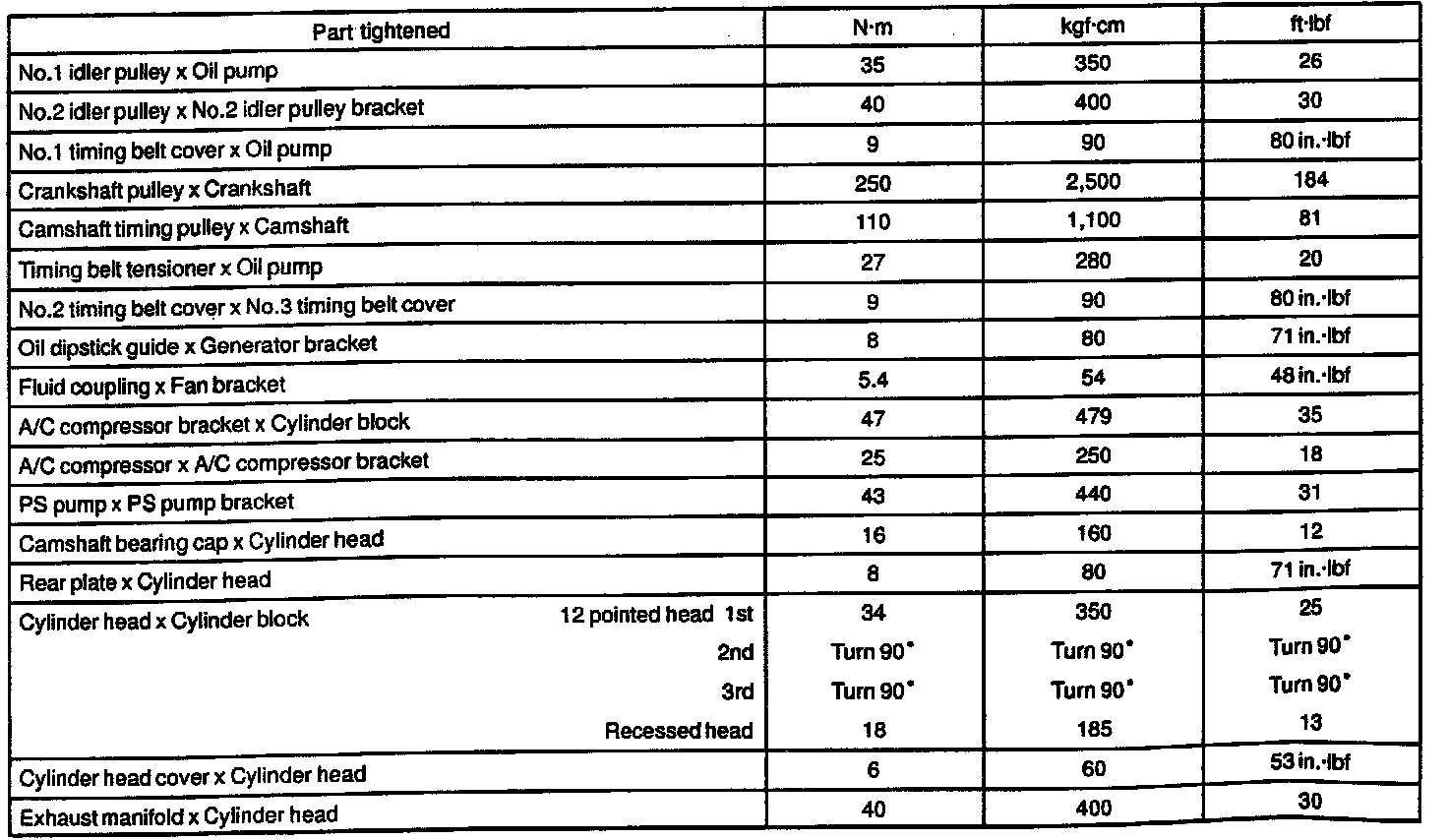

TORQUE CHART








TORQUE SEQUENCES

Camshaft Bearing Cap Removal and Tightening Sequences
Proper removal and installation procedures are essential to camshaft durability and to avoid damage. Refer to Camshaft, Engine; Service and Repair for detailed camshaft removal and installation procedures.

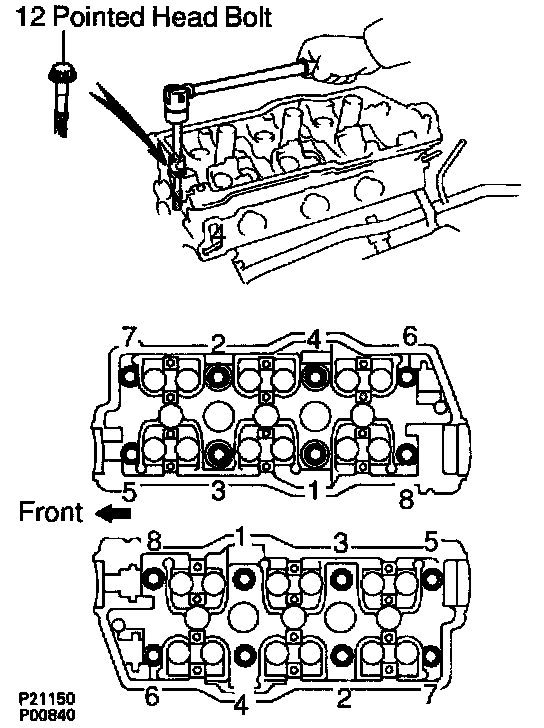

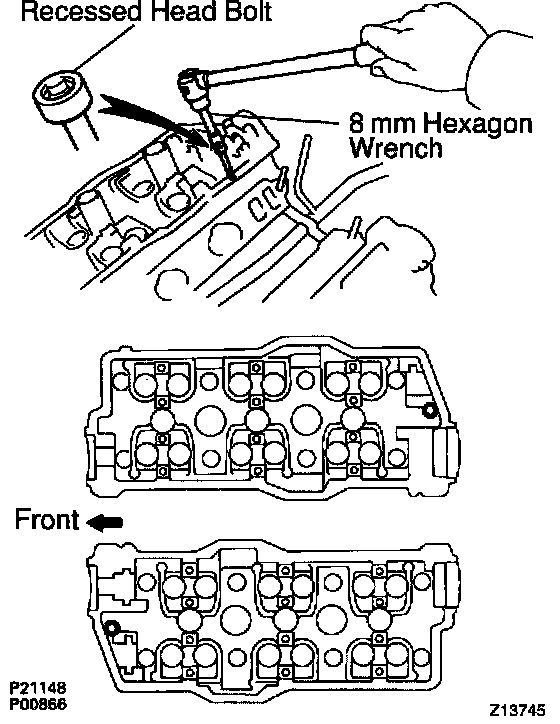

Cylinder Head Bolt Removal Sequence








Cylinder Head Bolt Tightening Sequence








Main Bearing Cap Bolts Removal Sequence





Main Bearing Cap Bolts Tightening Sequence





Flywheel/Drive Plate Bolt Tightening Sequence

Sequence:






See also: Refer to Diagrams/Exploded Views at component level.
