Cylinder Head Assembly

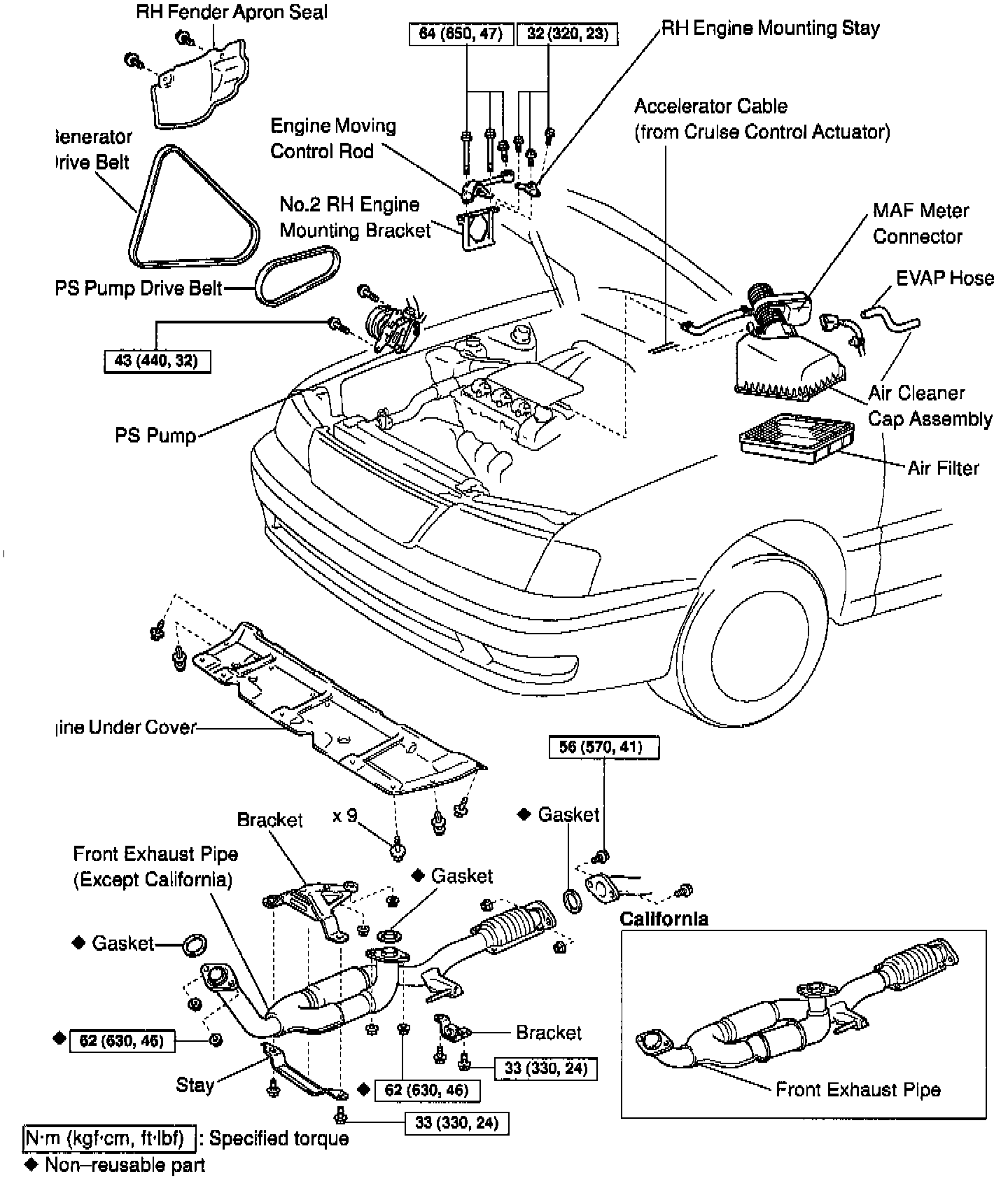

EXHAUST PIPING, POWER STEERING PUMP AND FRESH AIR INTAKE

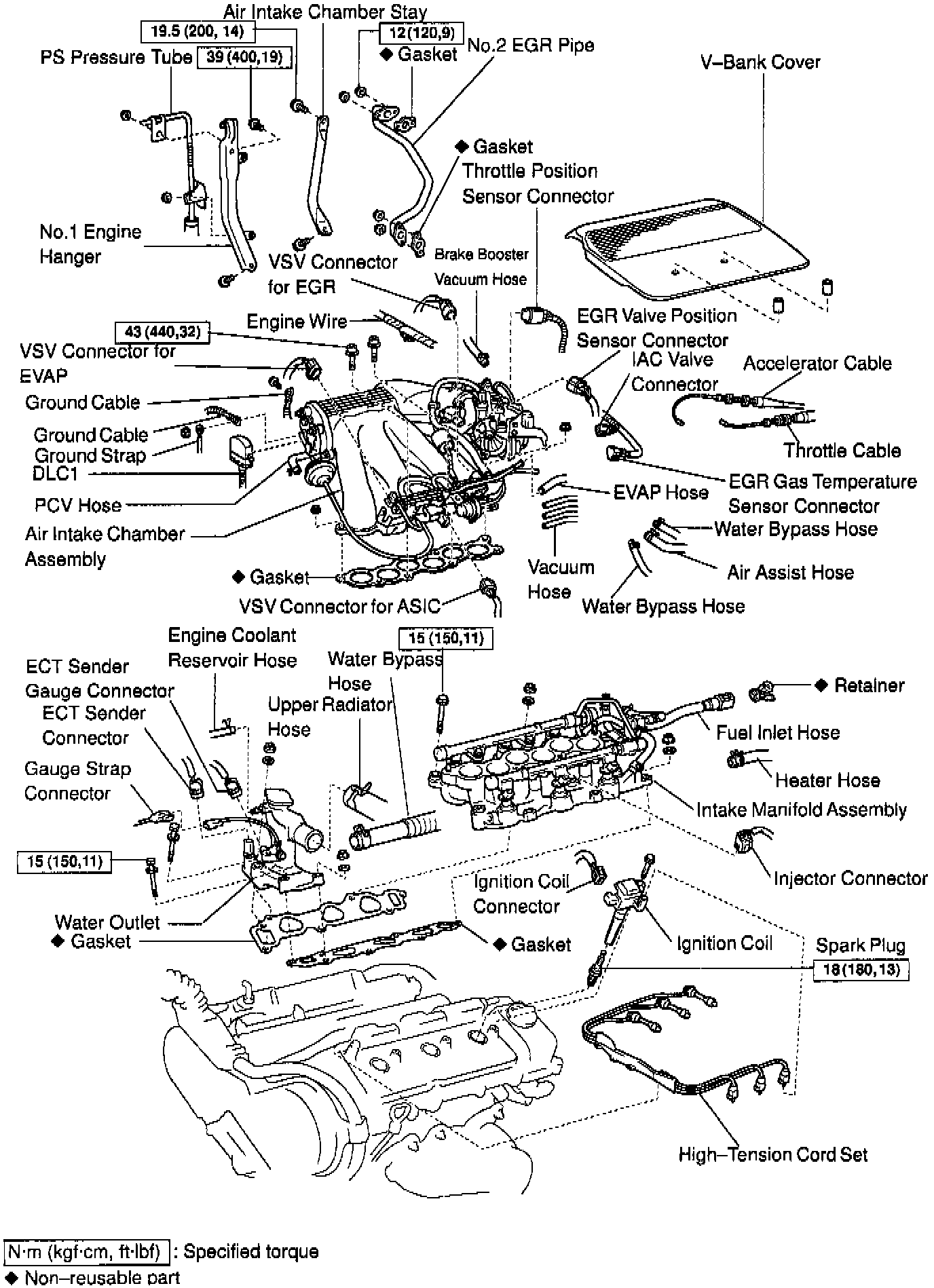

UPPER AND LOWER INTAKE ASSEMBLIES

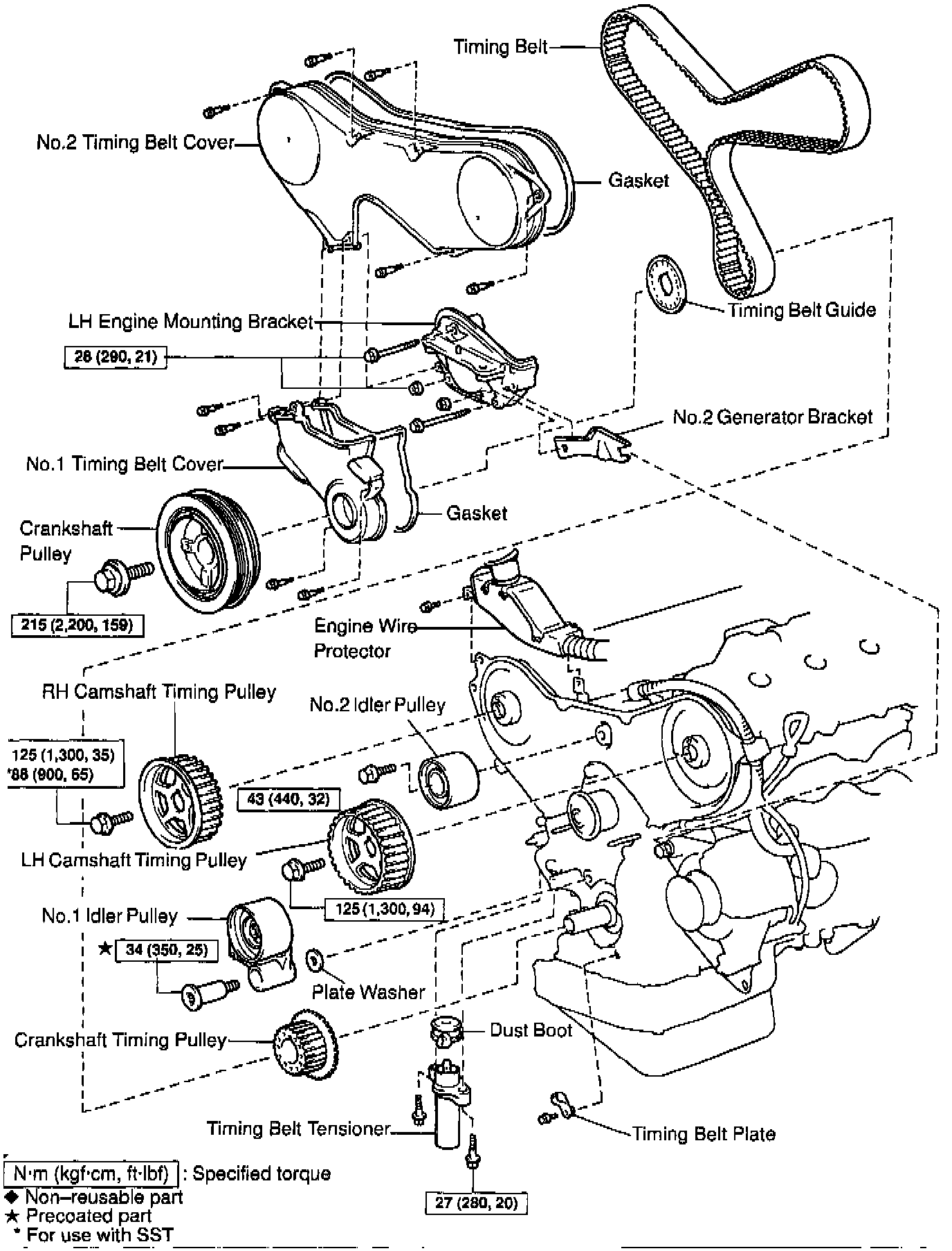

TIMING BELT, TIMING BELT TENSIONER AND PULLEYS

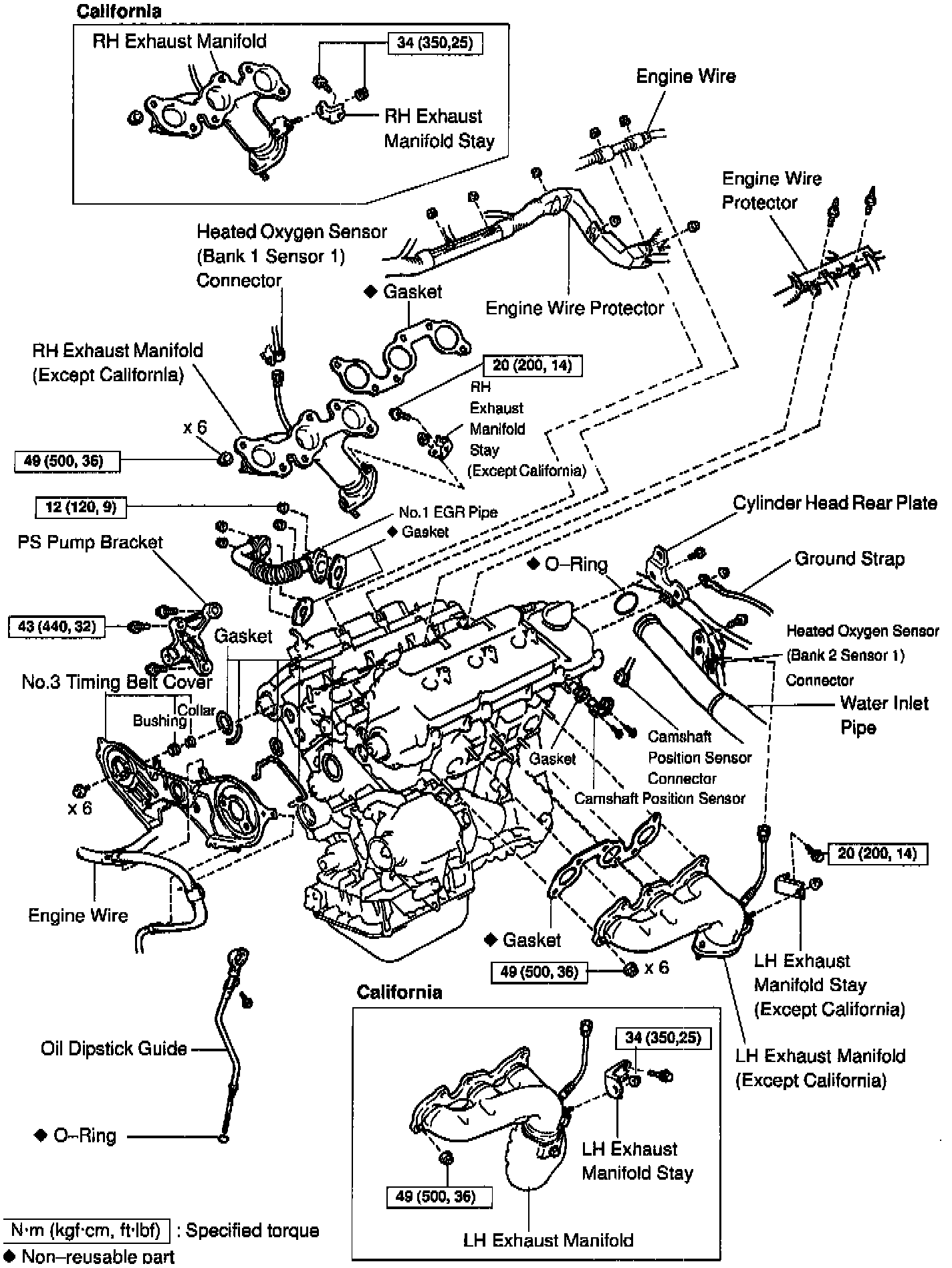

EXHAUST MANIFOLD, REAR TIMING BELT COVER AND POWER STEERING PUMP BRACKET

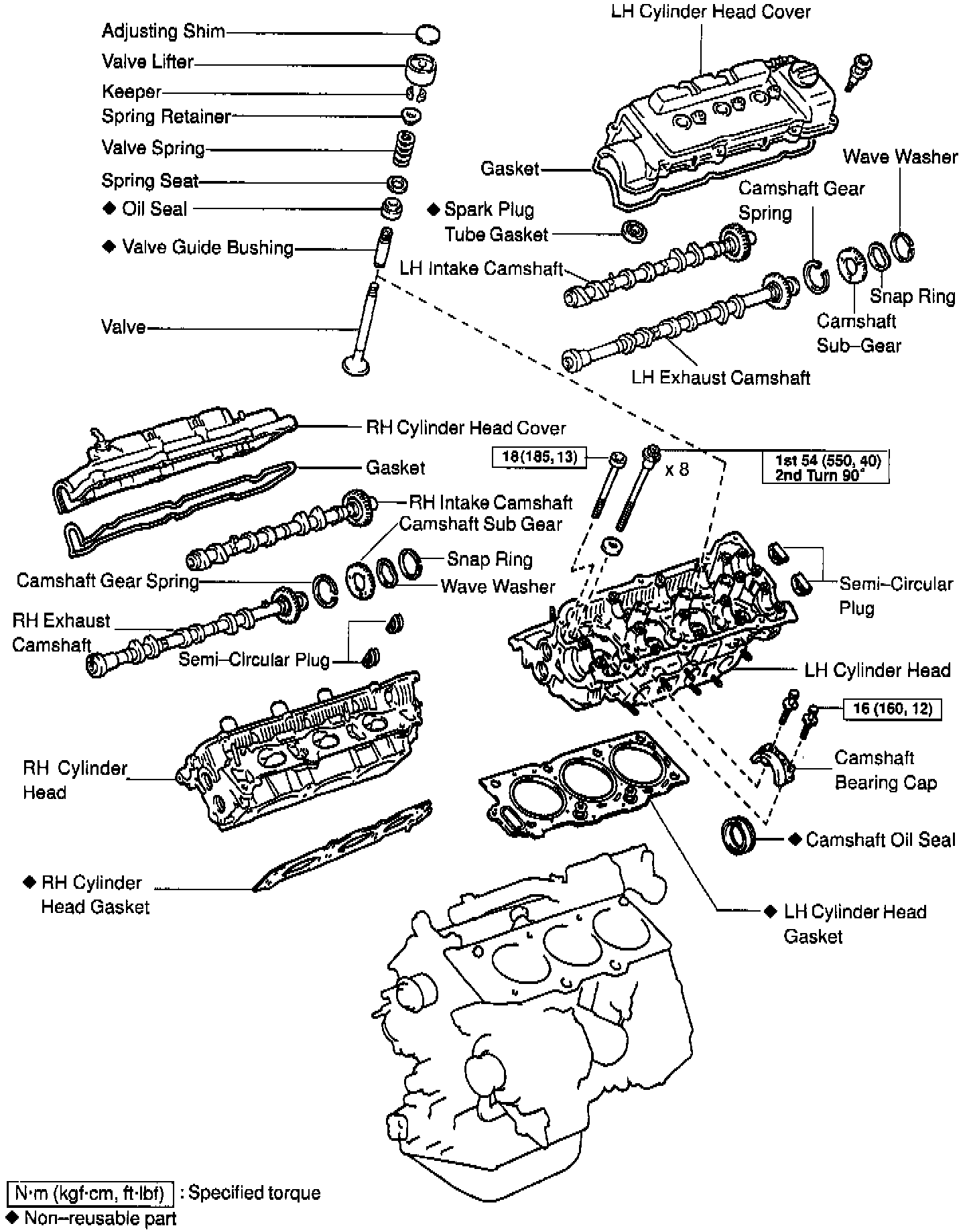

CYLINDER HEAD AND CAMSHAFT ASSEMBLIES
