Blower Motor Linear Controller (Auto A/C)
REMOVAL
1. REMOVE THESE PARTS: a.
Front door scuff plate LH
b.
Cowl side trim LH
c.
Lower finish panel
d.
Instrument panel finish lower LH

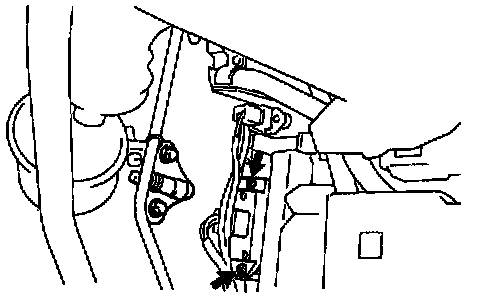

2. REMOVE BLOWER MOTOR LINEAR CONTROLLER a.
Disconnect the connector.
b.
Remove the 2 screws and controller.
INSTALLATIONInstallation is in the reverse order of removal.
