Cylinder Head Assembly

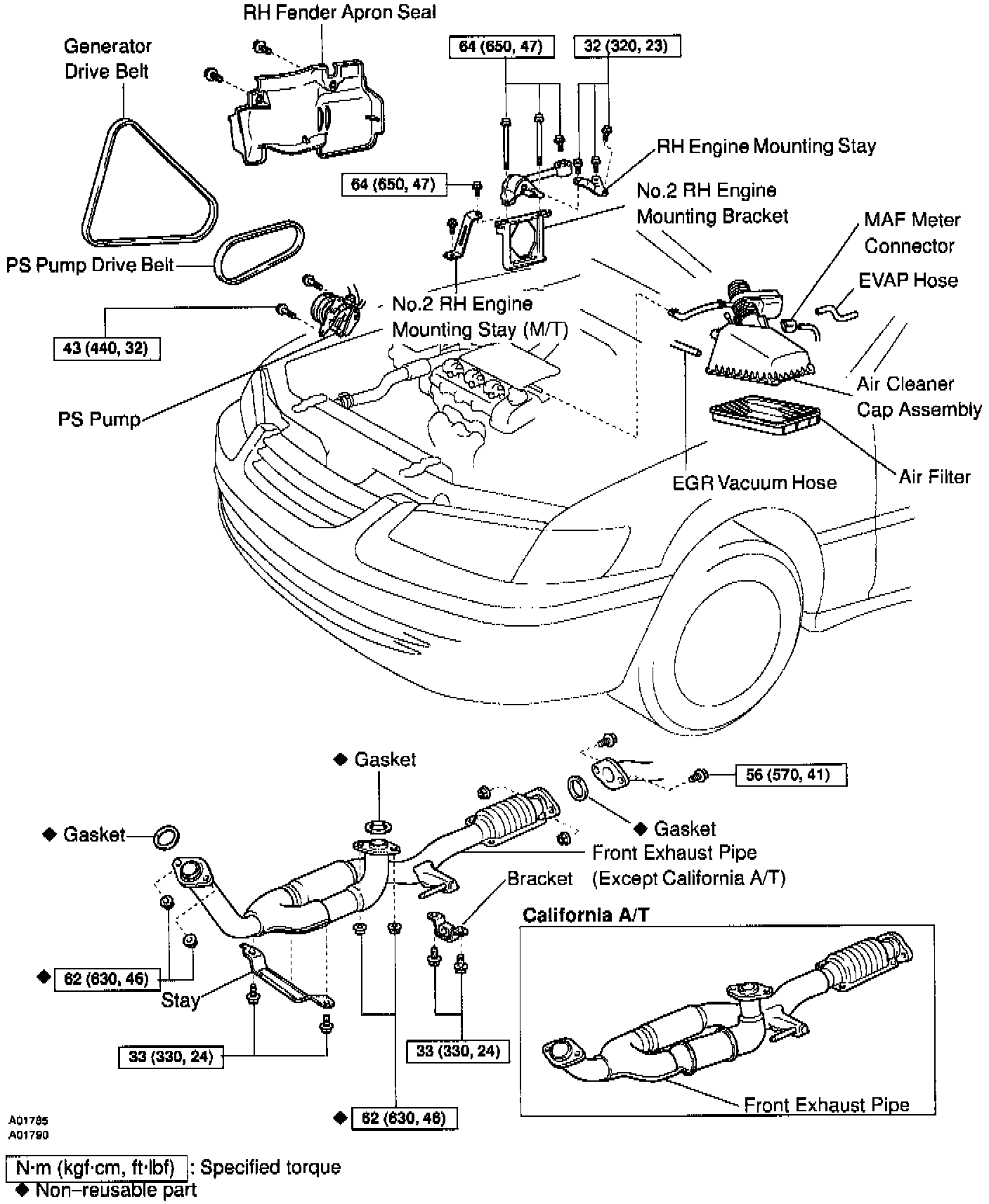

No.2 RH ENGINE MOUNTING STAY (M/T), No.2 RH ENGINE MOUNTING BRACKET

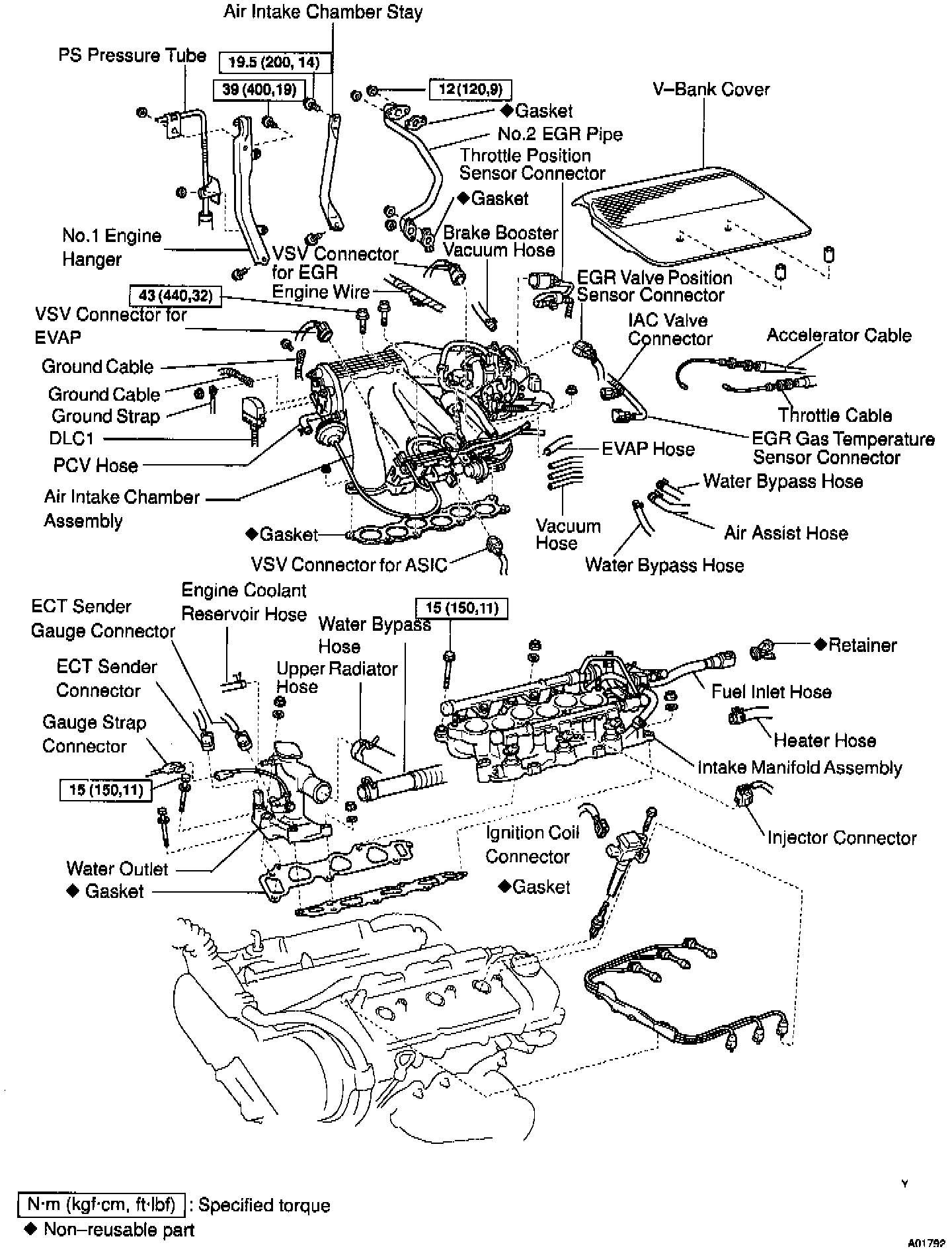

UPPER AND LOWER INTAKE MANIFOLD ASSEMBLIES

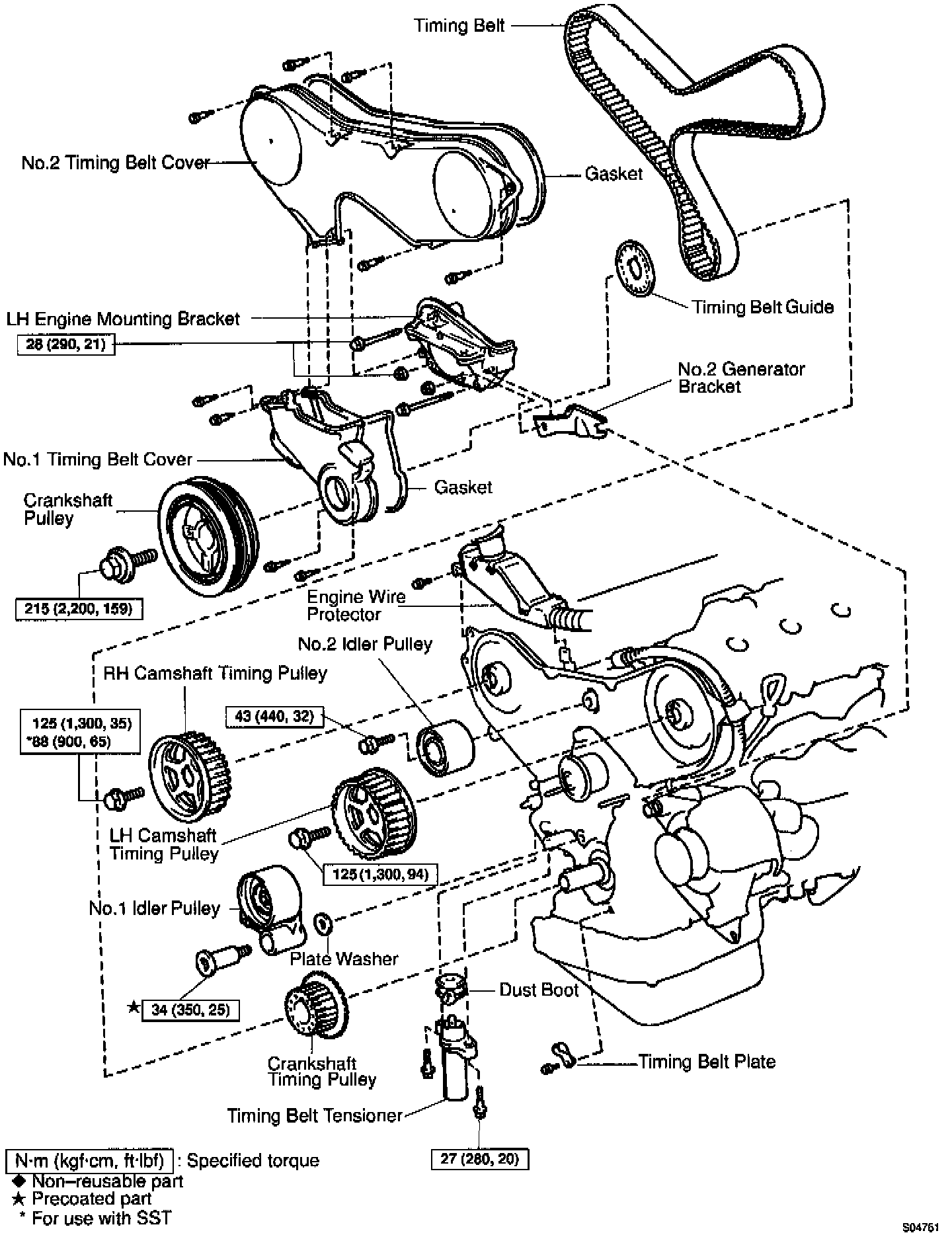

TIMING BELT, TIMING BELT PULLEYS AND TIMING BELT COVERS

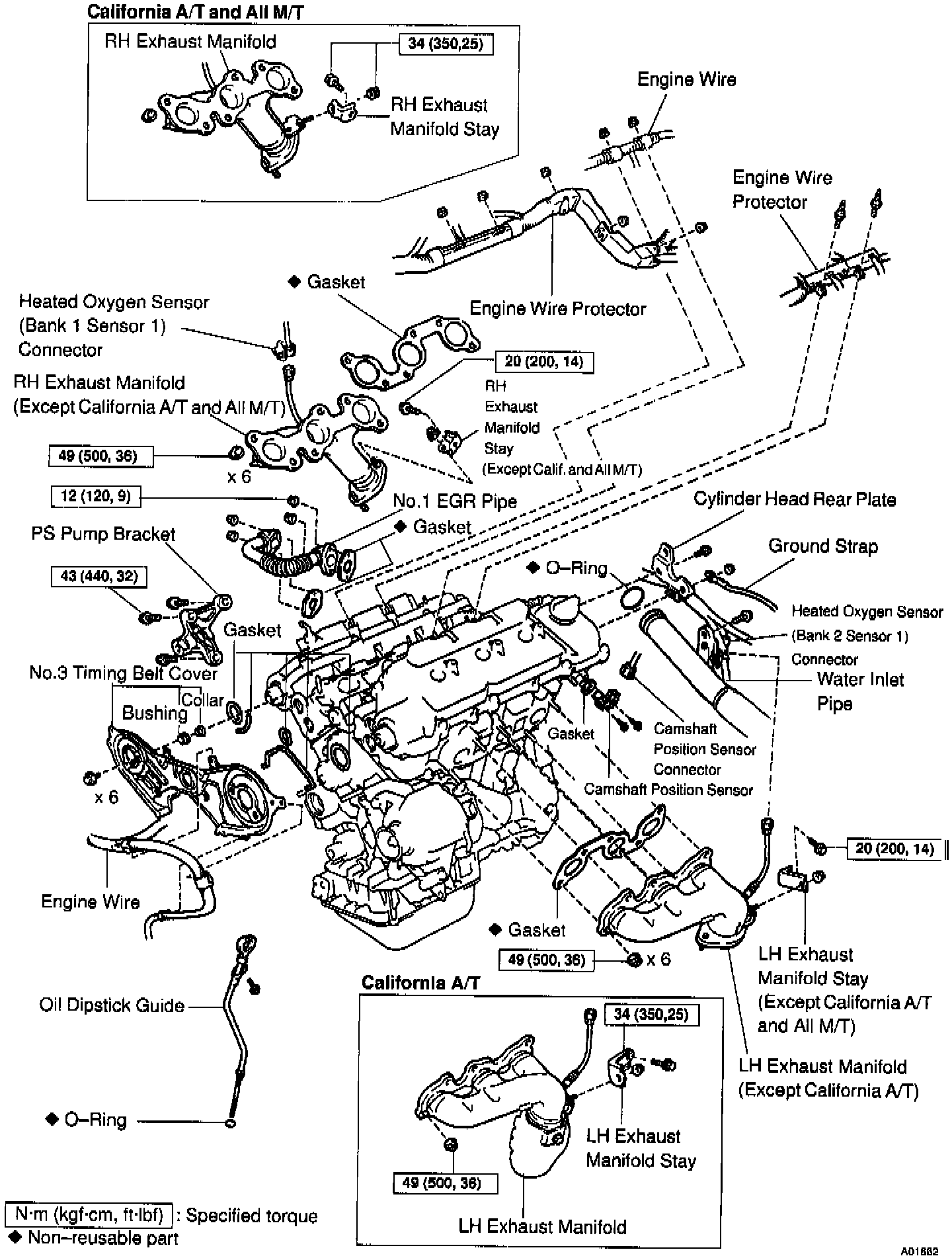

EXHAUST MANIFOLD ASSEMBLY

CYLINDER HEAD, VALVE ASSEMBLIES AND CAMSHAFT ASSEMBLIES
