Headlamp: Service and Repair
REPLACING HEADLIGHTa. Replace headlight.
b. Inspect headlight aim.
Do the following before inspection.
^ Make sure the body around the headlight is not deformed.
^ Park the vehicle on a level spot.
^ The driver gets into the driver's seat and puts the vehicle in a state ready for driving (with a full tank).
^ Bounce the vehicle several times.
c. Adjust headlight in vertical direction.
1. Using adjusting screw A, adjust the headlight aim to the specifications.

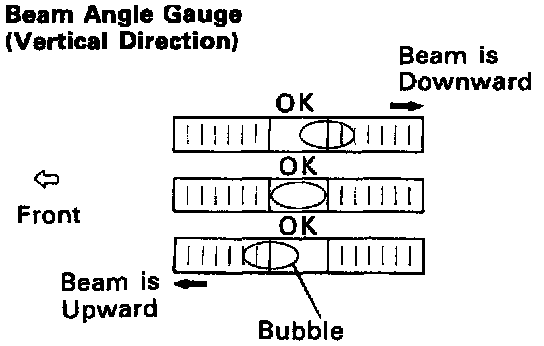

2. Make sure the gauge bubble is within the acceptable range.
HINT: If the gauge bubble is outside the acceptable range, check that the vehicle is parked on a level spot.
Readjust the headlight aim after parking the vehicle on a level spot.
d. Adjust headlight in horizontal direction.
1. Using adjusting screw B, adjust the headlight aim to the specifications.

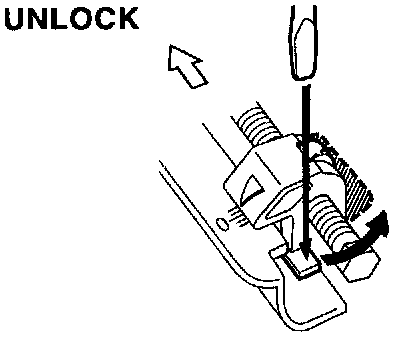

2. Using a screwdriver, unlock the indicator nut C.

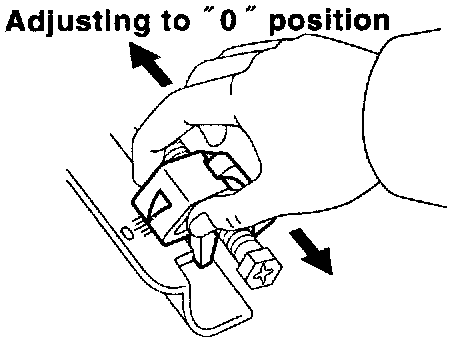

3. Slide the indicator nut C to set the top of the triangle mark to the "0" position.

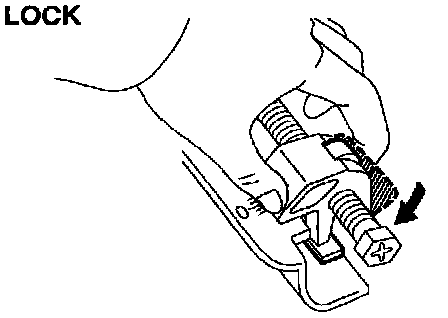

4. Press in the indicator nut C until it locks securely.
