ABS (Antilock Brake System)





HINT:
- Using SST 09843-18020, connect the terminals Tc and E1, and remove the short pin.
- If any abnormality is not found when inspection parts, inspect the ECU.

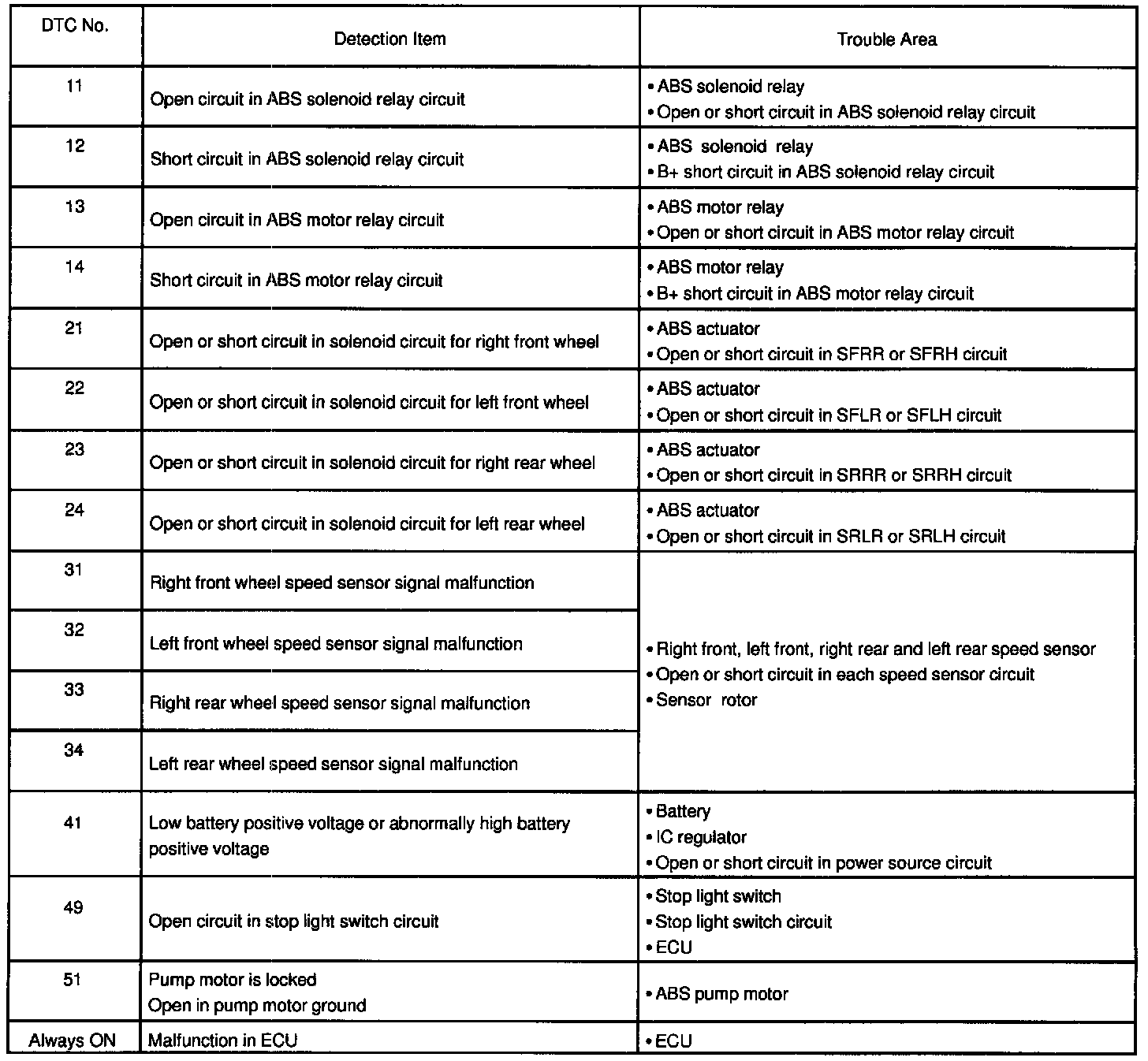

- If a malfunction code is displayed during the DTC check, check the circuit listed for that the code.
