Hydraulic Control Assembly - Antilock Brakes: Service and Repair

REMOVAL




1. Using Special Service Tool (SST) 09023-00100 or equivalent, disconnect the brake lines from the ABS actuator.

Torque: 15 Nm (11 ft. lbs.)

2. Disconnect 2 connectors.

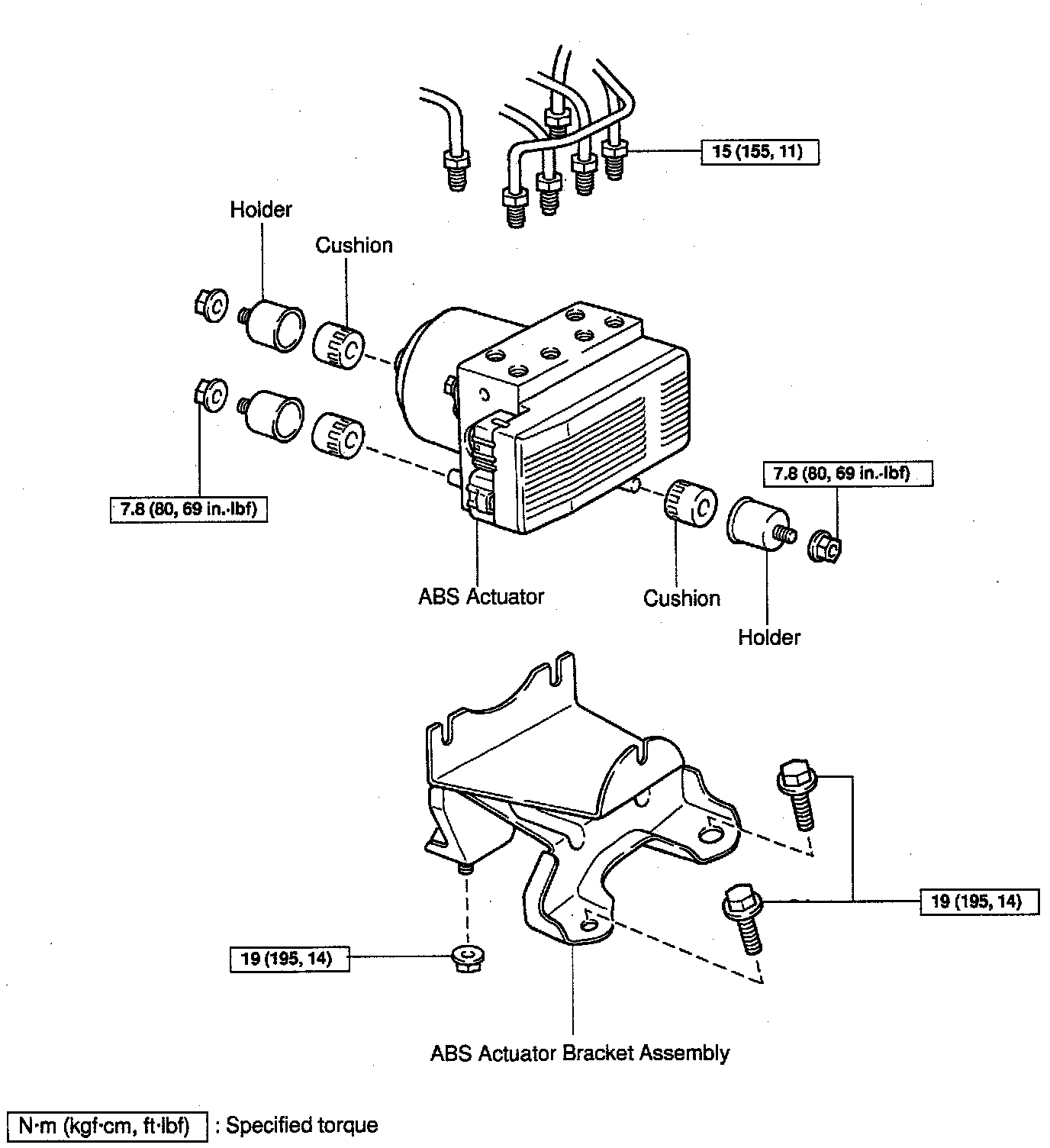

3. Remove ABS actuator.
a. Remove the 2 bolts, nuts and ABS actuator assembly.

Torque: 19 Nm (14 ft. lbs.)

b. Remove the 3 nuts and ABS actuator from the actuator bracket assembly.

Torque: 7.8 Nm (69 inch lbs.)

c. Remove the 3 cushions and holders from the ABS actuator.

INSTALLATION
Instal in the reverse order of removal.
1. After installation, fill brake reservoir with brake fluid and bleed brake system.
2. Check for leaks.
