Scan Tool Testing and Procedures

ENGINE OPERATING CONDITION

NOTICE: The values given below for "Normal Condition" are representative values, so a vehicle may still be normal even if its value from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.

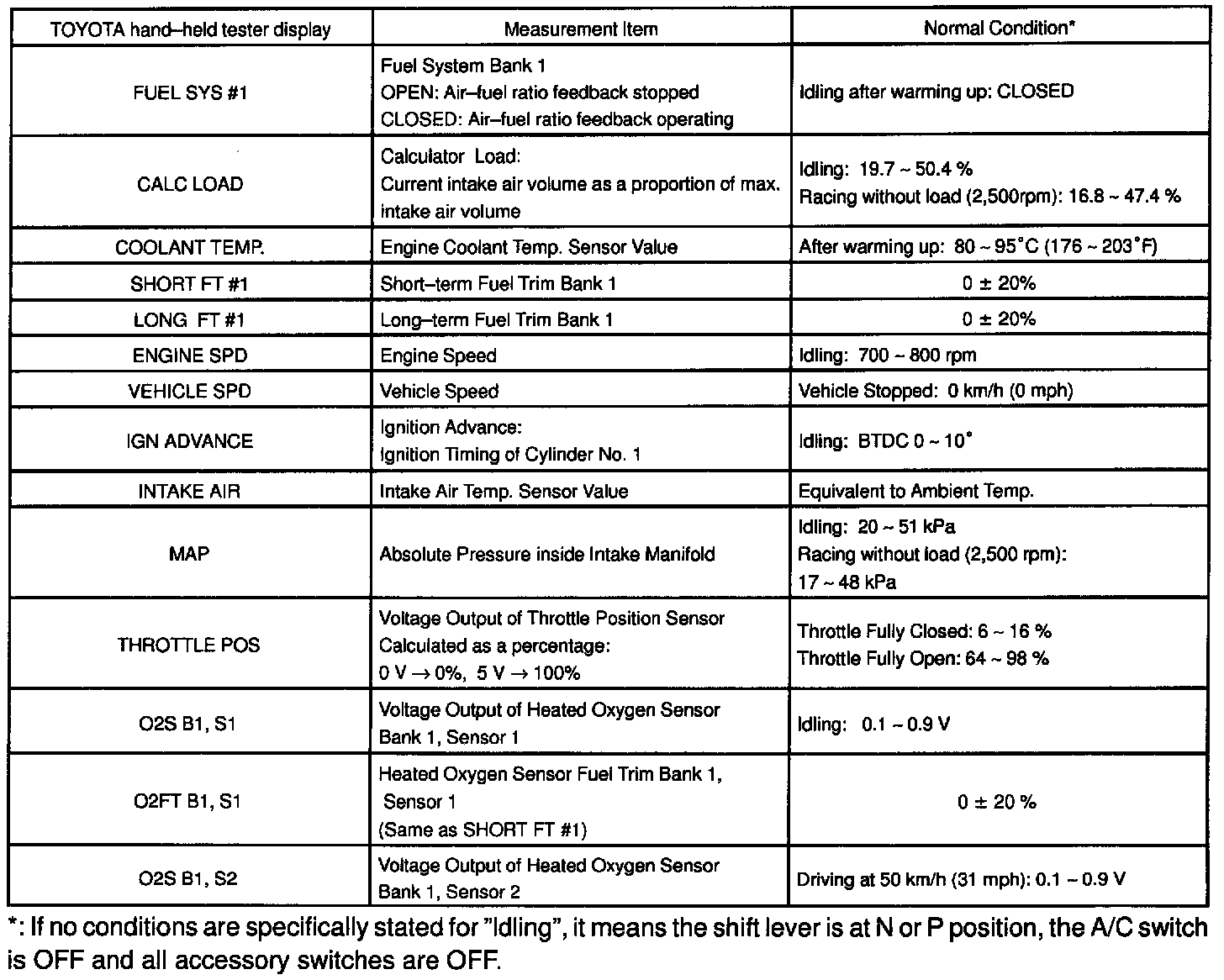

(a) CARB mandated signals.

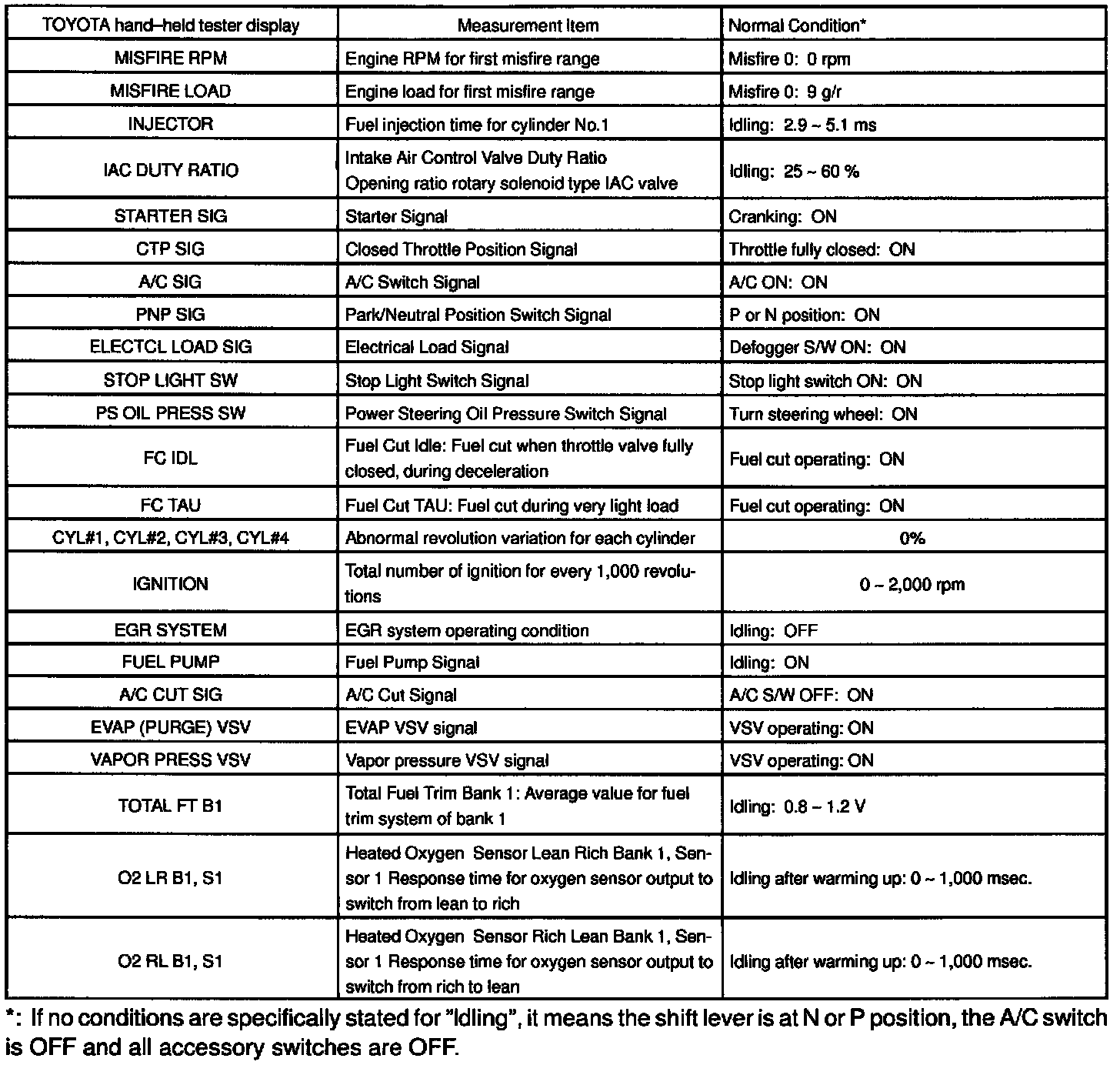

(b) TOYOTA Enhanced Signals.
