Cylinder Head Assembly

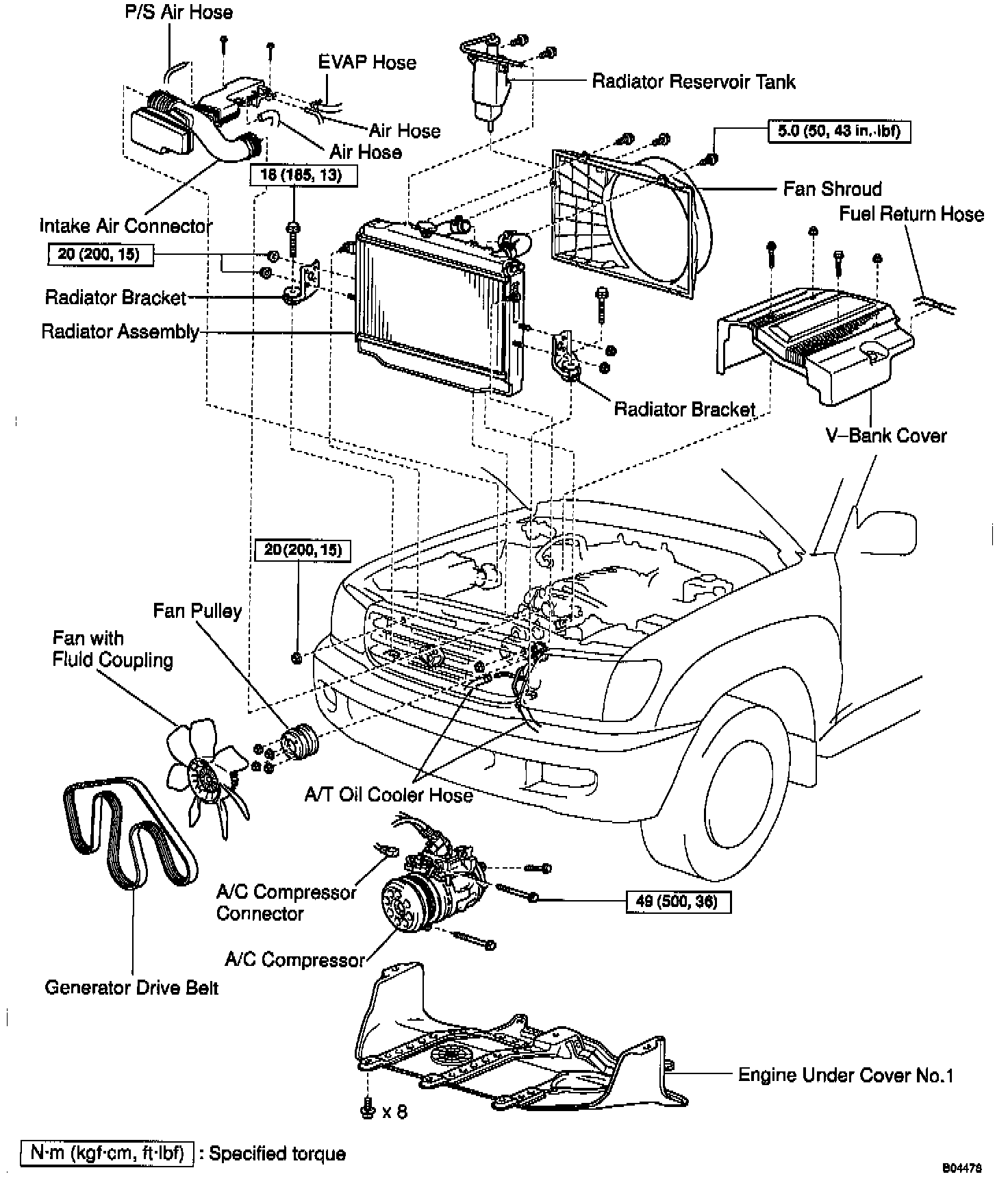

Radiator, V-Bank Cover, A/C Compressor

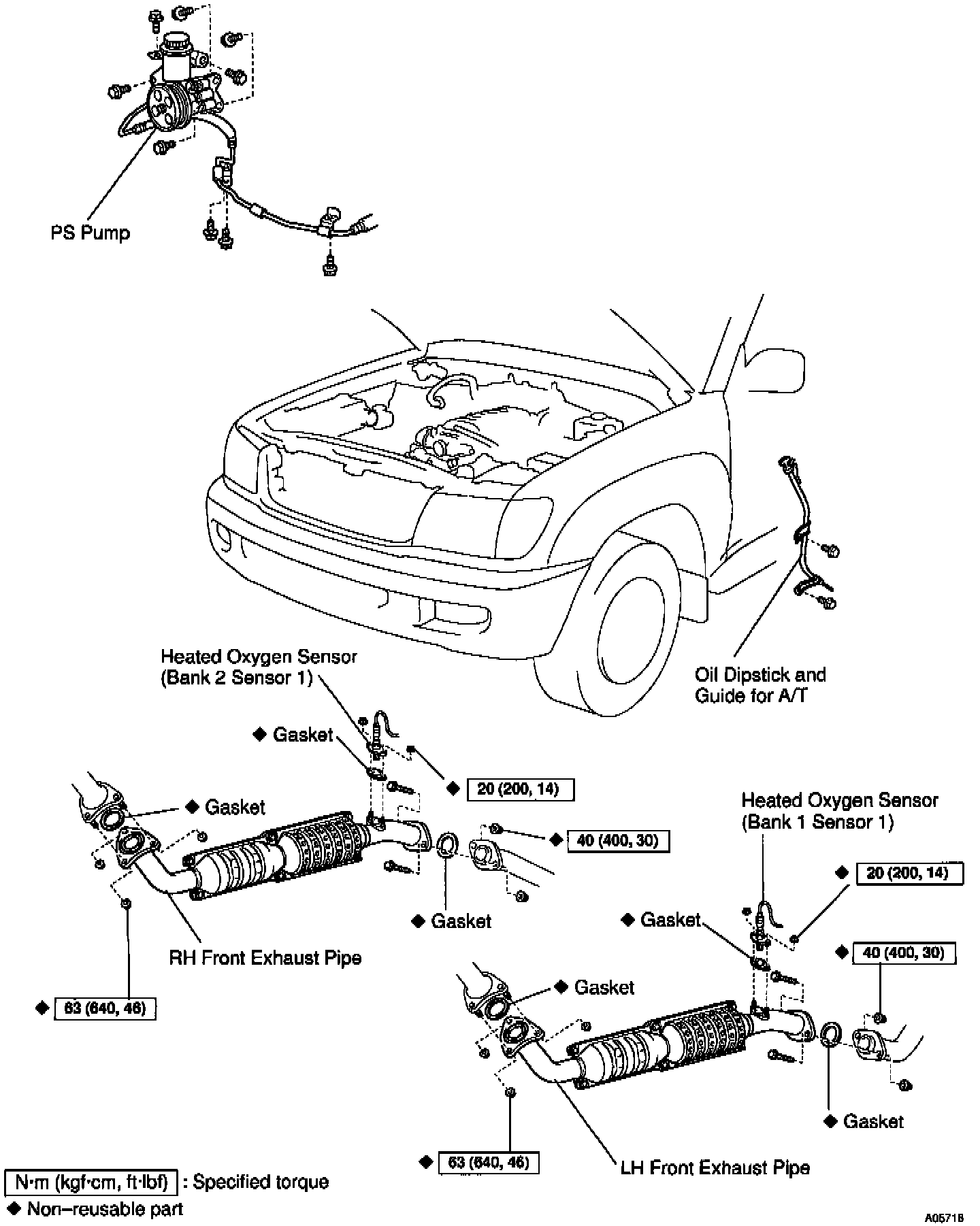

Exhaust Pipes, PS Pump

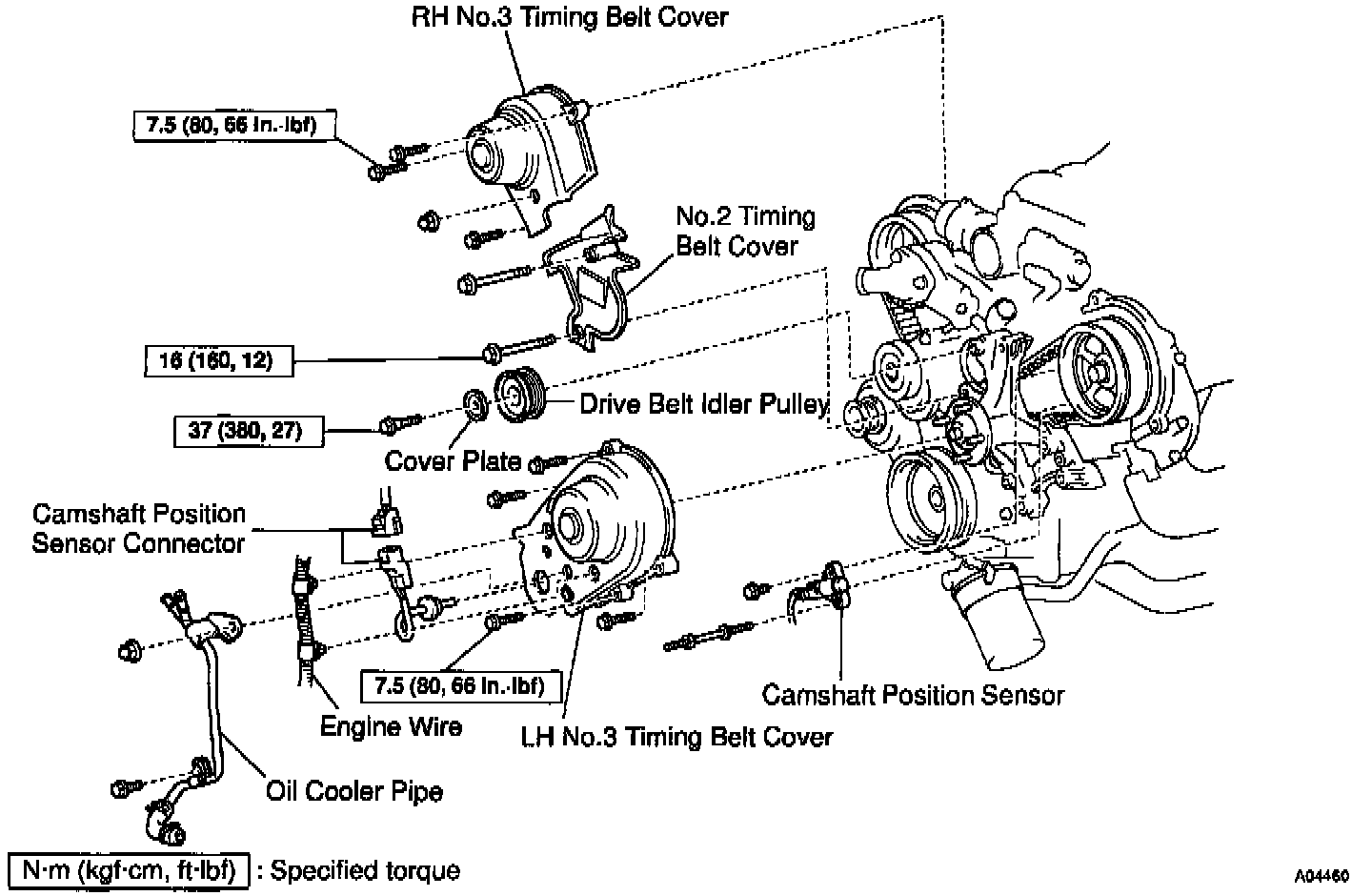

Timing Belt Covers

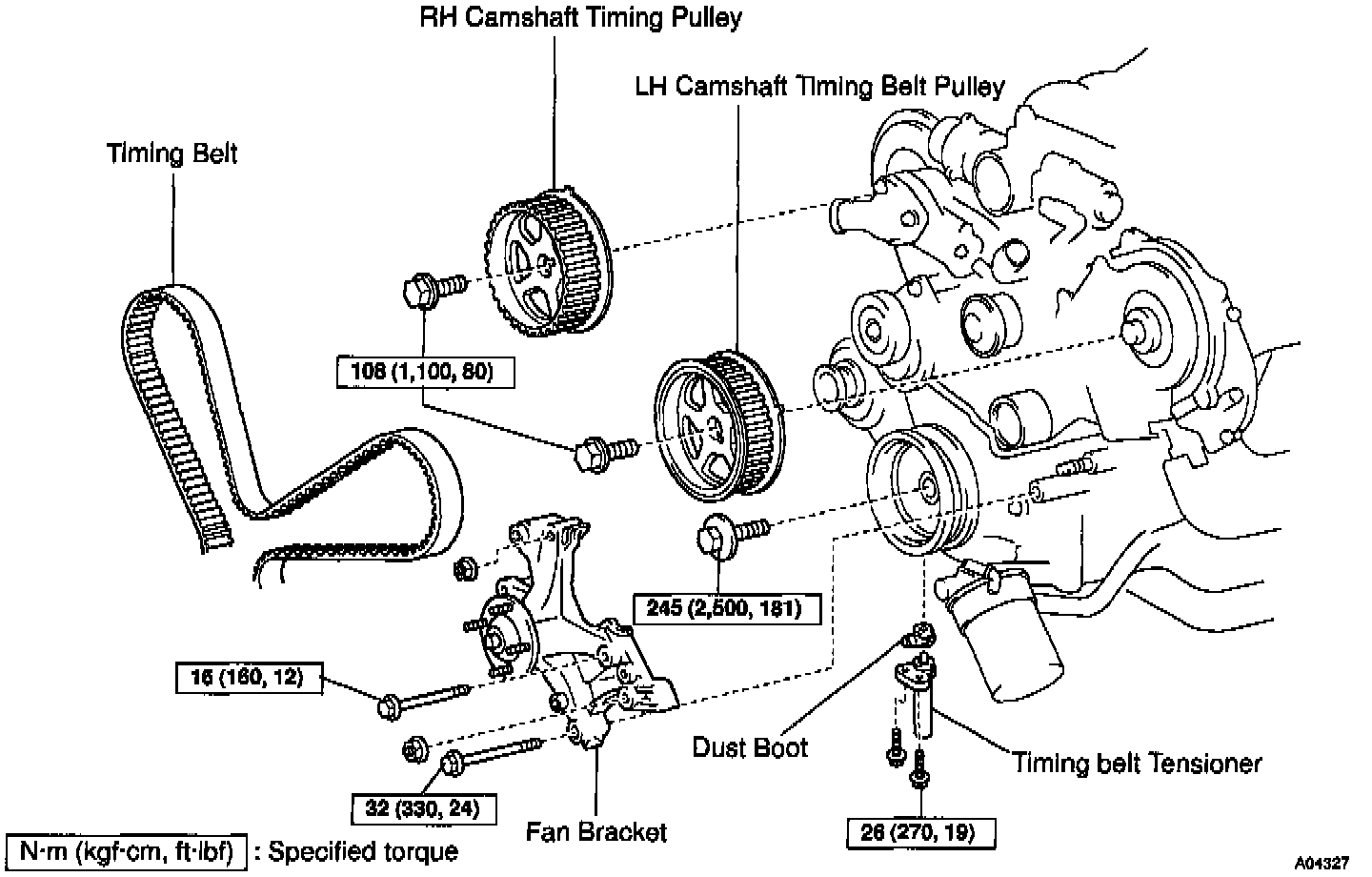

Timing Pulleys, Timing Belt Tensioner

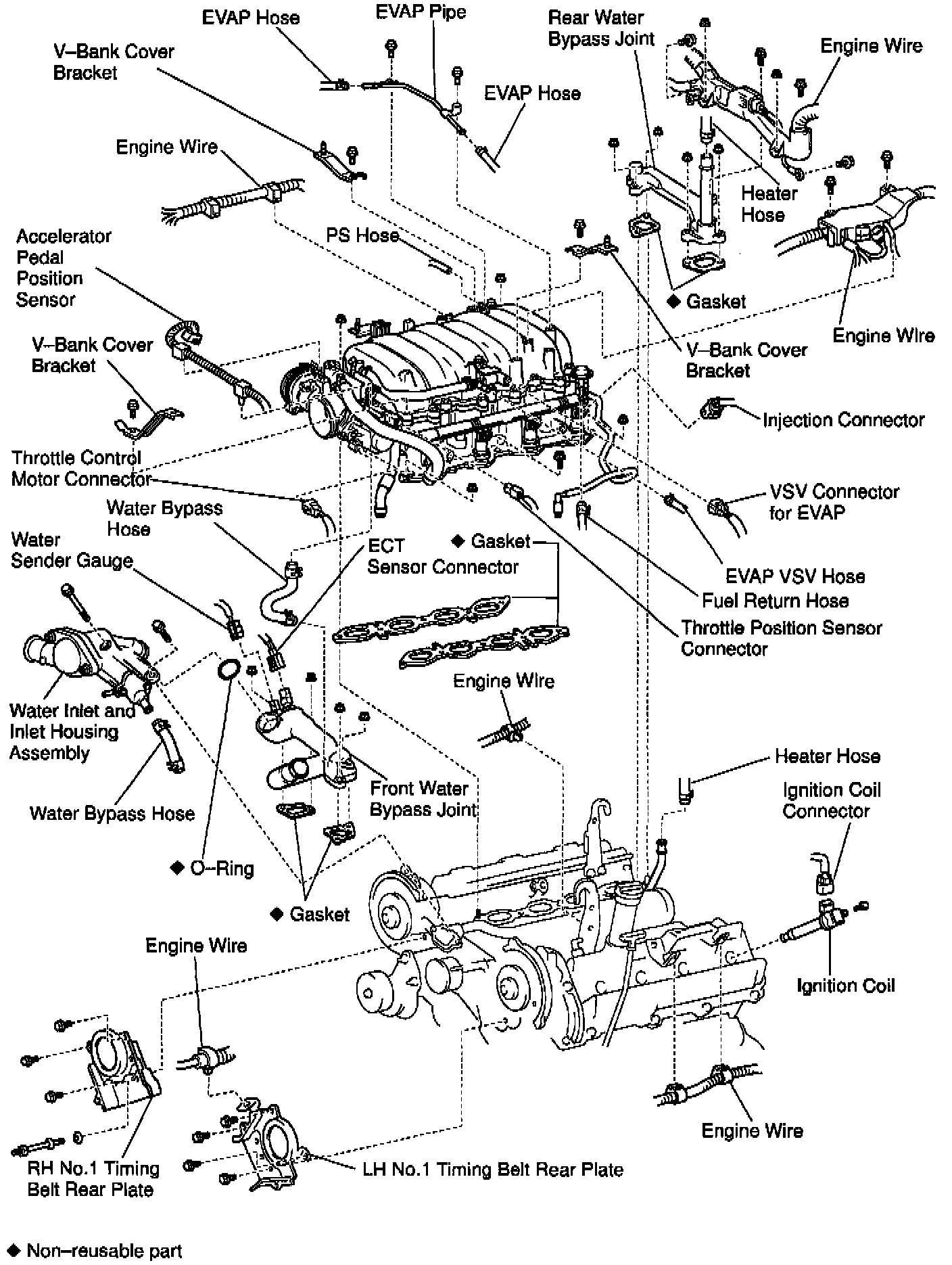

Intake Manifold

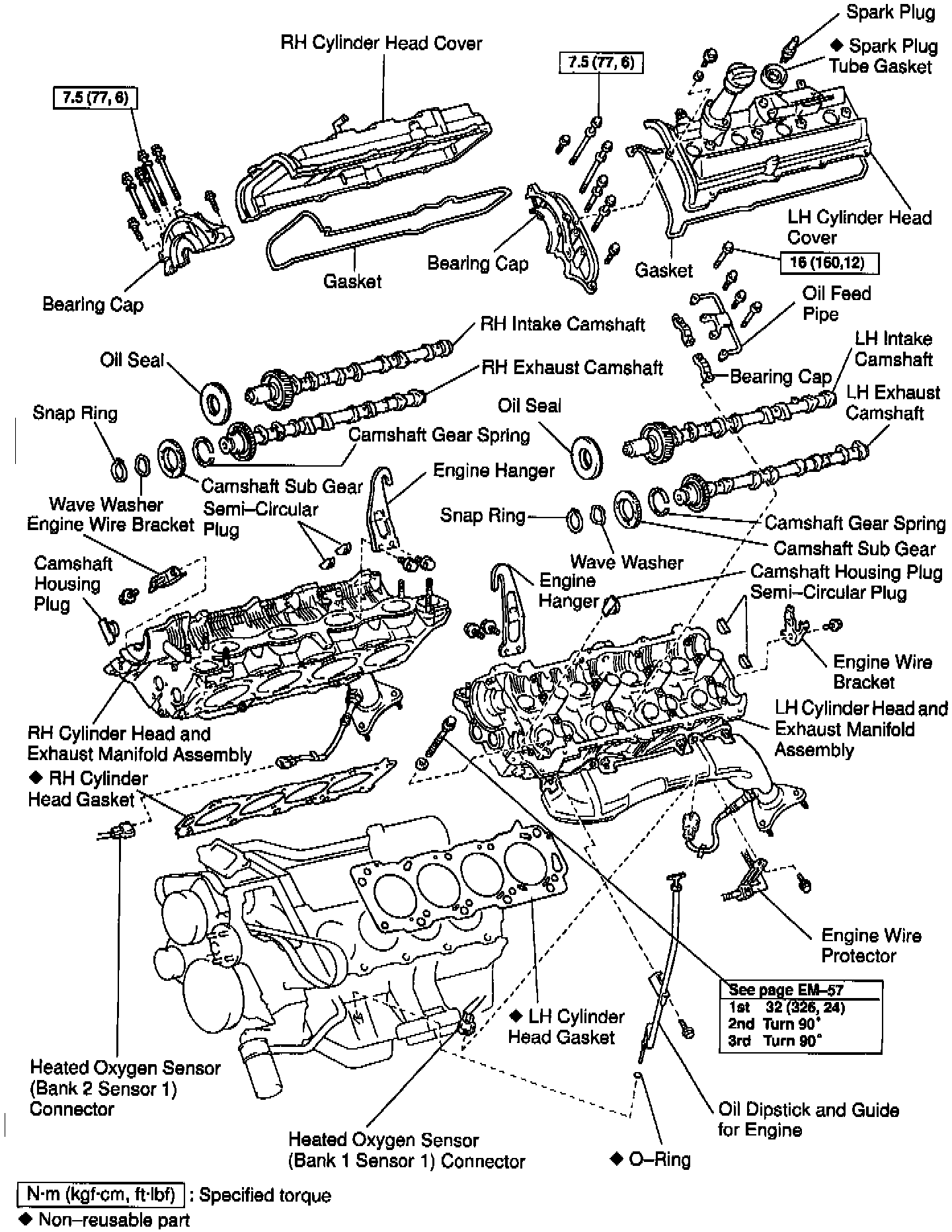

Camshafts, Cyl. Head Removal

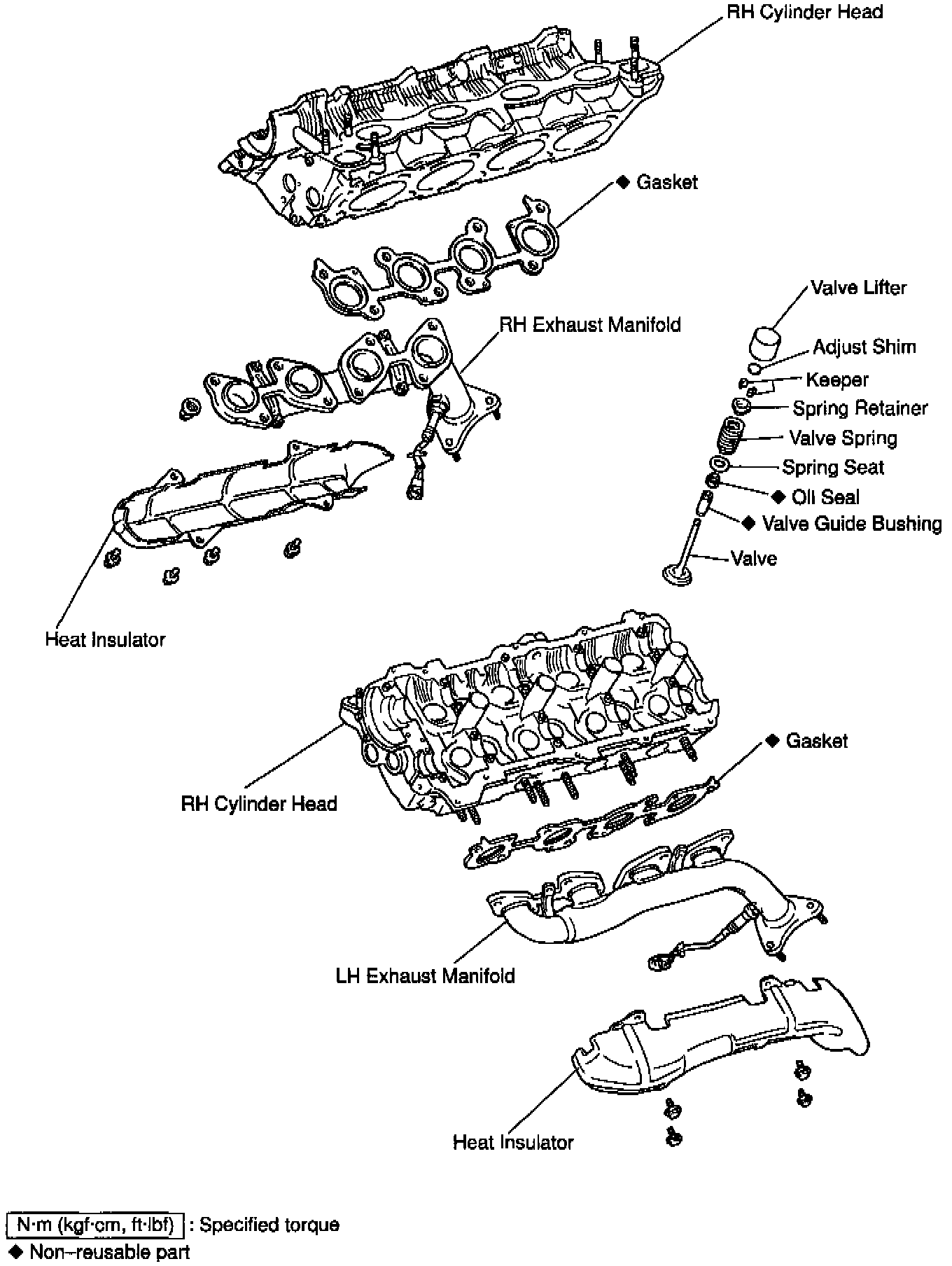

Valves, Exhaust Manifolds
