General Torque Specifications

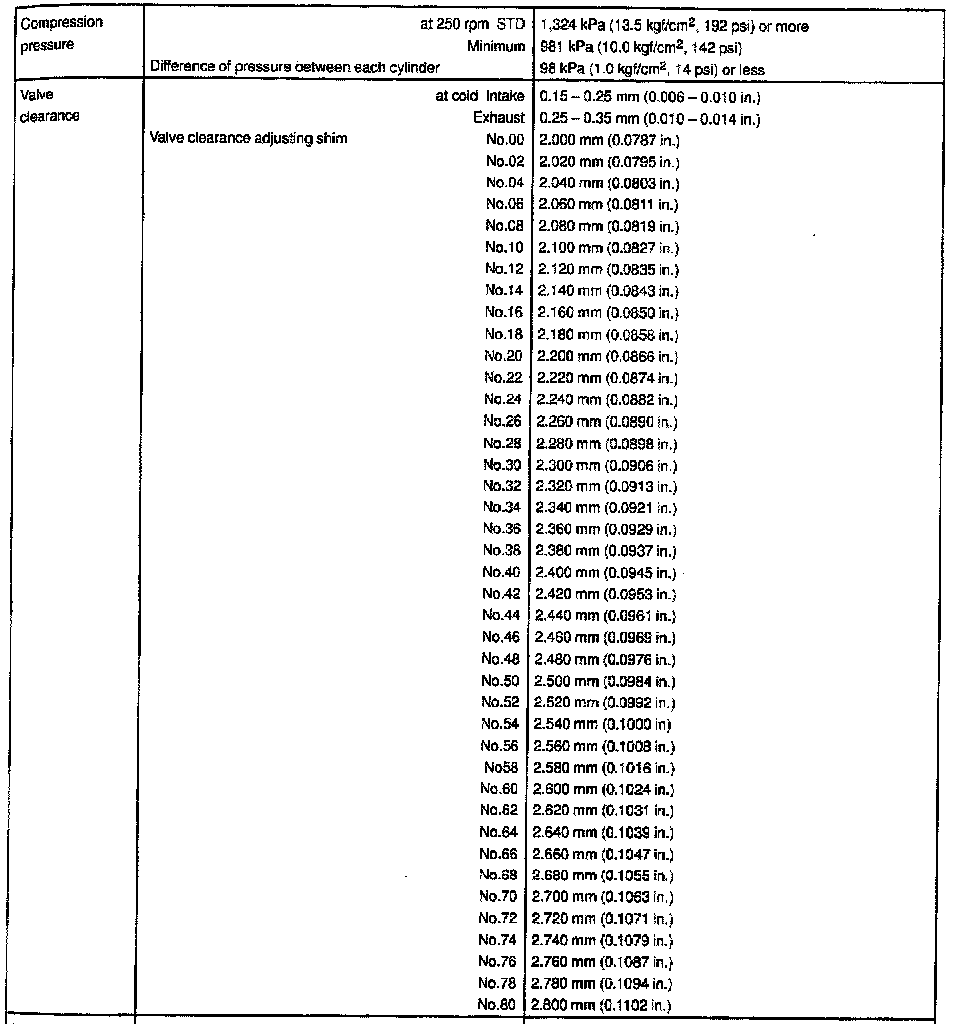

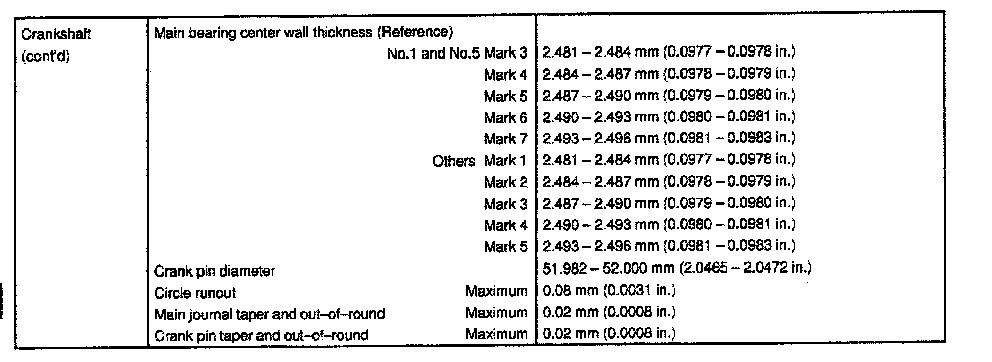

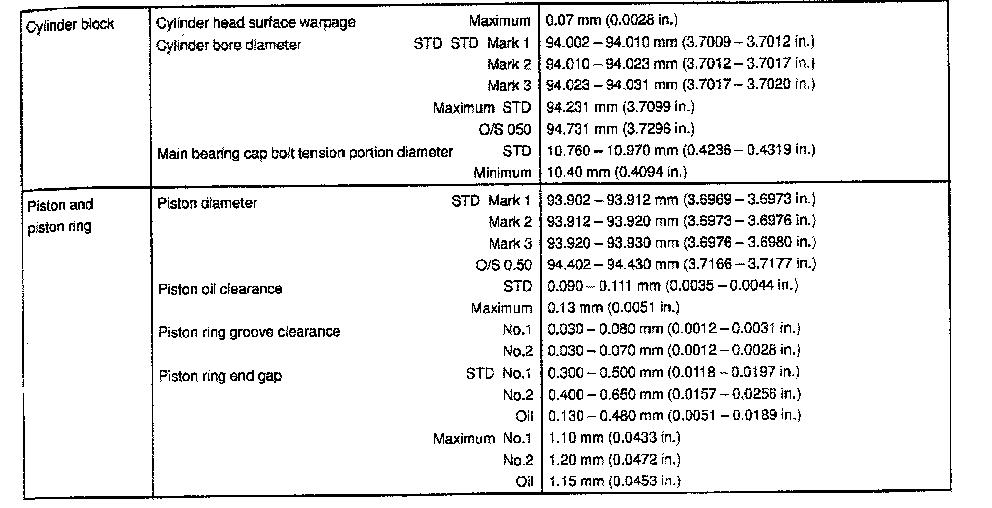

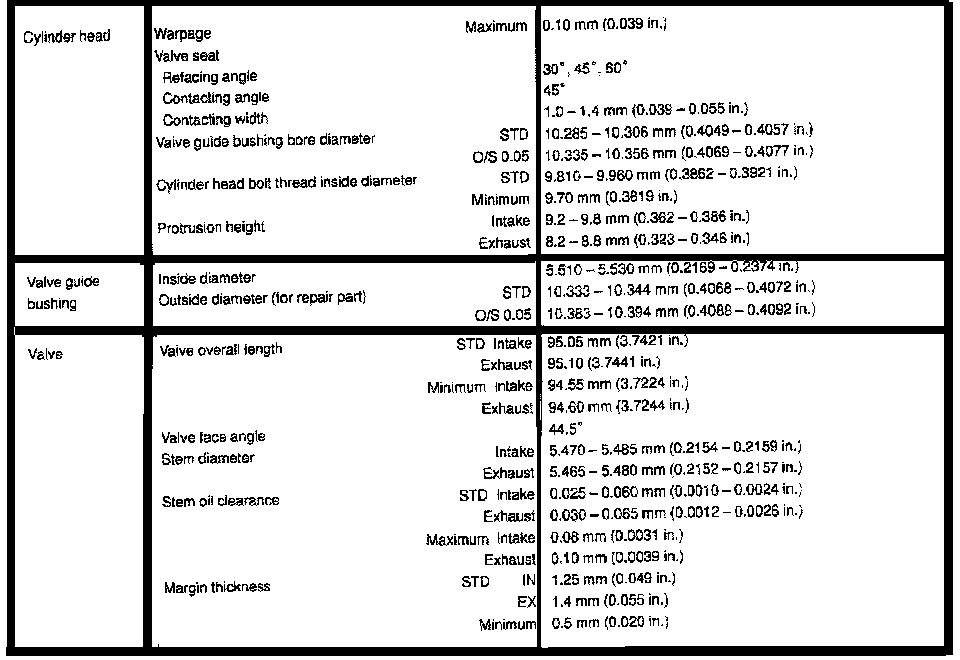

4.5L Engine Mechanical Data:

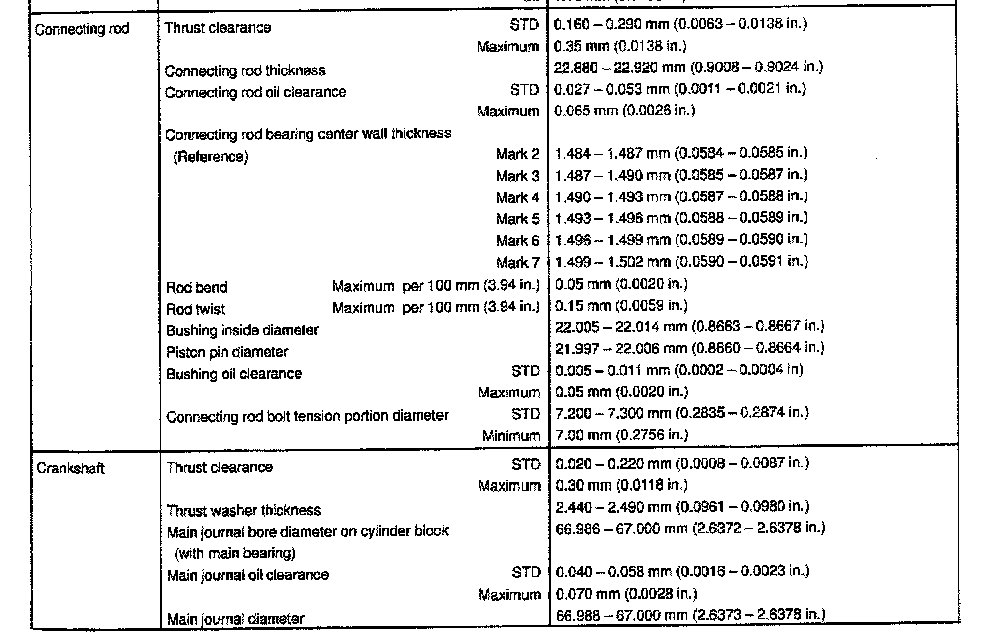

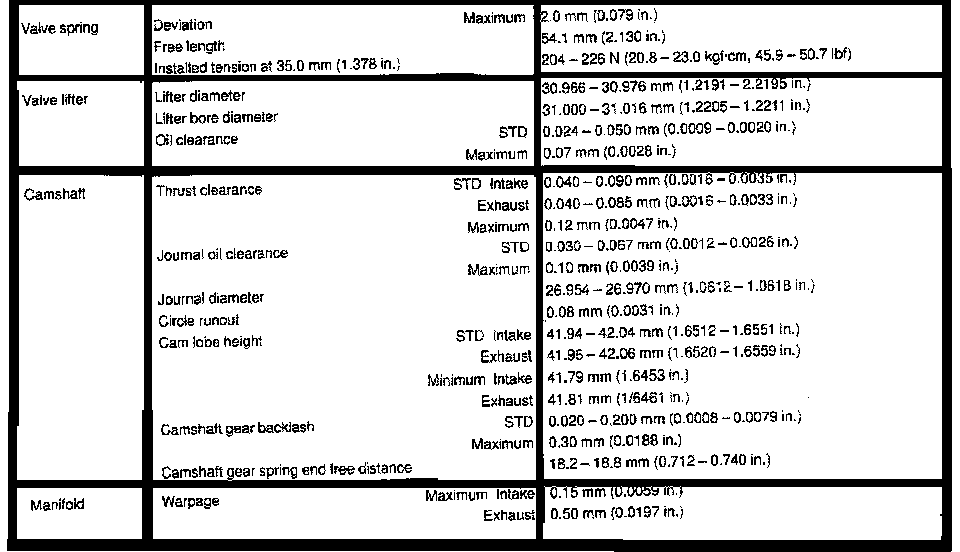

4.5L Engine Mechanical Cont.:




4.5L Engine Mechanical Cont.:





4.5L Engine Mechanical Cont.:




4.5L Engine Mechanical Cont.:





4.5L Engine Mechanical Cont.:

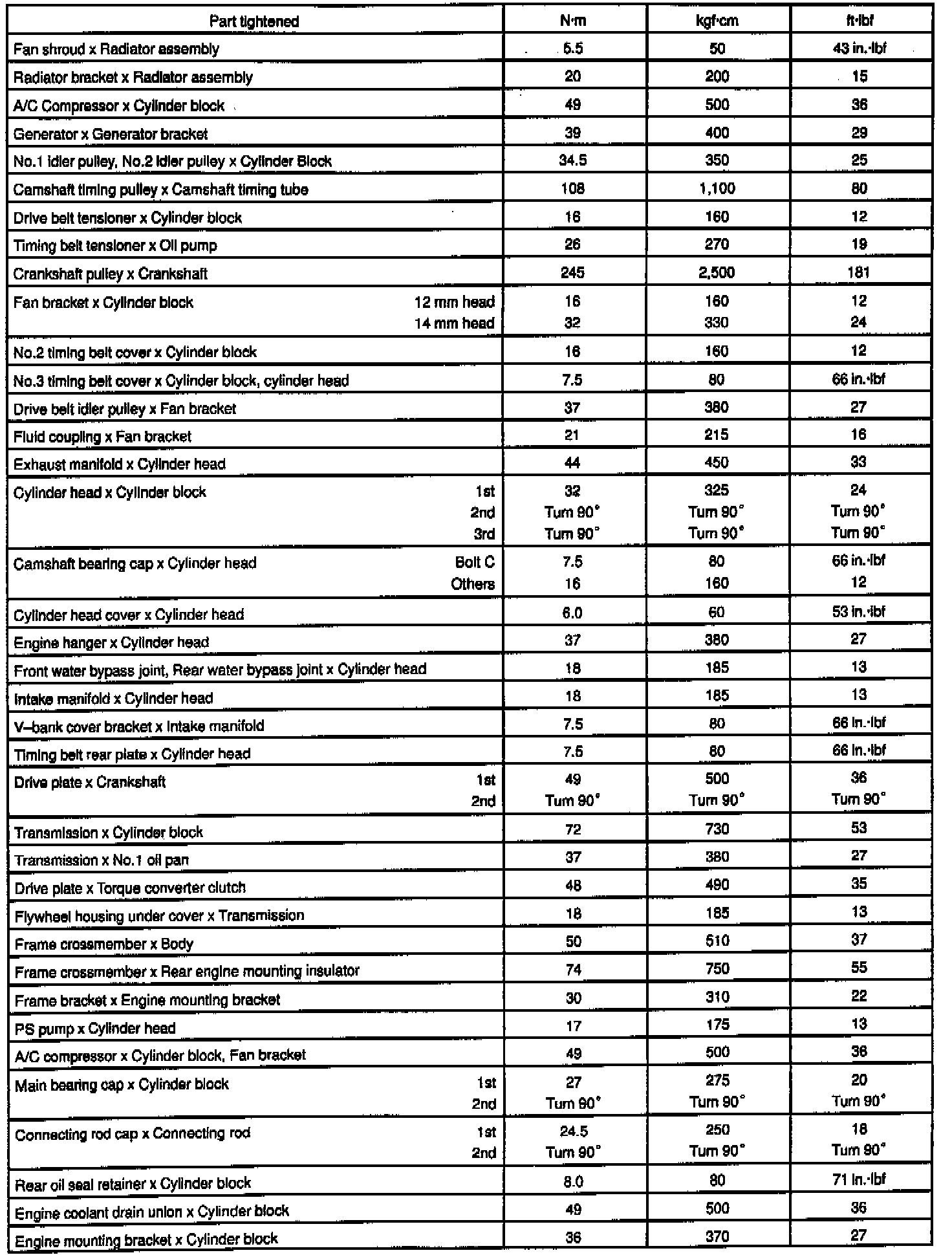

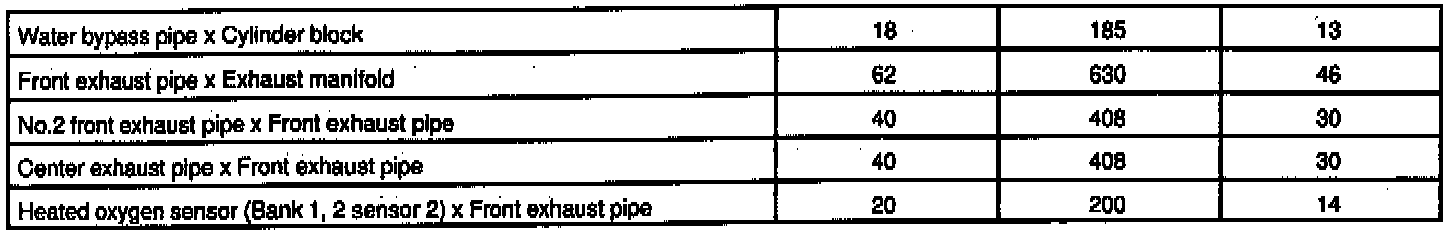

TORQUE CHART








TORQUE SEQUENCES

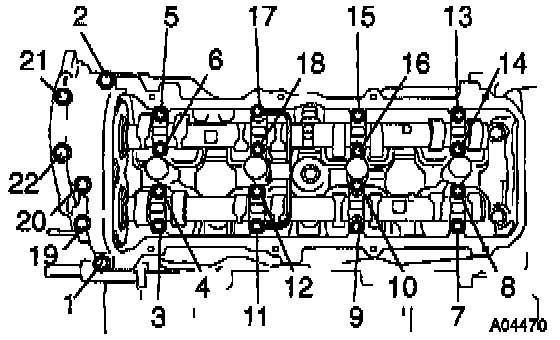

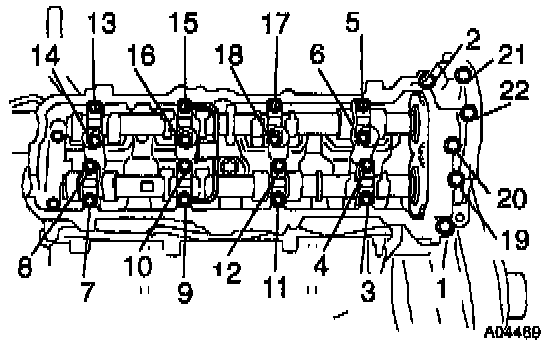

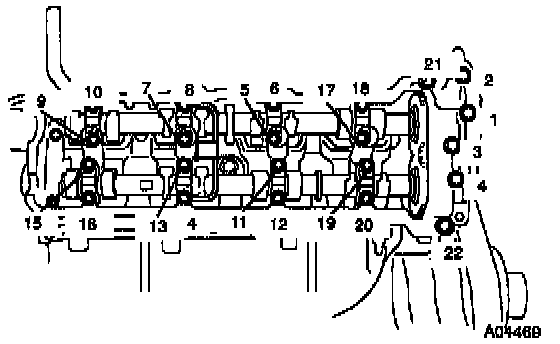

Camshaft Bearing Cap Removal Sequence
RH Cylinder Head




LH Cylinder Head

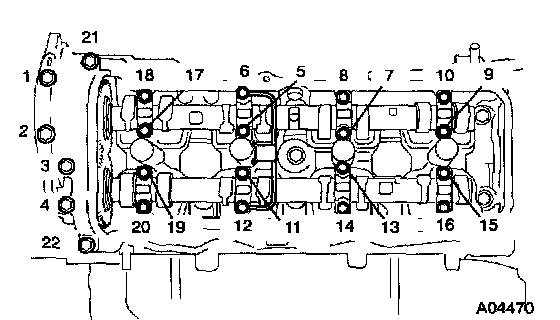

Camshaft Bearing Cap Tightening Sequence
RH Cylinder Head




LH Cylinder Head





Note: Proper installation procedures are essential to camshaft durability and to avoid damage. Refer to Camshaft, Engine; Service and Repair for detailed camshaft installation procedures.

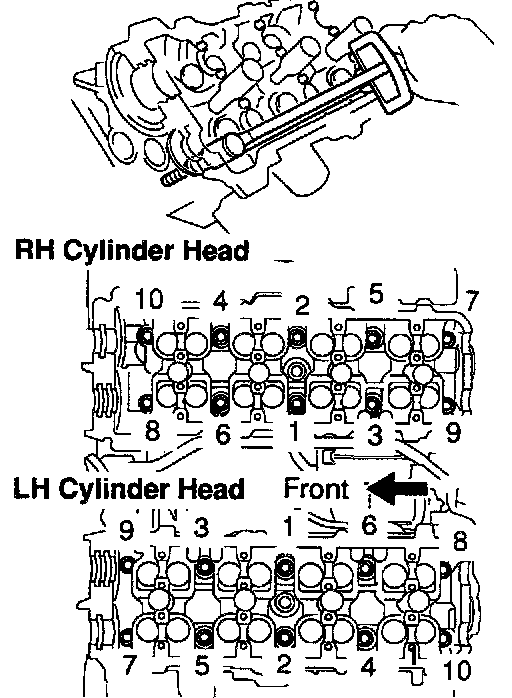

Cylinder Head Bolt Removal Sequence

Cylinder Head Removal Sequence:






Cylinder Head Bolt Tightening Sequence

Cylinder Head Installation Sequence:

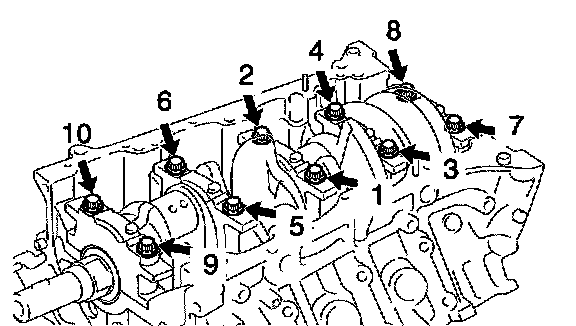

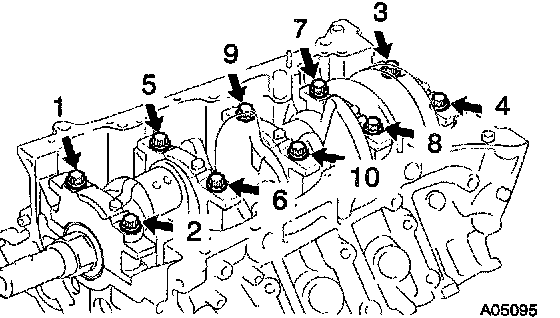

Main Bearing Cap Bolts Removal Sequence





Main Bearing Cap Bolts Tightening Sequence

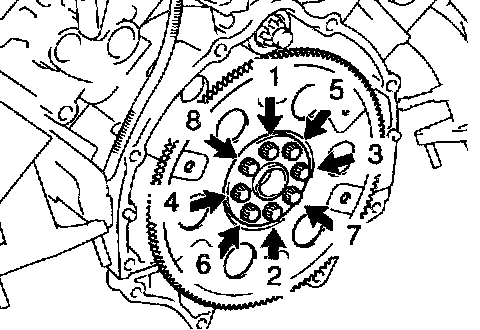

Drive Plate Bolt Tightening Sequence





See also: Refer to Diagrams/Exploded Views at component level.
