Electronic Brake Control Module: Testing and Inspection

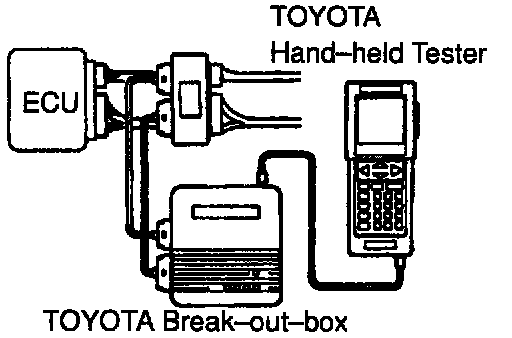

ECU TERMINAL MEASUREMENT Using TOYOTA break-out-box and TOYOTA hand-held tester, measure the ECU terminal values.
(1)
Turn the ignition switch OFF.
(2)
Hook up the TOYOTA hand-held tester and TOYOTA break-out-box to the vehicle.
(3)
Turn the ignition switch ON.
(4)
Read the ECU input /output values by following the prompts on the tester screen.

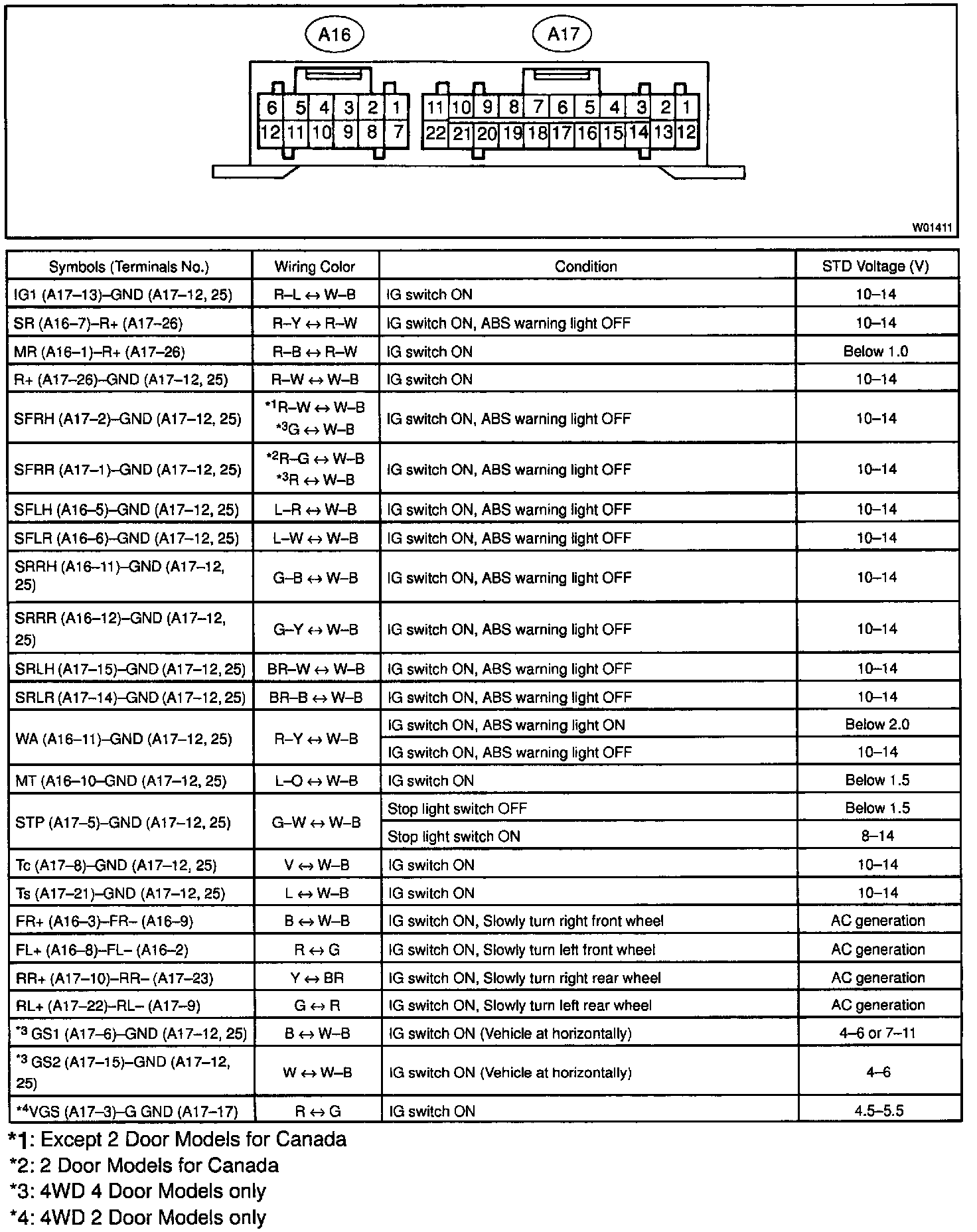

ECU TERMINAL VALUES
