Headlamp Control Module: Testing and Inspection

Auto ON:
INSPECT AUTOMATIC LIGHT CONTROL
a. Turn the ignition switch ON.
b. Turn the light control switch to AUTO.

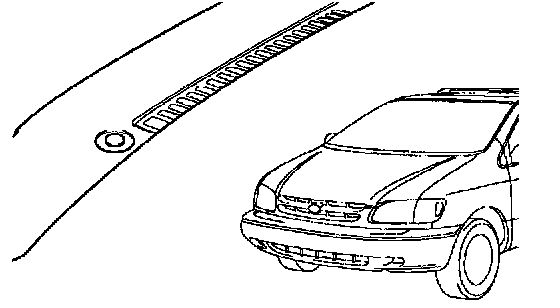

c. Gradually cover the top of the sensor.
d. Verify that the accessory lights and the headlights turn ON.




Auto OFF:
INSPECT AUTOMATIC LIGHT CONTROL
a. Gradually expose the sensor.
b. Verify that the headlights and the accessory lights turn OFF.

INSPECT LIGHT-OFF CONDITION
a. Turn the ignition switch ON.
b. Gradually cover the top of the sensor.
Lights auto ON:
c. Verify that the lights will go out when light control switch position is OFF or the area surrounding the sensor gets bright or open the driver's door while the ignition switch is OFF.

INSPECT LIGHTS ON CONDITION
a. Open the driver's door while the ignition switch is OFF.
b. Turn the light control switch to AUTO leaving the door open and cover the top of the sensor, and verify that the lights go on when the ignition switch is turned ON.
