General Torque Specifications

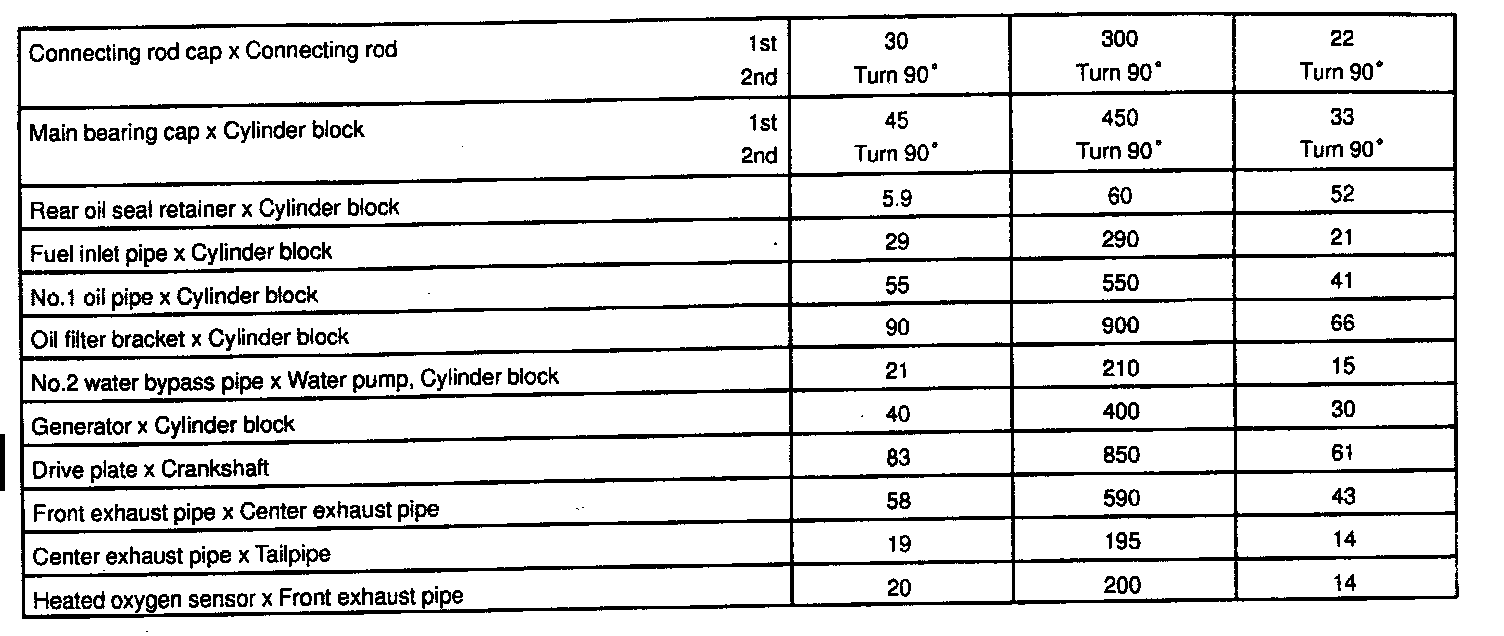

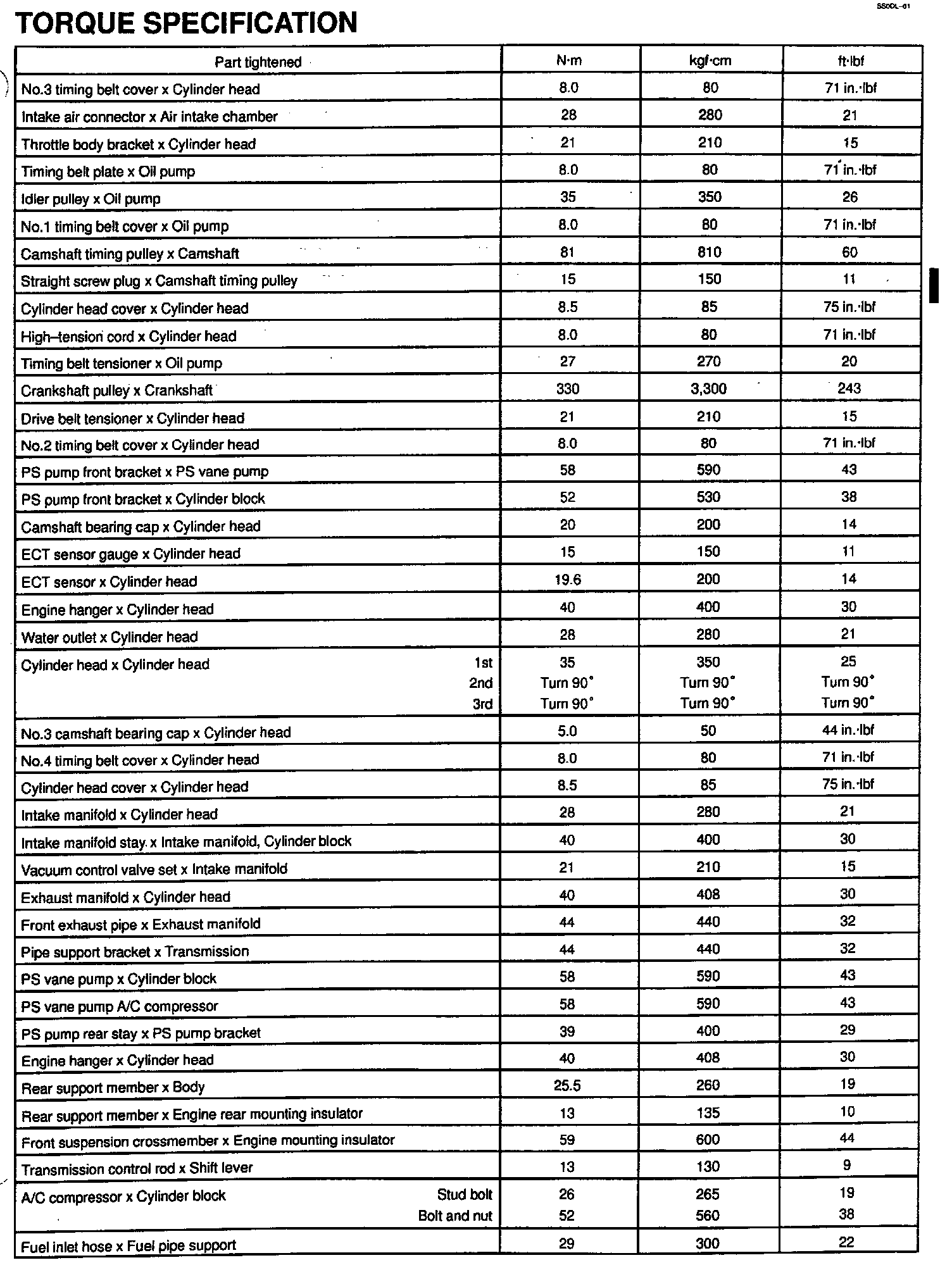

TORQUE CHART

TORQUE SEQUENCES

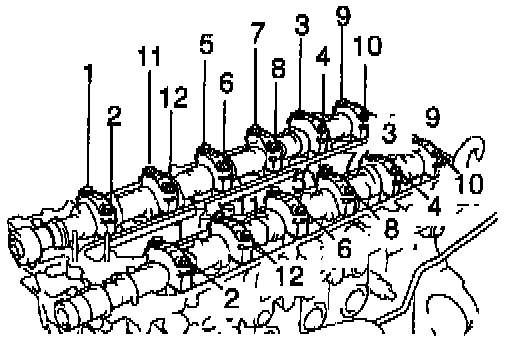

Camshaft Bearing Cap Removal Sequence:

Note: First, remove the No.1 and No.3 bearing caps. Then uniformly loosen and remove the remaining bearing caps in the sequence shown.

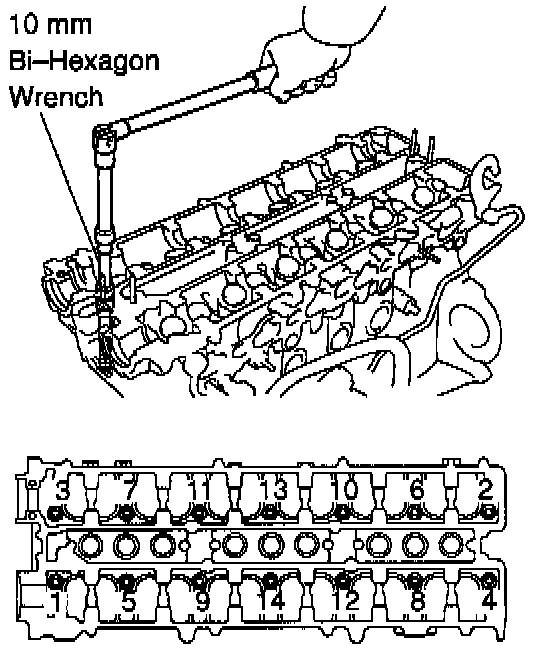

Cylinder Head Bolt Removal Sequence:

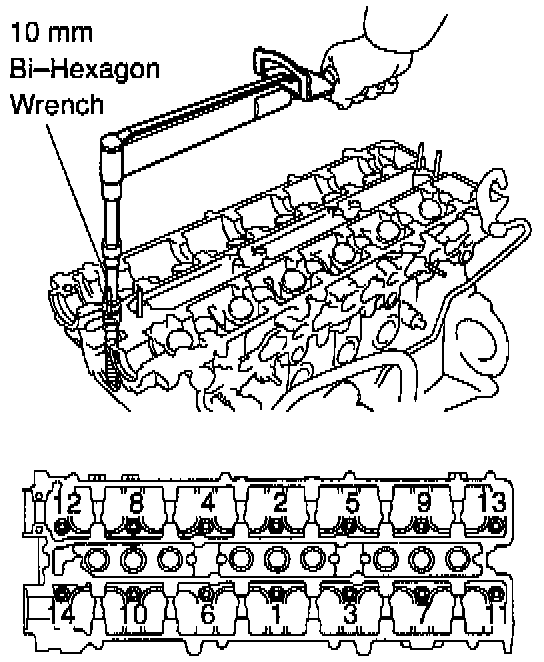

Cylinder Head Bolt Tightening Sequence:

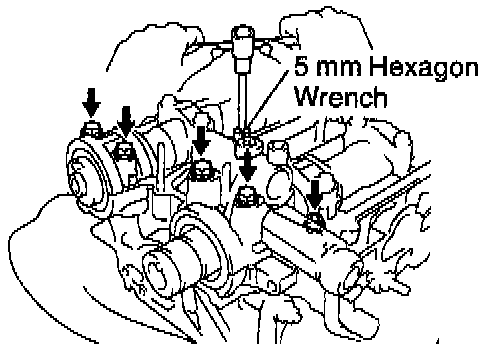

Camshaft Bearing Cap Tightening Sequence:

Note: Refer to Cylinder Head; Service and Repair for detailed installation procedures.

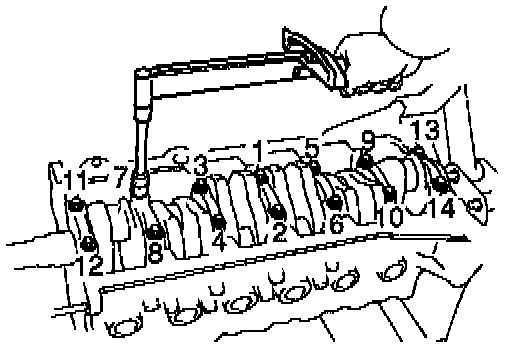

Main Bearing Cap Bolts Removal Sequence:

Main Bearing Cap Bolts Tightening Sequence:

Drive Plate Bolt Tightening Sequence:

See also: Refer to Diagrams/Exploded Views at component level.
