Clutch Switch Circuit
CIRCUIT DESCRIPTIONWhen the clutch pedal is depressed, the
clutch switch sends a signa to the cruise control ECU. When the signal is input to the cruise control ECU during cruise control driving, the cruise control ECU cancels cruise control.

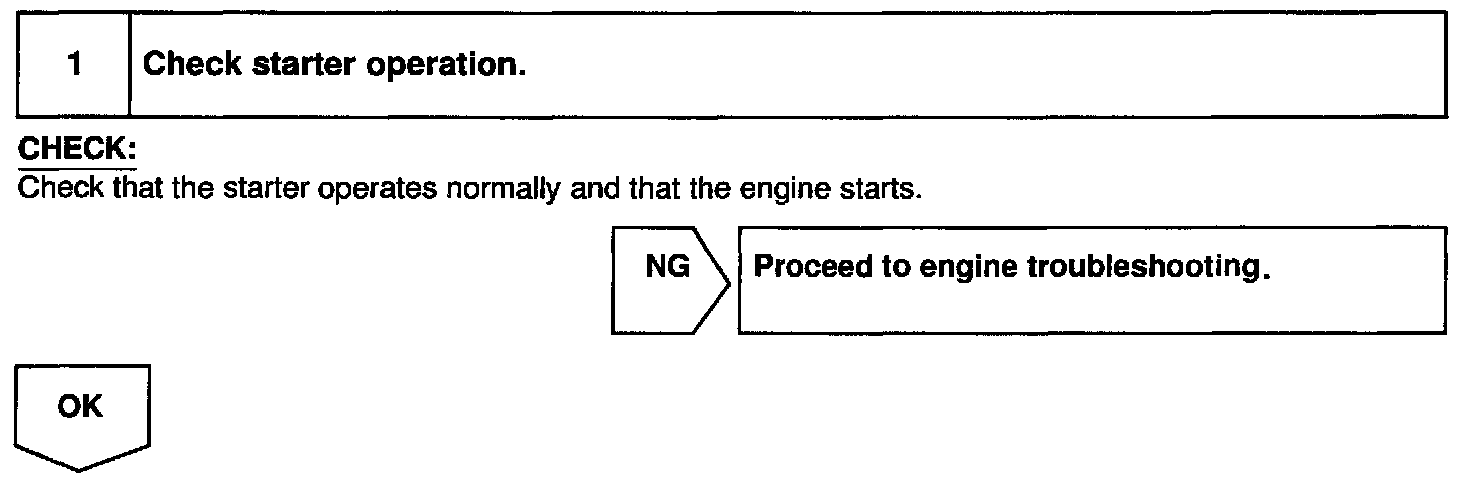

WIRING DIAGRAMStep 1:

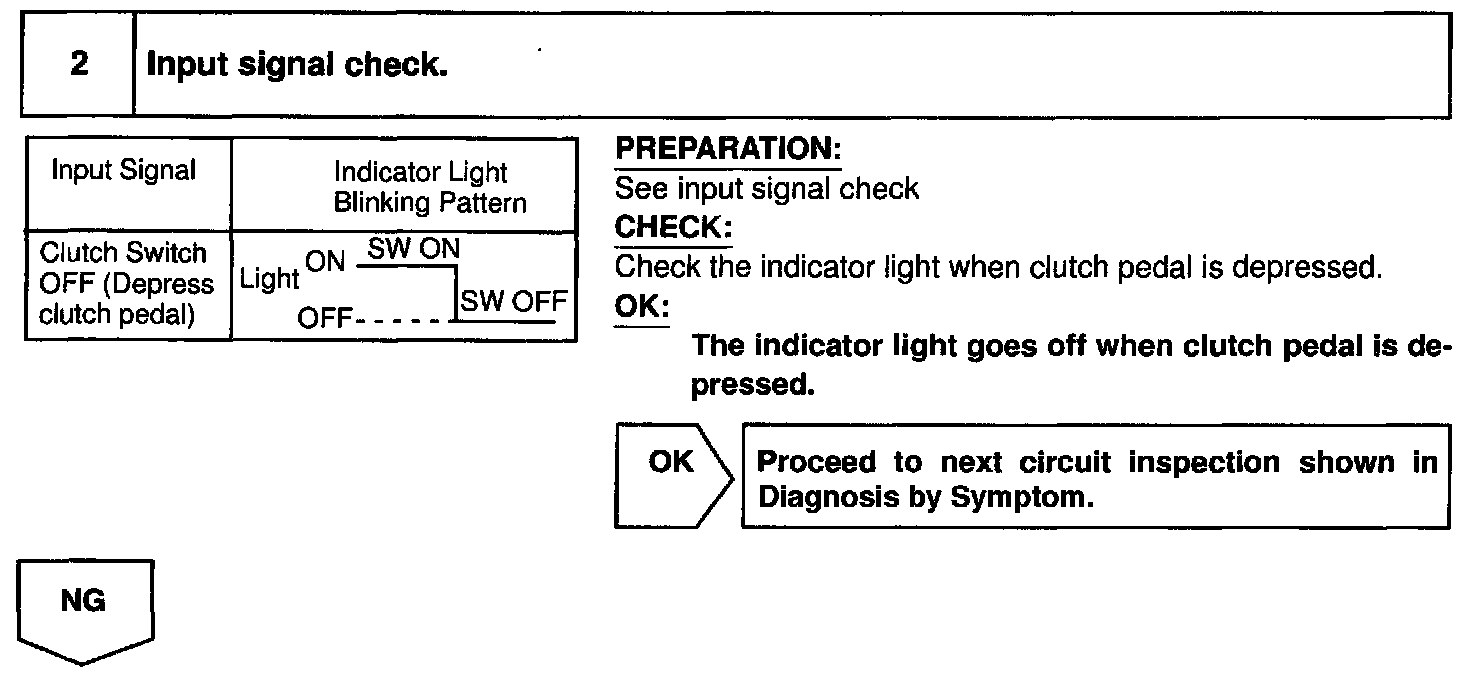

Step 2:

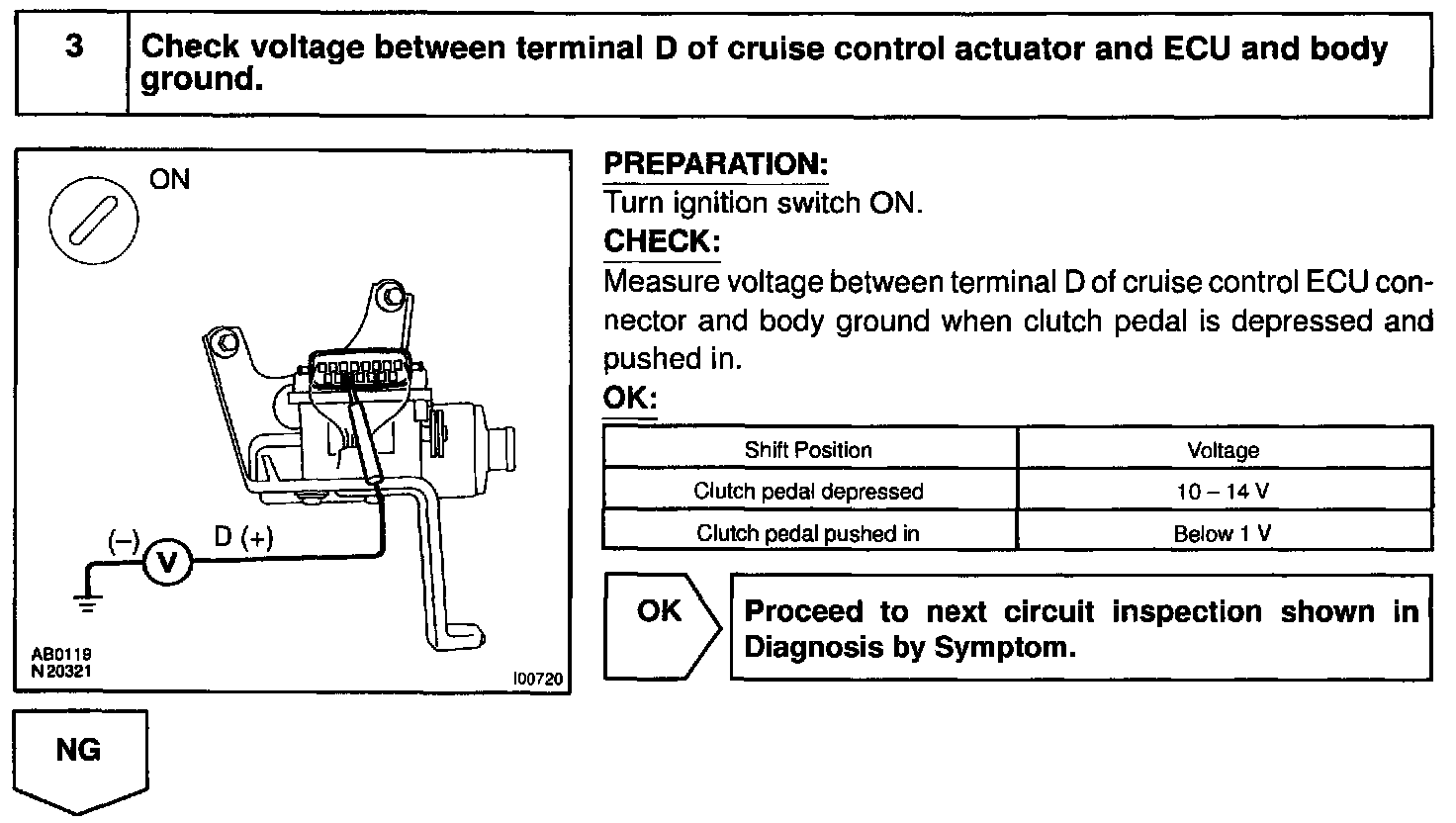

Step 3:

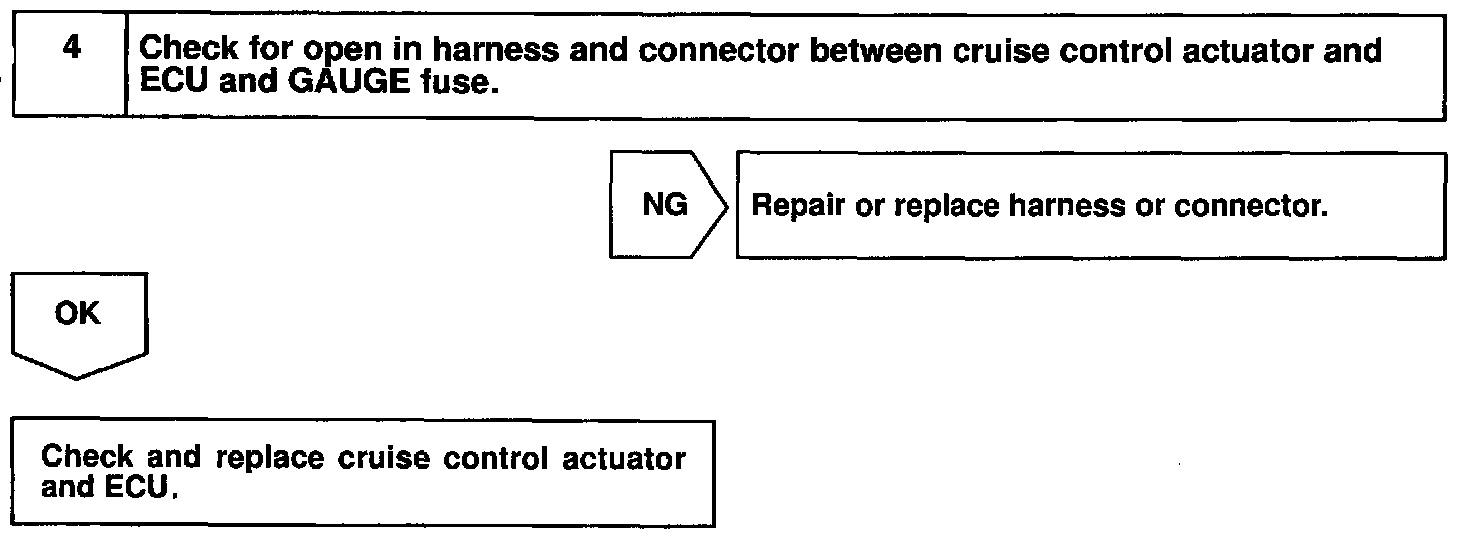

Step 4:
INSPECTION PROCEDURE
