Cabin Temperature Sensor / Switch: Service and Repair

ROOM TEMPERATURE SENSOR REMOVAL (Automatic A/C)

REMOVAL

1. REMOVE LOWER FINISH PANEL LH

2. REMOVE ROOM TEMPERATURE SENSOR

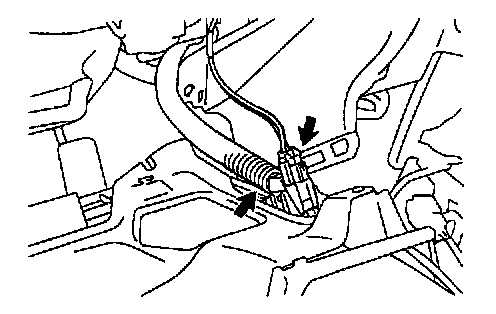

a. Disconnect the connector and aspirator hose.
b. Pull out the sensor from lower finish panel.

INSTALLATION

1. INSTALL ROOM TEMPERATURE SENSOR
a. Install the sensor to lower finish panel.

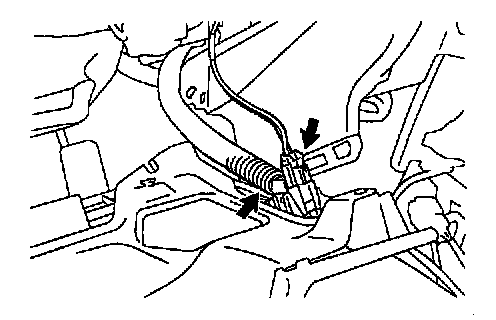

b. Connect the connector and aspirator hose.

2. INSTALL LOWER FINISH PANEL LH
