Solar Sensor: Service and Repair

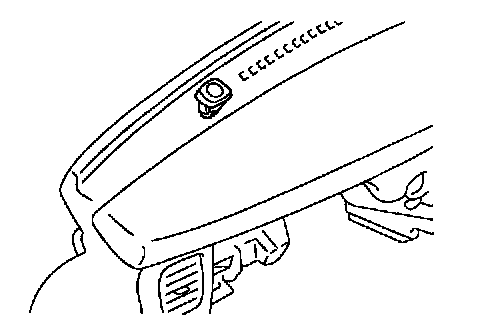

REMOVALREMOVE SOLAR SENSORUsing a screwdriver, pull out the sensor with the holder, then disconnect the connector.
HINT: Tape the screwdriver tip before use.

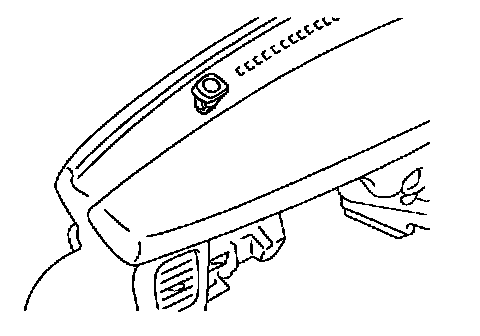

INSTALLATIONINSTALL SOLAR SENSOR a.
Install the sensor to the holder.
b.
Install the sensor with holder to instrument panel, then connect the connector.
HINT: Assemble the holder with the triangular cut-out facing forward.
