Power Window Switch: Testing and Inspection

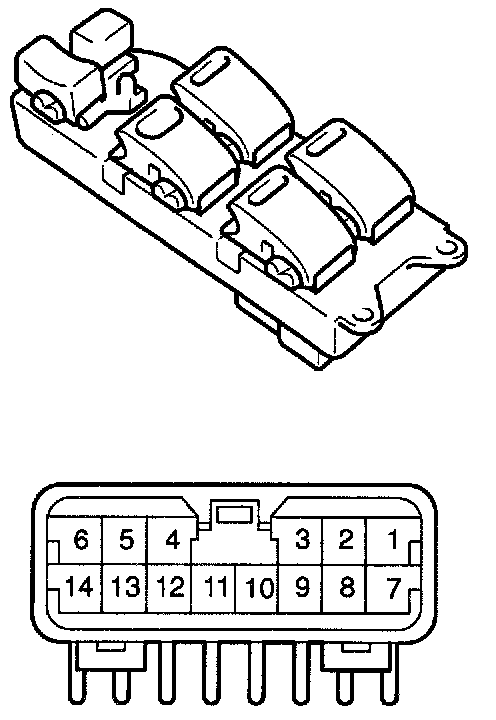

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY
Connect the battery positive (+) lead to terminal 3 and 10, and battery negative (-) lead to terminal 4 and 5.

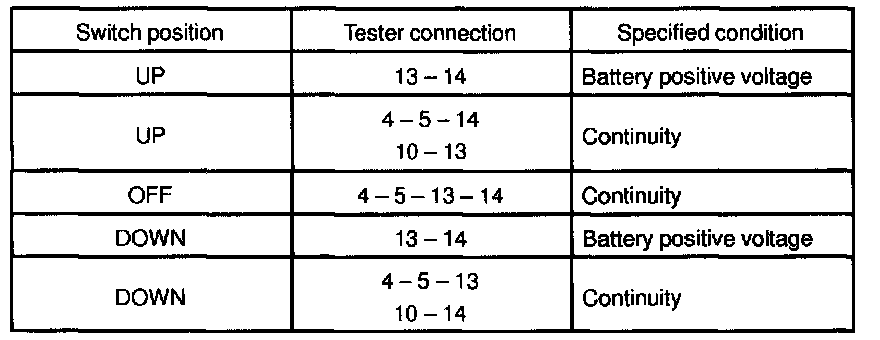

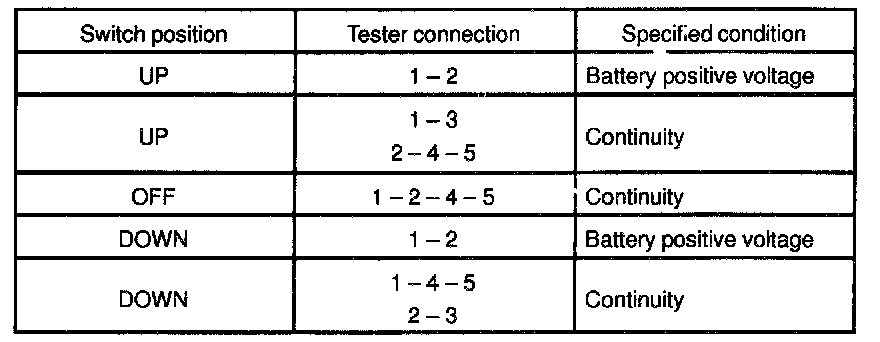

Front Driver's Switch (Window unlock and lock):

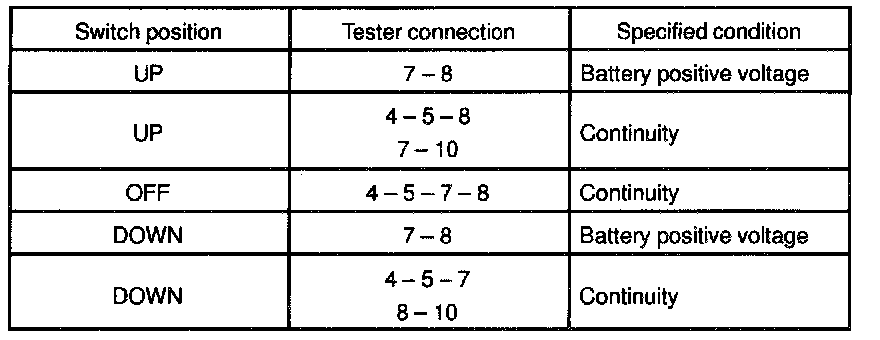

Front Passenger's Switch (Window unlock):

Front Passenger's Switch (Window lock):

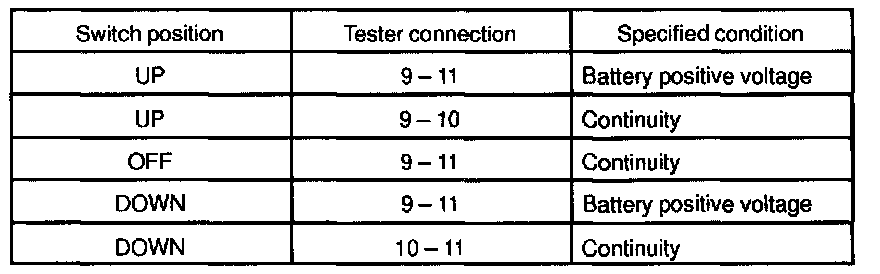

Rear Left Switch (Window unlock):

Rear Left Switch (Window lock):

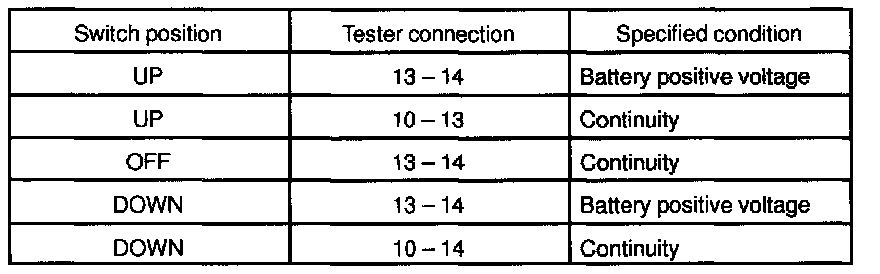

Rear Right Switch (Window unlock):

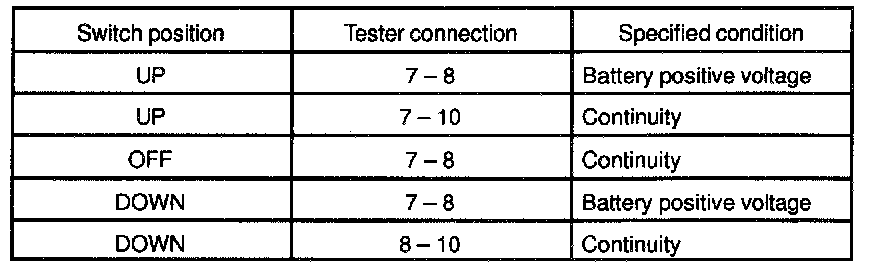

Rear Right Switch (Window lock):

If continuity and voltage is not as specified, replace the master switch.

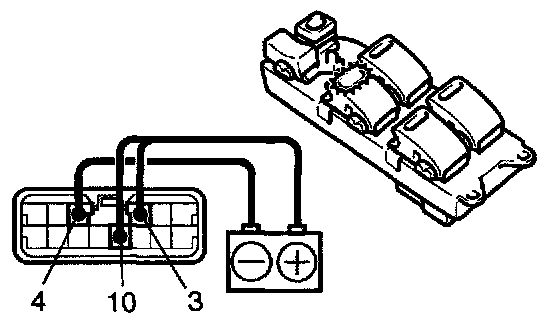

INSPECT POWER WINDOW MASTER SWITCH ILLUMINATION
Connect the positive (+) lead from the battery to terminal 3 and 10, and the negative (-) lead to terminal 4, and check that all the illuminations light up.
If operation is not as specified, replace the master switch.

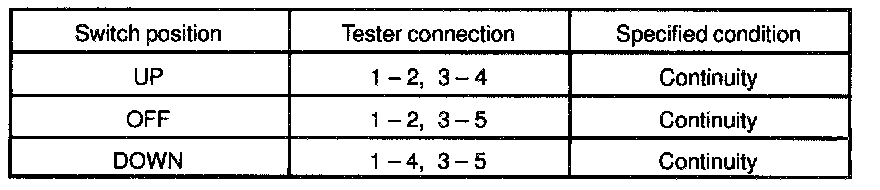

INSPECT POWER WINDOW SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

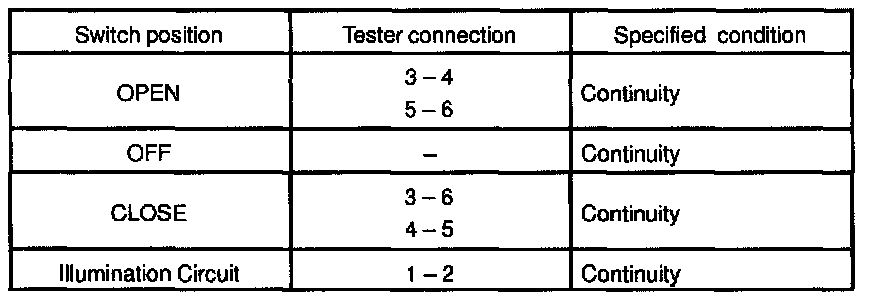

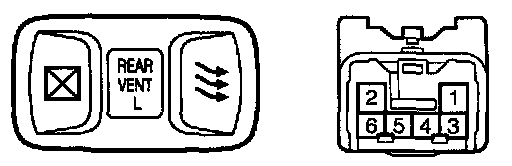

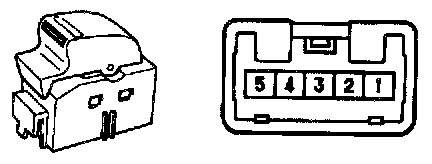

INSPECT POWER QUARTER WINDOW SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
